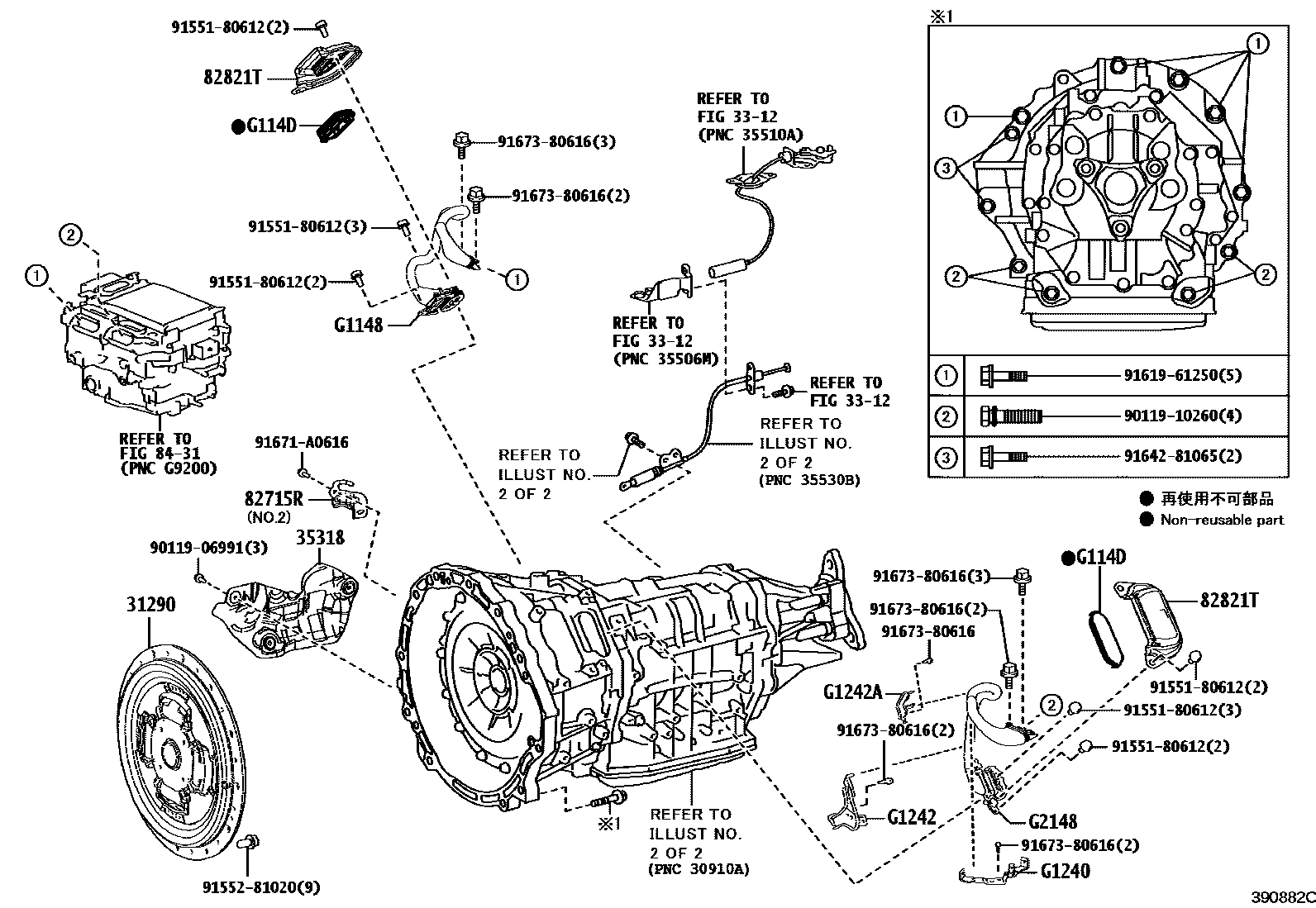

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-30010iGWZ100202305

3312

35318INSULATOR, TRANSMISSION OIL PUMP

main35318-11010iGWZ100202305

82715RBRACKET, WIRING HARNESS CLAMP, NO.1

main82715-11010iGWZ100202305

main82715-11020iGWZ100202305

82821TCOVER, CONNECTOR

main82821-11010iGWZ100202305

8431

G1148CABLE, MOTOR

mainG114811010iGWZ100202305

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010iGWZ100202305

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124011010iGWZ100202305

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211010iGWZ100202305

G1242ABRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211020iGWZ100202305

G2148CABLE, GENERATOR

mainG214811010iGWZ100202305

9011906991

main90119-06991

9011910260

main90119-10260

9155180612

main91551-80612

9155281020

main91552-81020

9161961250

main91619-61250

9164281065

main91642-81065

91671A0616

main91671-A0616

9167380616

main91673-80616

20 parts on this diagram · 2 diagrams in section
