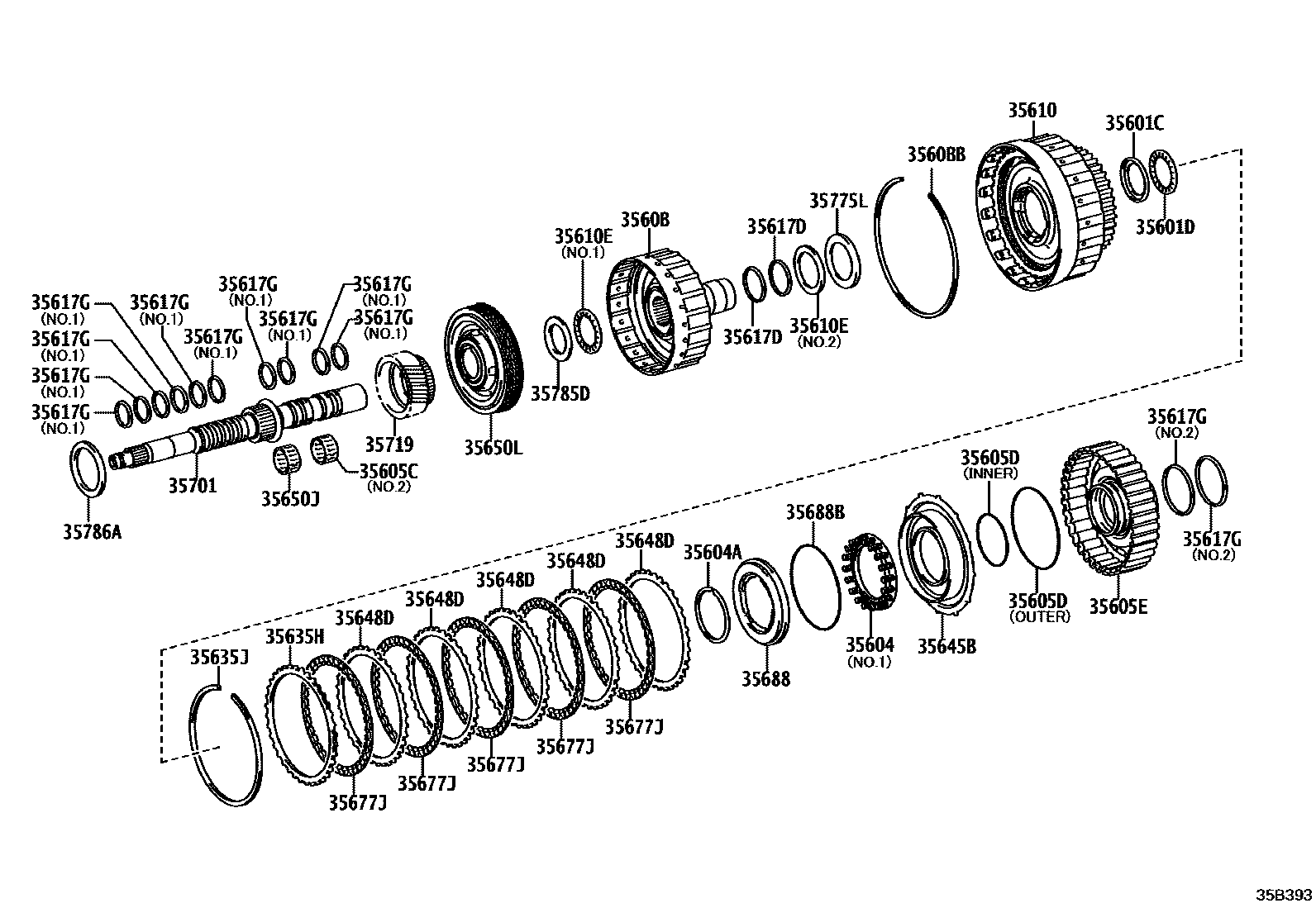

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601CRACE, THRUST BEARING (FOR FRONT CLUTCH DRUM)
35601DBEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM)
35604ARING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON)
35605EDRUM SUB-ASSY, C-3
3560BDRUM SUB-ASSY, C-2
3560BBRING, HOLE SNAP(FOR C-2 DRUM)
35610CLUTCH ASSY, FRONT MULTIPLE DISC
35610EBEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DISC)
35617DRING, CLUTCH DRUM OIL SEAL
35617GRING, CLUTCH DRUM OIL SEAL
35635FLANGE, FORWARD CLUTCH
35635HFLANGE, CLUTCH
35635JRING, HOLE SNAP(FOR C-3 CLUTCH FLANGE)
35645BPISTON, C-3 CLUTCH
35648DPLATE, CLUTCH, NO.3
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
35650LCLUTCH ASSY, C-2
35677JDISC, CLUTCH, NO.3
35688BALANCER, CLUTCH, NO.3
35688BRING, O (FOR CLUTCH BALANCER NO.3)
35701SHAFT SUB-ASSY, INPUT
35719GEAR, PLANETARY SUN
35775LRACE, THRUST BEARING, NO.5
35785DRACE, THRUST BEARING, NO.4
35786ARACE, THRUST BEARING, NO.1
28 parts on this diagram · 2 diagrams in section
