CRANKSHAFT & PISTON

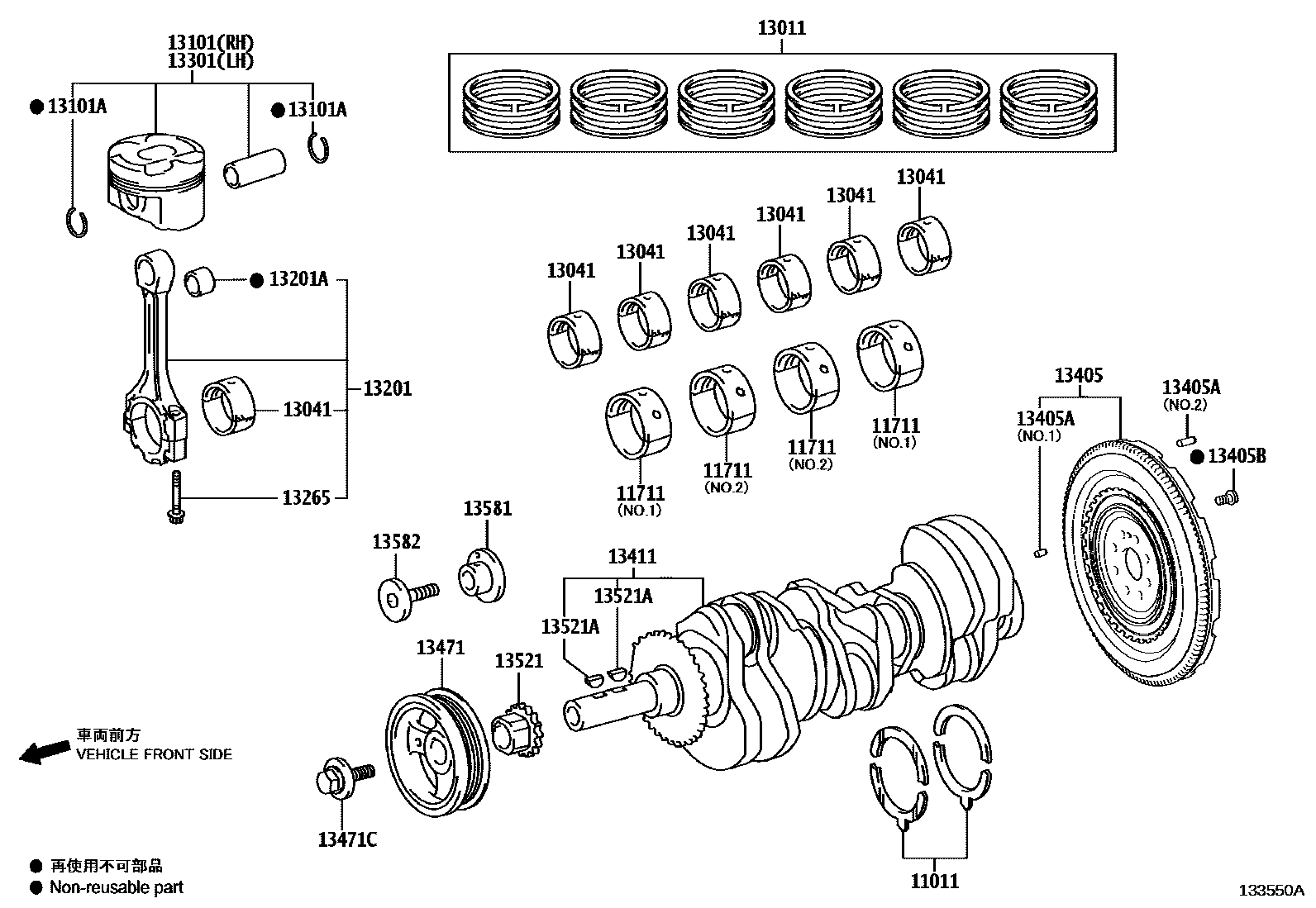

Parts diagram

11011WASHER SET, CRANKSHAFT THRUST

main11011-31080i202305

main11011-38050i202305

11711BEARING, CRANKSHAFT

main11071-31060-A1i202305

main11071-31060-A2i202305

main11071-31060-B2i202305

main11071-31060-B3i202305

main11071-31060-C3i202305

main11071-31060-C4i202305

main11071-31060-D4i202305

main11071-31060-D5i202305

main11071-31060-E5i202305

main11071-38020-C4i202305

main11071-38020-D4i202305

main11071-38020-D5i202305

main11071-38020-E5i202305

main11071-38020-E6i202305

main11071-38020-F6i202305

main11071-38020-F7i202305

main11071-38020-G7i202305

main11071-38020-G8i202305

main11071-38020-H8i202305

main11071-38030-D4i202309-202409

main11071-38030-D5i202309-202409

main11071-38030-E5i202309-202409

main11071-38030-E6i202309-202409

main11071-38030-F6i202309-202409

main11072-38020-D5i202305

main11072-38020-E5i202305

main11072-38020-E6i202305

main11072-38020-F6i202305

main11072-38020-F7i202305

main11072-38020-G7i202305

main11072-38020-G8i202305

main11072-38020-H8i202305

main11072-38020-H9i202305

main11072-38020-K9i202305

main11072-38040-E6i202309-202409

main11072-38040-F6i202309-202409

main11072-38040-F7i202309-202409

main11072-38040-G7i202309-202409

main11072-38040-G8i202309-202409

main11701-31100-A1i202305

main11701-31100-A2i202305

main11701-31100-B2i202305

main11701-31100-B3i202305

main11701-31100-C3i202305

main11701-31100-C4i202305

main11701-31100-D4i202305

main11701-31100-D5i202305

main11701-31100-E5i202305

13011RING SET, PISTON

main13011-31290i202305

main13011-38150i202305

13041BEARING, CONNECTING ROD

main13041-31100-01i202305

MARK 1

main13041-31100-02i202305

MARK 2

main13041-31100-03i202305

MARK 3

main13041-31100-04i202305

MARK 4

main13041-38100-02i202305

main13041-38100-03i202305

main13041-38100-04i202305

main13041-38100-05i202305

main13041-38100-06i202305

main13041-38100-07i202305

13101PISTON SUB-ASSY, W/PIN

main13101-31181-A0i202305

main13101-31181-B0i202305

main13101-31181-C0i202305

main13101-38151i202305

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i202305

13201ROD SUB-ASSY, CONNECTING

main13201-38050i202305

main13201-39285-A0i202305

MARK A

main13201-39285-B0i202305

MARK B

main13201-39285-C0i202305

MARK C

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73144i202305

13265BOLT, CONNECTING ROD

main13265-28020i202305

main13265-31020i202305

13301PISTON SUB-ASSY, W/PIN, LH

main13301-31111-A0i202305

main13301-31111-B0i202305

main13301-31111-C0i202305

main13301-38031i202305

13405FLYWHEEL SUB-ASSY

main13405-31150i202305

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-06027i202305

main90250-08054i202305

13405BBOLT, FLYWHEEL SETTING

main90105-10048i202305

13411CRANKSHAFT

main13401-31070i202307

main13401-31080i202305-202307

main13401-31080i202307

main13401-38040i202305

13471PULLEY, CRANKSHAFT

main13470-31080i202305

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202305

main90119-18003i202305

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-31070i202305

main13521-38030i202305

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516i202305

13581SHAFT, IDLE GEAR, NO.1

main13581-31030i202305

13582SHAFT, IDLE GEAR, NO.2

main13582-31031i202305

20 parts on this diagram · 3 diagrams in section
