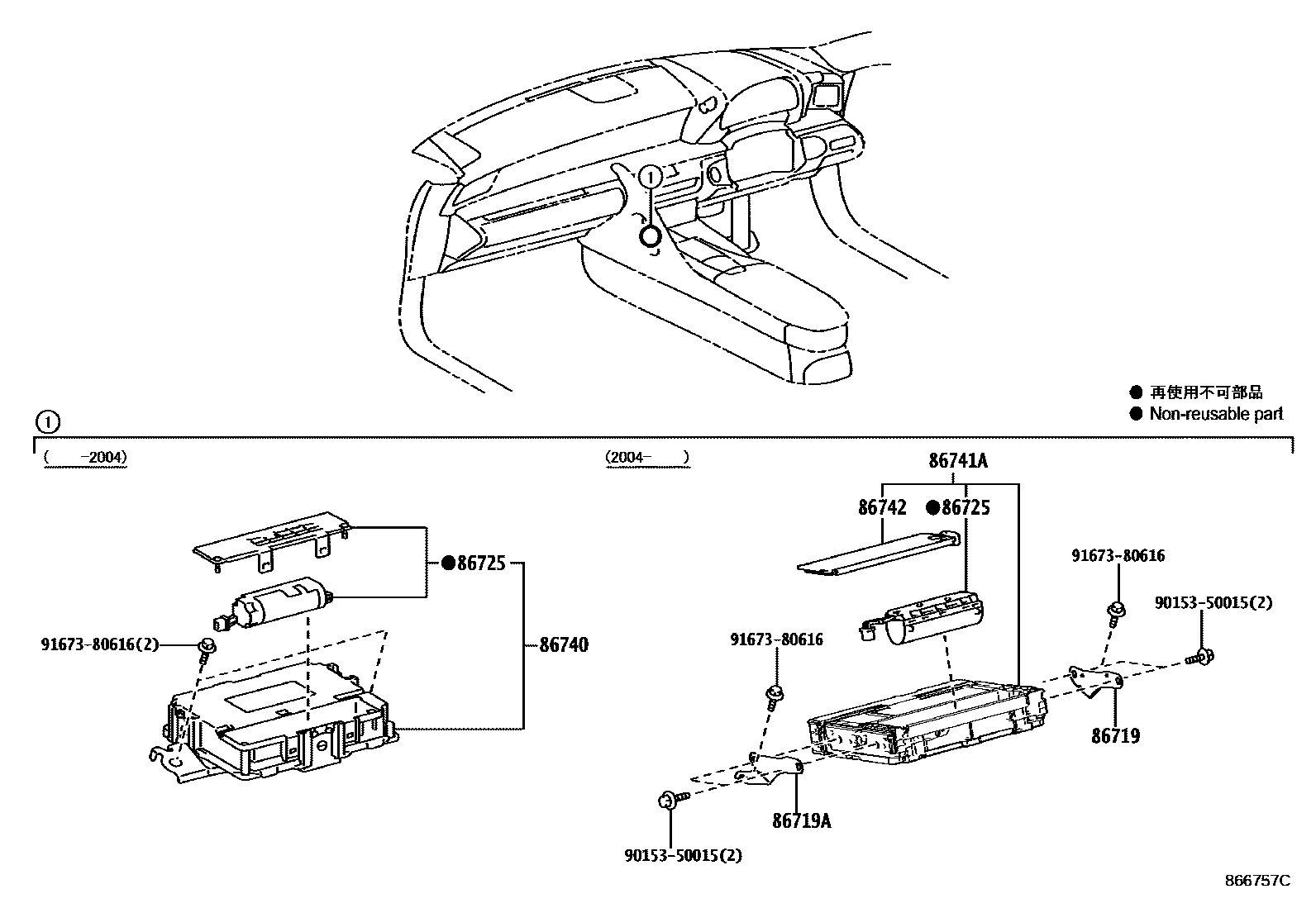

TELEPHONE & MAYDAY

86719BRACKET, TELEPHONE

main86719-11060iGWZ100,URZ100202004

86719ABRACKET, TELEPHONE NO.1

main86719-11070iGWZ100,URZ100202004

86725BATTERY, MOBILEPHONE

main86725-26010iGWZ100,URZ100202004

main86725-48010iGWZ100,URZ100201701-202004

86740TRANSCEIVER ASSY, TELEPHONE

main86740-11060iGWZ100,URZ100201701-202004

86741ATRANSCEIVER, TELEMATICS

main86741-11041iGWZ100,URZ100202004-202106

sub86741-11042

main86741-11042iGWZ100,URZ100202107

86742COVER, TRANSCEIVER

main86742-26010iGWZ100,URZ100202004

9015350015

main90153-50015

9167380616

main91673-80616

8 parts on this diagram · 1 diagram in section
