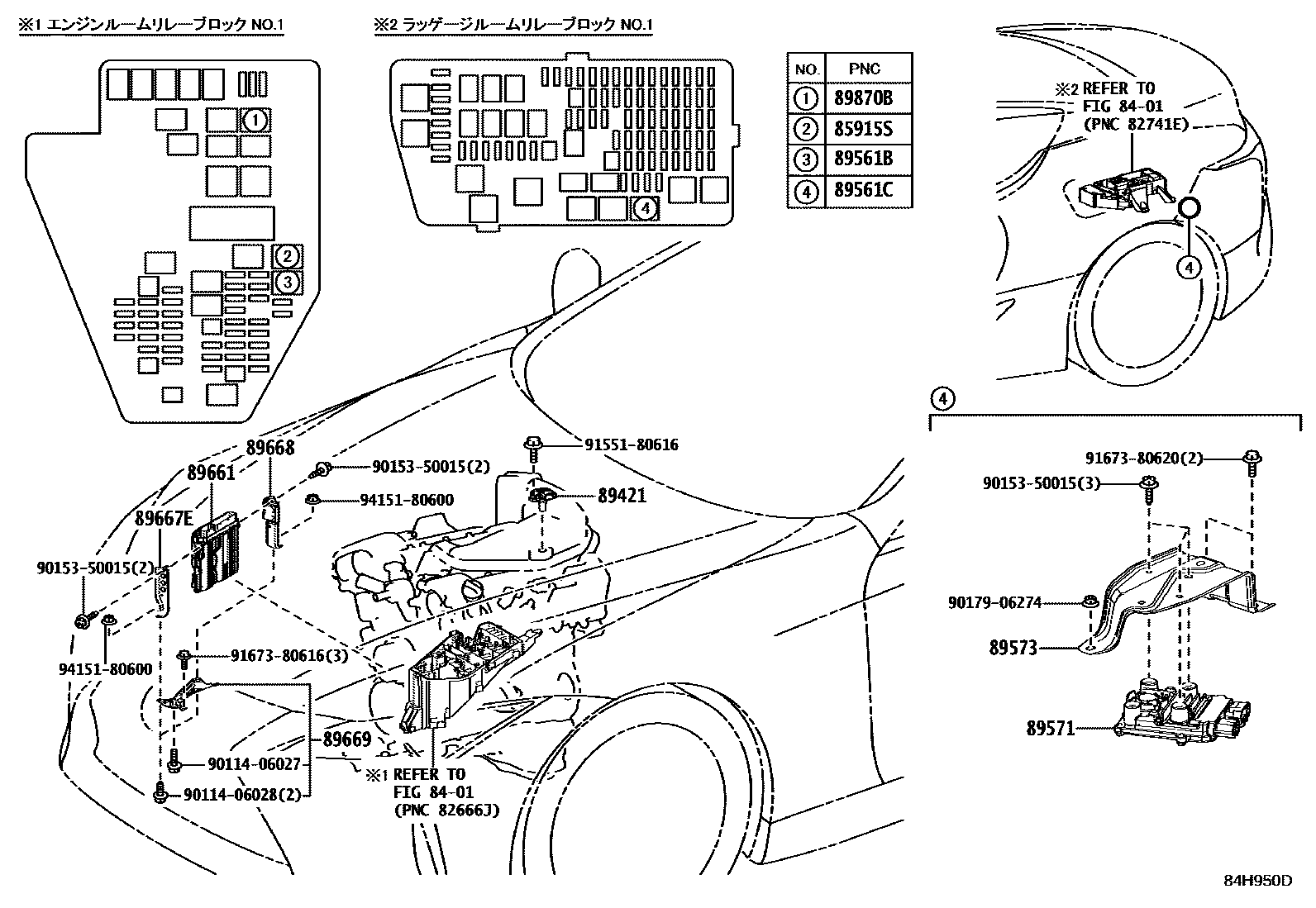

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGWZ100,URZ100201701

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iGWZ100201701

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90987-02027iGWZ100,URZ100201701

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90987-02027iGWZ100,URZ100201701

89571COMPUTER, FUEL PUMP CONTROL

main89571-58010iGWZ100,URZ100201701

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-11010iGWZ100,URZ100201701

89661COMPUTER, ENGINE CONTROL

main89661-11020iGWZ100201809-202004

main89661-11070iURZ100201703-201808

main89661-11120iGWZ100201701-201809

main89661-11210iURZ100201809-201906

main89661-11440iURZ100201906-202004

main89661-11510iURZ100202004

main89661-11570iGWZ100202004

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-11020iURZ100201703

main89667-11030iGWZ100201701

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-11020iURZ100201703

main89668-11030iGWZ100201701

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-11020iURZ100201703

main89669-11030iGWZ100201701

89870BRELAY, ELECTRONIC DRIVER UNIT

main90987-02027iGWZ100201701

9011406027

main90114-06027

9011406028

main90114-06028

9015350015

main90153-50015

9017906274

main90179-06274

9155180616

main91551-80616

9167380616

main91673-80616

9167380620

main91673-80620

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section
