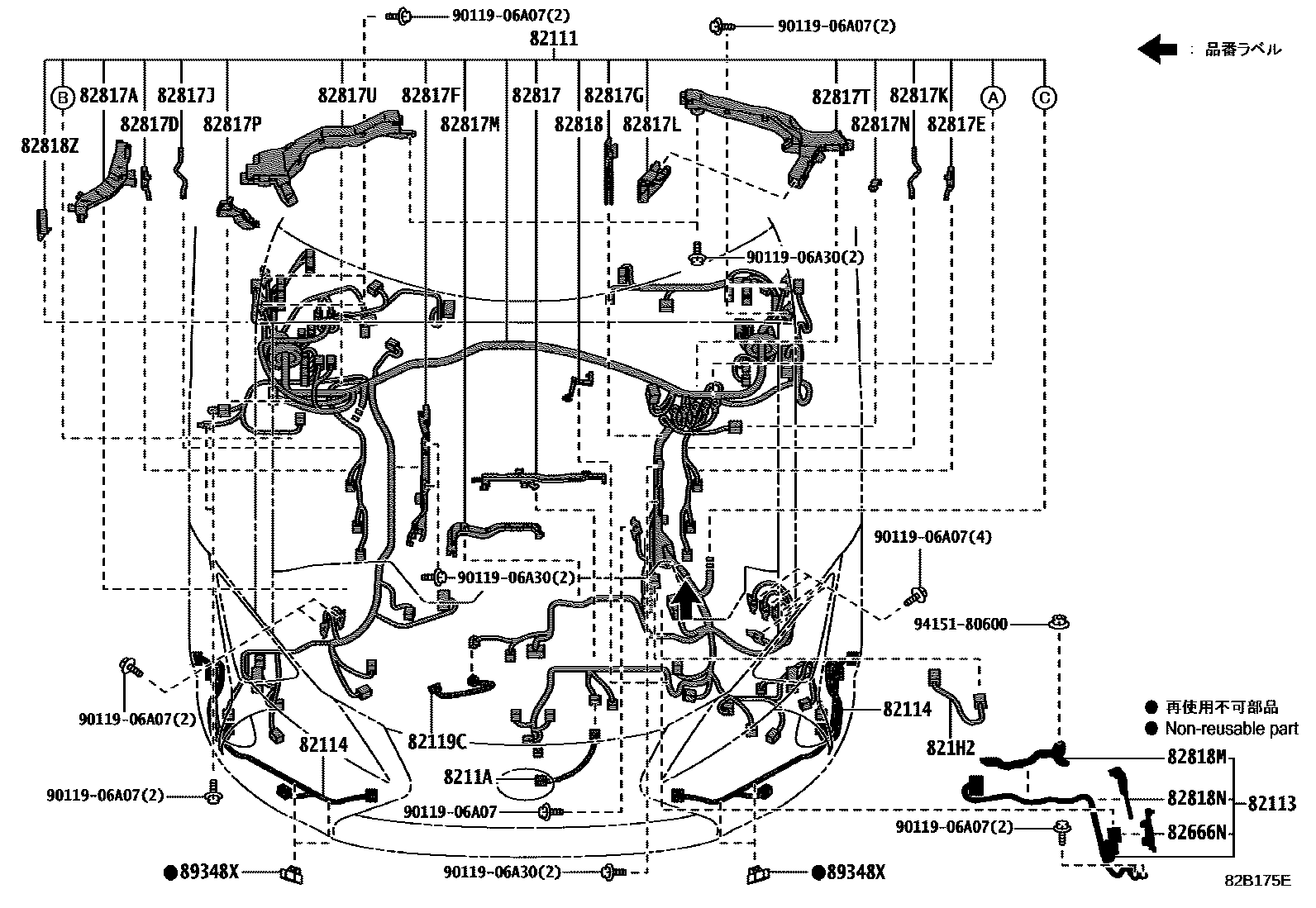

WIRING & CLAMP

0001 1�������� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1����� 0006 1����� 0007 1������������ 0008 1��� 0009 1��������� 0010 1���&��� 0011 1������ NO.4 0012 1��������� 0013 1��� 0014 1�����&������ 0015 1�����&������ 0016 1�����&������ 0017 1�����&������ 0018 1���� 1/2 0019 1���� 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-11140iURZ100¥198,000201703-201707

main82111-11141iURZ100¥198,000201707-202004

main82111-11142iURZ100¥165,000202004

main82111-11220iGWZ100¥255,000201701-201707

main82111-11221iGWZ100¥255,000201707-201906

main82111-11222iGWZ100¥255,000201906-202004

main82111-11223iGWZ100¥212,000202004

82113WIRE, ENGINE ROOM, NO.3

main82113-50130iGWZ100,URZ100¥7,700201701

82114WIRE, ENGINE ROOM, NO.4

main82114-11020iGWZ100,URZ100¥1,430201701

82119CWIRE, ENGINE ROOM, NO.5

main82119-11040iGWZ100¥900201701

8211AWIRE, ENGINE ROOM, NO.6

main8211A-11010iGWZ100,URZ100¥810201701

821H2WIRE, HV AIR CONDITIONER

main821H2-50040iGWZ100¥4,960201701-201801

sub821H2-50041¥3,750

main821H2-50041iGWZ100¥3,750201802

82666NHOLDER, CONNECTOR NO.10

main82666-50A20iGWZ100,URZ100¥1,700201701

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-11670iGWZ100,URZ100¥610201701

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-11740iGWZ100,URZ100¥1,010201701

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-50P80iGWZ100,URZ100¥400201701

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-50P90iGWZ100,URZ100¥440201701

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-50Q10iGWZ100,URZ100¥2,120201701

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-50Q50iGWZ100¥970201701

main82817-50Q60iURZ100¥2,440201703

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-50Z70iGWZ100,URZ100¥530201701

82817KPROTECTOR, WIRING HARNESS, NO.10

main82817-50Z80iGWZ100,URZ100¥530201701

82817LPROTECTOR, WIRING HARNESS, NO.11

main82817-50Q30iGWZ100¥970201701

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-50Z60iGWZ100¥1,160201701

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-5AA60iGWZ100¥160201701

82817PPROTECTOR, WIRING HARNESS, NO.14

main82817-5AD70iGWZ100,URZ100¥630201701

82817TPROTECTOR, WIRING HARNESS, NO.15

main82817-50M50iURZ100¥520201703

main82817-50N10iGWZ100¥4,840201701

82817UPROTECTOR, WIRING HARNESS, NO.16

main82817-50N20iGWZ100¥5,400201701

main82817-50N21iURZ100¥4,860201703

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-11700iGWZ100,URZ100¥330201701

82818MPROTECTOR, WIRING HARNESS, NO.13

main82817-50P50iGWZ100,URZ100¥970201701

82818NPROTECTOR, WIRING HARNESS, NO.14

main82817-5AE30iGWZ100,URZ100¥390201701

82818ZPROTECTOR, WIRING HARNESS, NO.22

main82817-12860iGWZ100,URZ100¥80201701

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iGWZ100,URZ100¥260201701

9011906A07

main90119-06A07¥60

9011906A30

main90119-06A30¥80

9415180600

main94151-80600¥60

29 parts on this diagram · 19 diagrams in section
