REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
52565ERETAINER, REAR BUMPER, LOWER RH
52566DRETAINER, REAR BUMPER, LOWER LH
52581KPROTECTOR, REAR BUMPER, RH
52582EPROTECTOR, REAR BUMPER, LH
58456GBRACKET, REAR GARNISH, NO.1 RH
58457LBRACKET, REAR GARNISH, NO.1 LH
6101
75137CCOVER, COMBINATION REAR LAMP, RH
75138BCOVER, COMBINATION REAR LAMP, LH
81496GUIDE, REAR COMBINATION LAMP
main81496-52020
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81550LAMP ASSY, REAR COMBINATION, RH
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81556RIM, REAR COMBINATION LAMP, RH
main81556-11160
81558LPROTECTOR, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81566RIM, REAR COMBINATION LAMP, LH
main81566-11160
81568JPROTECTOR, REAR COMBINATION LAMP, LH
8401
8155914480MOULDING, REAR COMBINATION LAMP, RH
main81559-14480
9015960621
main90159-60621
9017605023
main90176-05023
9018906242
main90189-06242
9046709206
main90467-09206
9356053010
main93560-53010

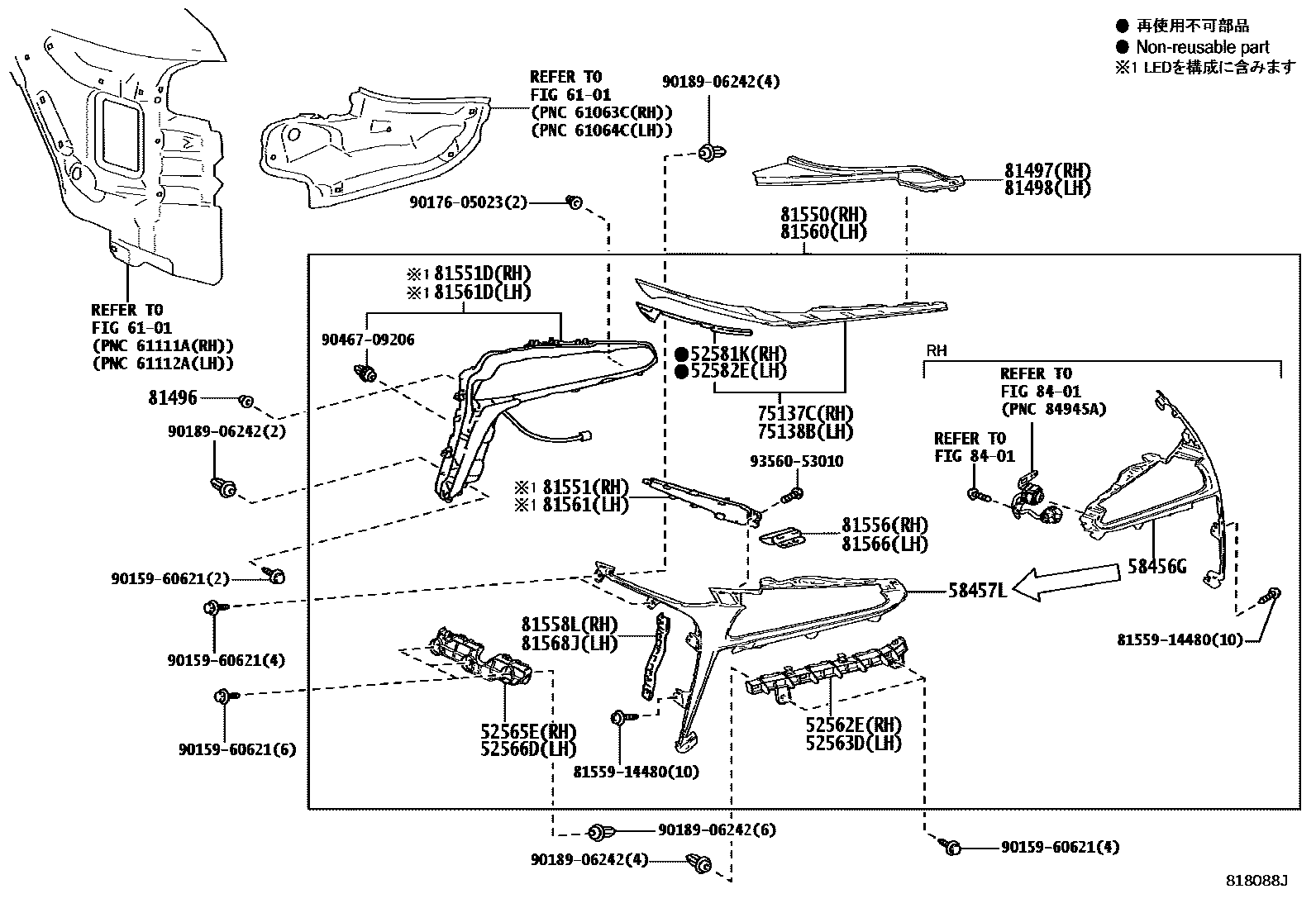

31 parts on this diagram · 1 diagram in section
