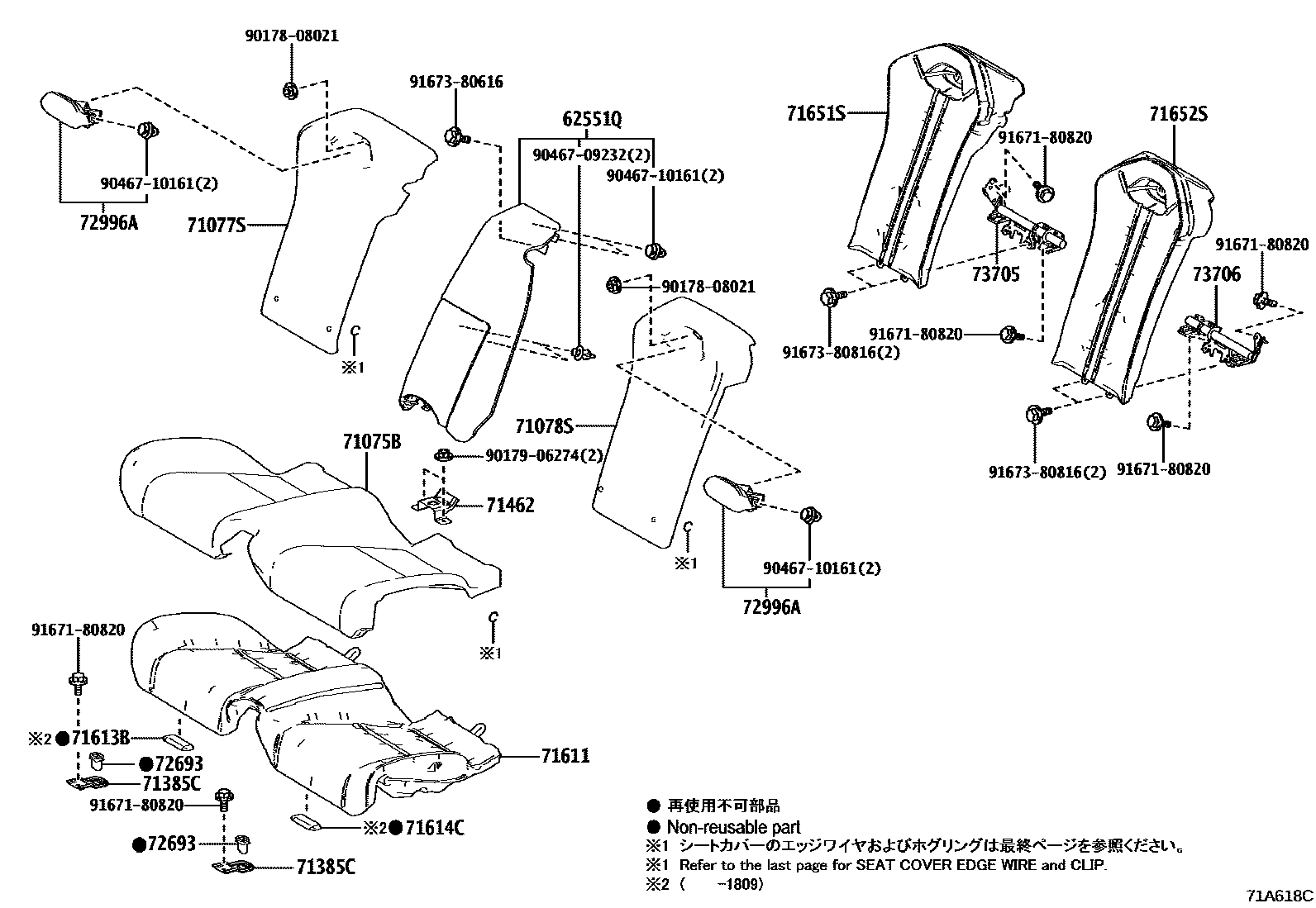

REAR SEAT & SEAT TRACK
62551QGARNISH, REAR SEAT SIDE
BLACK,TRIM2#,3#
OCHRE,TRIM4#
OCHRE,TRIM40
KURO KOHAKU,TRIM41
BLUE,TRIM8#
BLACK,TRIM2#,3#,42
OCHER,TRIM40
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK,TRIM2#
DK.ROSE,TRIM3#
BLACK,TRIM2#
DK.ROSE,TRIM3#
OCHRE,TRIM40
OCHRE,TRIM4#
OCHER,TRIM4#
KUROKOHAKU,TRIM41
BLUE,TRIM8#
BLUE,TRIM8#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM2#
DK.ROSE,TRIM3#
LT.OCHRE,TRIM4#
LT.OCHRE,TRIM40
SADDLE TAN,TRIM41
LT.OCHRE,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM2#
DK.ROSE,TRIM3#
LT.OCHRE,TRIM4#
LT.OCHRE,TRIM40
SADDLE TAN,TRIM41
LT.OCHRE,TRIM4#
71385CBRACKET, REAR SEAT CUSHION HOLDER
71462SPRING, REAR SEAT CUSHION, NO.2
71613BPAD, REAR SEAT CUSHION, RH
71614CPAD, REAR SEAT CUSHION, LH
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
72693HOOK, REAR SEAT CUSHION LOCK
72996ACOVER, REAR SEATBACK
BLACK,TRIM20,21,22,3#,42
BLACK,TRIM2#,3#,42
DK. ROSE,TRIM23
OCHRE,TRIM40
KUROKOHAKU,TRIM41
ORANGE,TRIM42
BLUE,TRIM8#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
9017808021
main90178-08021
9017906274
main90179-06274
9046709232
main90467-09232
9046710161
main90467-10161
9167180820
main91671-80820
9167380616
main91673-80616
9167380816
main91673-80816
22 parts on this diagram · 2 diagrams in section
