MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58190BREST ASSY, FRONT FLOOR FOOT
58192GPANEL, FOOTREST, NO.2
58299GNET, BAGGAGE HOLDER
BLACK,TRIM2#,3#,42
BLACK,TRIM2#,3#,41
OCHRE,TRIM40
BLUE,TRIM8#
58441ECOVER, BATTERY SERVICE HOLE
BLACK,TRIM2#,3#,41,42
OCHRE,TRIM40
BLUE,TRIM8#
58441FCOVER, BATTERY SERVICE HOLE
BLACK,TRIM2#,3#,41,42
OCHRE,TRIM40
BLUE,TRIM8#
58510GCARPET ASSY, FLOOR, FRONT RH
BLACK,TRIM2#,3#,41
OCHRE,TRIM40
BLUE,TRIM8#
BLACK,TRIM2#,3#,41
OCHRE,TRIM40
BLUE,TRIM8#
BLACK,TRIM2#,3#,42
OCHRE,TRIM40
BLACK,TRIM2#,3#,42
OCHRE,TRIM40
58520CCLIP(FOR FRONT FLOOR CARPET)
58520JCARPET ASSY, FLOOR, FRONT LH
BLACK,TRIM2#,3#,41
OCHRE,TRIM40
BLUE,TRIM8#
BLACK,TRIM2#,3#,41
OCHRE,TRIM40
BLUE,TRIM8#
BLACK,TRIM2#,3#,42
OCHER,TRIM40
BLACK,TRIM2#,3#,42
OCHER,TRIM40
58530BCLIP(FOR FRONT FLOOR CARPET)
LT.GRAY
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#,3#,41,42
OCHRE,TRIM40
BLUE,TRIM8#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
59999CLAMP(FOR FLOOR MAT)
62135CRETAINER, COWL SIDE CARPET
62533HBRACKET, SIDE TRIM, NO.1
6401
8201
9016840061
main90168-40061
9046705172
main90467-05172
9046709229
main90467-09229
9046710217
main90467-10217
9167380620
main91673-80620

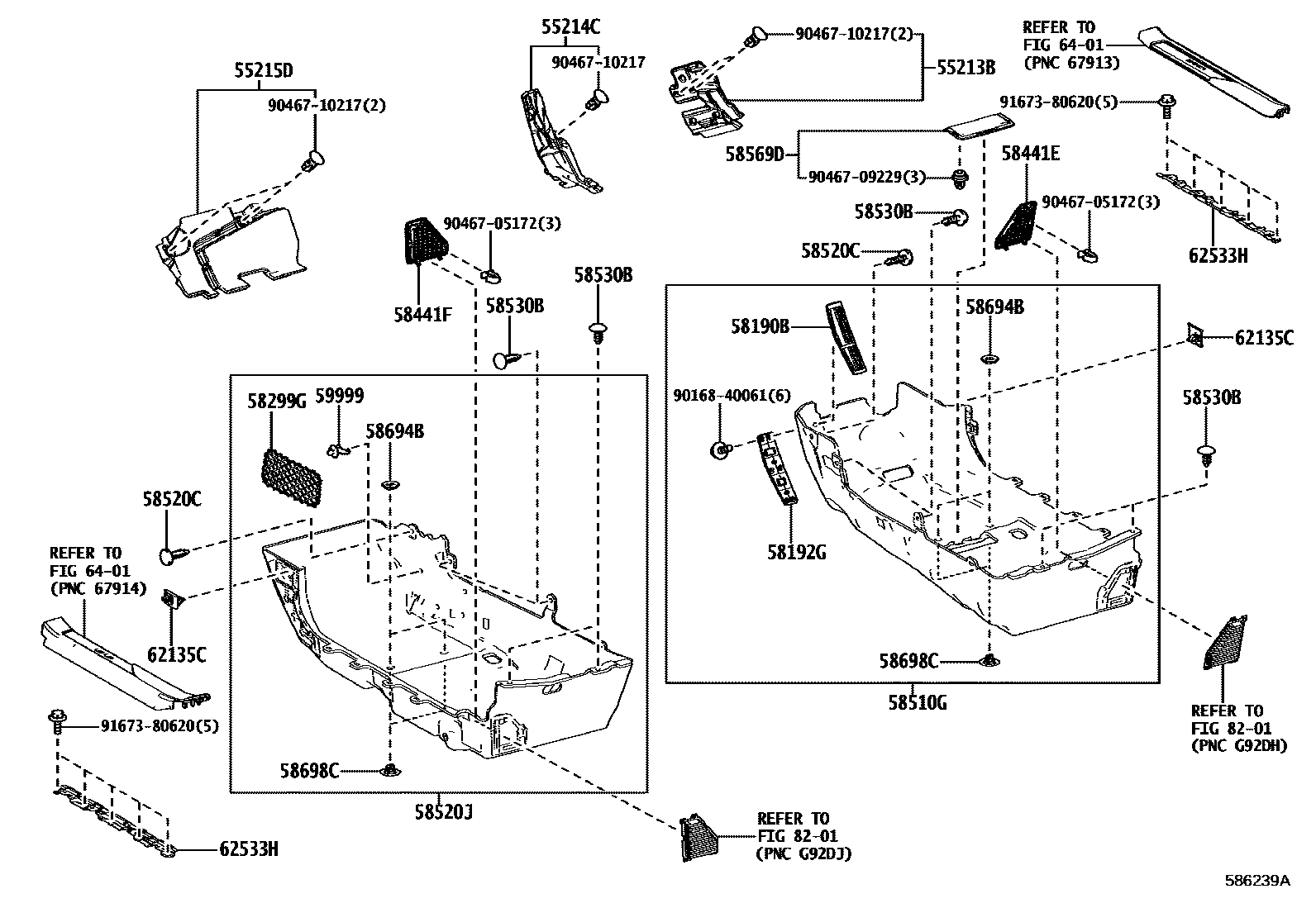

25 parts on this diagram · 3 diagrams in section
