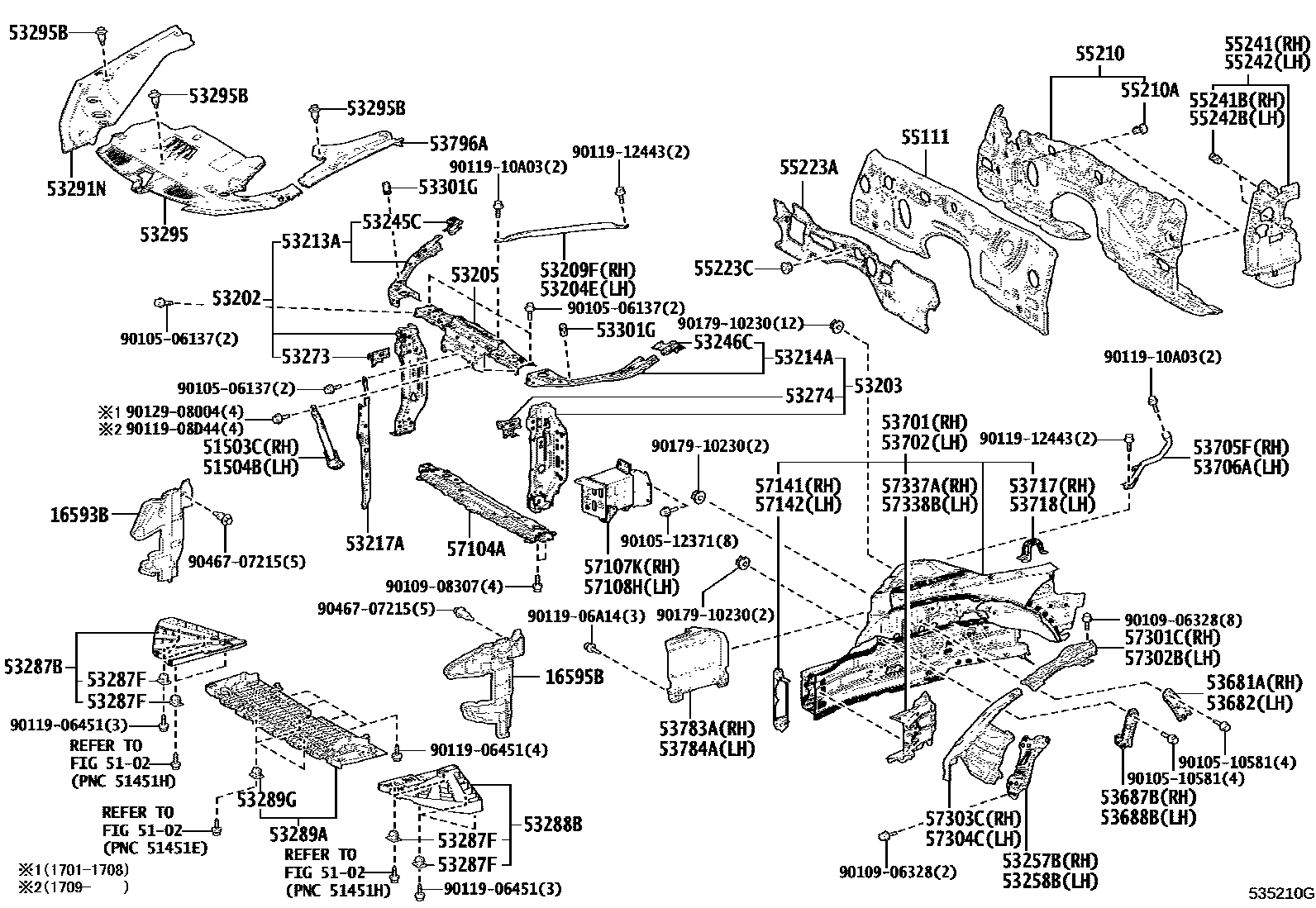

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-31010i8GRFXS,2URGSE..GWZ100,URZ100201701

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-31010i8GRFXS,2URGSE..GWZ100,URZ100201701

5102

51503CBRACE SUB-ASSY, LOWER ARM BRACKET, RH

main51503-11010iURZ100201701-202107

sub51503-11020

main51503-11020iURZ100201909-202009

51504BBRACE SUB-ASSY, LOWER ARM BRACKET, LH

main51504-11010iGWZ100,URZ100201701

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-11900iGWZ100,URZ100201701

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-11900iGWZ100,URZ100201701

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-11020iGWZ100,URZ100201701

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-11900iGWZ100,URZ100201701-201905

sub53205-11901

main53205-11901iGWZ100,URZ100201905-201909

sub53205-11902

sub53525-11020

sub86520-30670

main53205-11902iGWZ100,URZ100201909-202205

sub53205-11903

main53205-11903iGWZ100,URZ100202206

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-11020iGWZ100,URZ100201701

53213ASUPPORT, RADIATOR, UPPER RH

main53213-11900iGWZ100,URZ100201701

53214ASUPPORT, RADIATOR, UPPER LH

main53214-11900iGWZ100,URZ100201701

53217ABRACE, HOOD LOCK SUPPORT

main53217-11010iGWZ100,URZ100201701-201905

sub53217-11011

main53217-11011iGWZ100,URZ100201906

53245CBRACKET, HEADLAMP MOUNTING, UPPER RH

main53245-11010iGWZ100,URZ100201701

53246CBRACKET, HEADLAMP MOUNTING, UPPER LH

main53246-11010iGWZ100,URZ100201701

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-11010iGWZ100,URZ100201701

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-11010iGWZ100,URZ100201701

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-11010iGWZ100,URZ100201701

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-11010iGWZ100,URZ100201701

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-11010iGWZ100,URZ100201701

53287FGROMMET, NO.1

main90189-06237iGWZ100,URZ100201701

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-11010iGWZ100,URZ100201701

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-11010iGWZ100,URZ100201701

53289GGROMMET, NO.2

main90189-06237iGWZ100,URZ100201701

53291NSEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-11020iGWZ100,URZ100201701

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-11010iURZ100201703

main53295-11020iGWZ100201701

53295BCLIP(FOR RADIATOR LOWER AIR DEFLECTOR)

main90467-07217iGWZ100201701

53301GCUSHION, HOOD BUMPER

main90541-15034iGWZ100,URZ100201701

53681ABRACE, FRONT SUSPENSION UPPER TO COWL, RH

main53681-11010iGWZ100,URZ100201701

53682BRACE, FRONT SUSPENSION UPPER TO COWL, LH

main53682-11010iGWZ100,URZ100201701

53687BBRACE, FRONT SUSPENSION LOWER TO CROSSMEMBER, RH

main53687-11010iGWZ100,URZ100201701

53688BBRACE, FRONT SUSPENSION LOWER TO CROSSMEMBER, LH

main53688-11010iGWZ100,URZ100201701

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-11010iGWZ100,URZ100201701

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-11010iGWZ100,URZ100201701

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-11030iGWZ100201701

main53706-11060iURZ100201703

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53705-11050iURZ100201703

main53706-11030iGWZ100201701

53717PLATE, FENDER APRON, RH

main53717-11010iGWZ100,URZ100201701

53718PLATE, FENDER APRON, LH

main53718-11010iGWZ100,URZ100201701

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-11030iGWZ100201701

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-11020iGWZ100201701

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-11050iGWZ100201701

55111PANEL, DASH

main55111-11020iGWZ100,URZ100201701

55210INSULATOR ASSY, DASH PANEL

main55210-11020iGWZ100,URZ100201701

55210ACLIP

main90467-11122iGWZ100,URZ100201701

55223AINSULATOR, DASH PANEL, OUTER

main55223-11020iGWZ100,URZ100201701

55223CCLIP

main90467-06206-C0iGWZ100,URZ100201701

BLACK

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-11020iGWZ100,URZ100201701

55241BCLIP, FRONT PANEL SIDE SILENCER

main90467-13079iGWZ100,URZ100201701

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-11020iGWZ100,URZ100201701

55242BCLIP, FRONT PANEL SIDE SILENCER

main90467-13079iGWZ100,URZ100201701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-11010iGWZ100,URZ100201701

57107KREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-11010iGWZ100,URZ100201701

57108HREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-11010iGWZ100,URZ100201701-201904

sub57108-11011

main57108-11011iGWZ100,URZ100201905

57141SUPPORT, FRONT BUMPER ARM, RH

main57141-11010iGWZ100,URZ100201701

57142SUPPORT, FRONT BUMPER ARM, RH

main57142-11010iGWZ100,URZ100201701

57301COUTRIGGER SUB-ASSY, NO.1 RH

main57301-11010iGWZ100,URZ100201701

57302BOUTRIGGER SUB-ASSY, NO.1 LH

main57302-11010iGWZ100,URZ100201701

57303COUTRIGGER SUB-ASSY, NO.2 RH

main57303-11010iGWZ100,URZ100201701

57304COUTRIGGER SUB-ASSY, NO.2 LH

main57304-11010iGWZ100,URZ100201701

57337AGUSSET, OUTRIGGER, NO.1 RH

main57337-11010iGWZ100,URZ100201701

57338BGUSSET, OUTRIGGER, NO.1 LH

main57338-11010iGWZ100,URZ100201701

9010506137

main90105-06137

9010510581

main90105-10581

9010512371

main90105-12371

9010906328

main90109-06328

9010908307

main90109-08307

9011906451

main90119-06451

9011906A14

main90119-06A14

9011908D44

main90119-08D44

9011910A03

main90119-10A03

9011912443

main90119-12443

9012908004

main90129-08004

9017910230

main90179-10230

9046707215

main90467-07215

74 parts on this diagram · 2 diagrams in section
