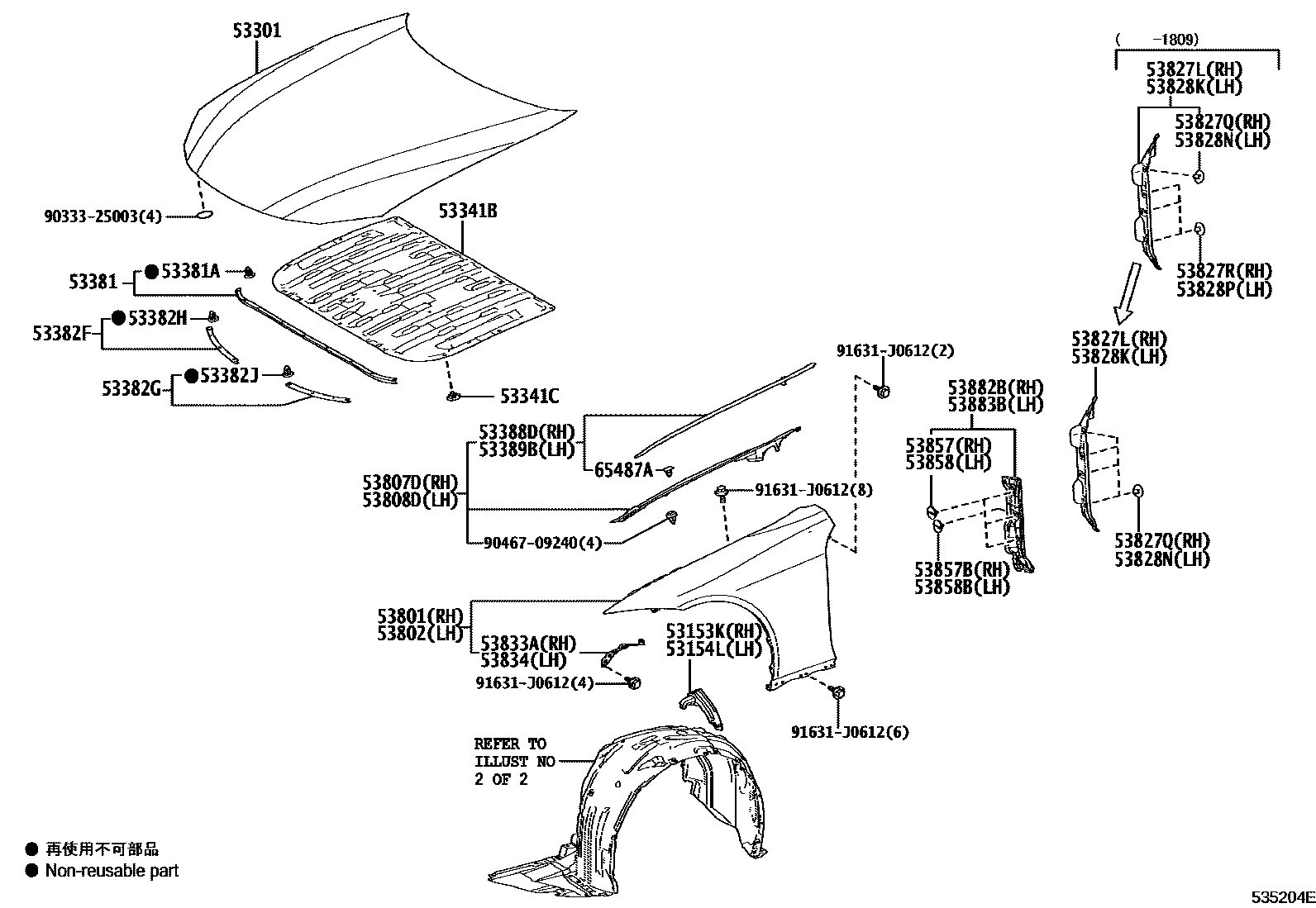

HOOD & FRONT FENDER
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382FSEAL, HOOD TO RADIATOR SUPPORT, RH
53382GSEAL, HOOD TO RADIATOR SUPPORT, LH
53382HCLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382JCLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
BLACK
53827RCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.2
BLACK
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
BLACK
53828PCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.2
BLACK
53833APANEL, FRONT FENDER SIDE, LOWER RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
65487ACLIP, CORNER PROTECTOR
9033325003
main90333-25003
9046709240
main90467-09240
91631J0612
main91631-J0612
35 parts on this diagram · 2 diagrams in section
