REAR BUMPER & BUMPER STAY

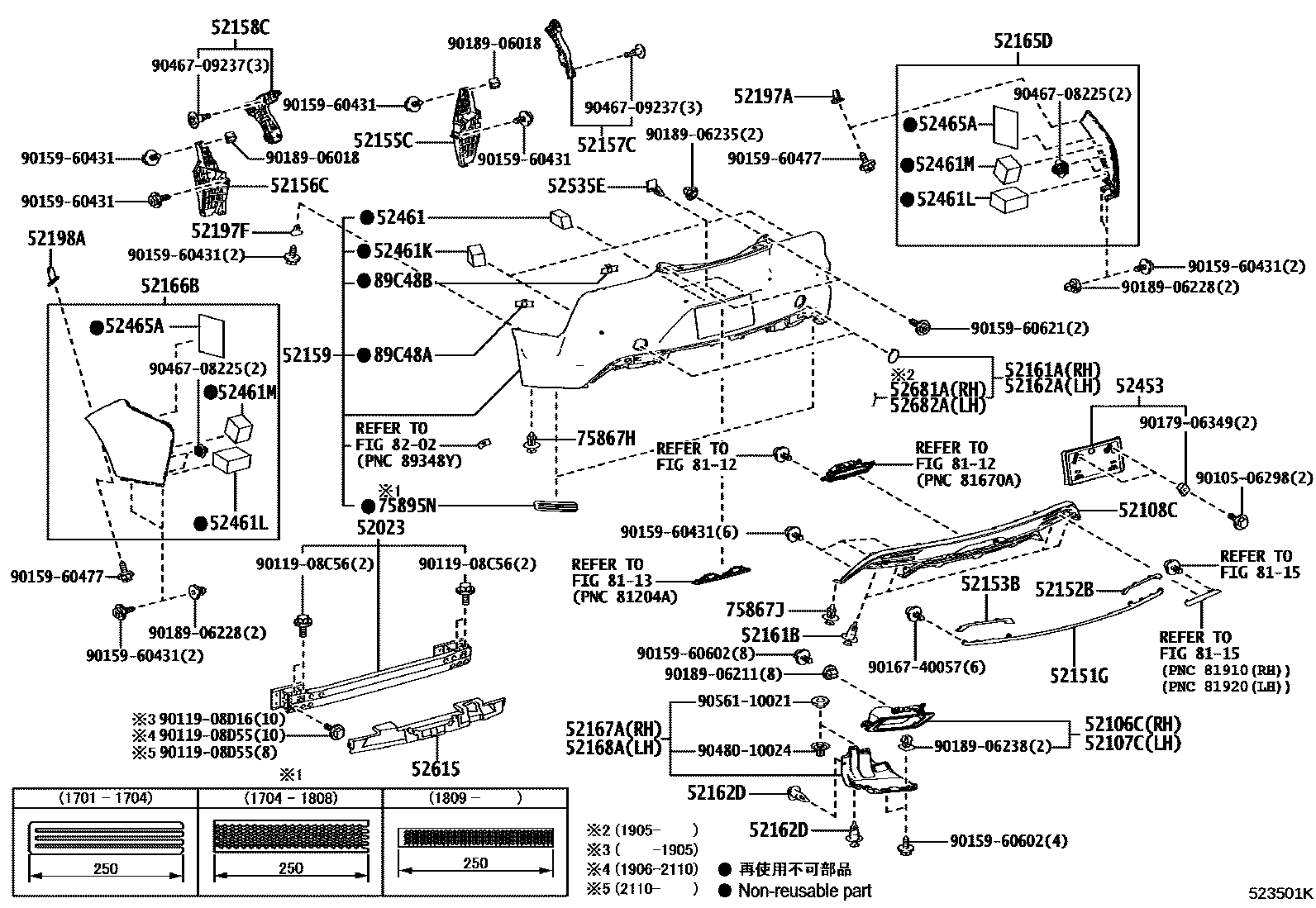

Parts diagram
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
main52023-11020i201701-202111
main52023-11050i202111-202305
sub52023-11070
52106CEXTENSION SUB-ASSY, REAR BUMPER, RH
main52106-11020i201701
52107CEXTENSION SUB-ASSY, REAR BUMPER, LH
main52107-11020i201701
52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER
main52108-11010i201701-202110
sub52108-11011
main52108-11011i202111
52151GEXTENSION, REAR BUMPER
main52151-11040i201701
52152BEXTENSION, REAR BUMPER, RH
main52152-11030i201701
52153BEXTENSION, REAR BUMPER, LH
main52153-11030i201701
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
main52155-11010i201701
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
main52156-11010i201701
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
main52157-11010i201701
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
main52158-11010i201701
52159COVER, REAR BUMPER
main52159-11900-A0i201701-201704
WHITE NOVA GF.,083
sub52159-11911
main52159-11900-B0i201701-201704
DK.GRAY MC.,1G0
sub52159-11911
main52159-11900-B1i201701-201704
SONIC SILVER,1J2
sub52159-11911
main52159-11900-B2i201701-201704
SONIC TITANIUM,1J7
sub52159-11911
main52159-11900-C0i201701-201704
BLACK,212
sub52159-11911
main52159-11900-C1i201701-201704
GRAPHITE BLACK GF.,223
sub52159-11911
main52159-11900-D0i201701-201704
GARNET RED MC.,3S0
sub52159-11911
main52159-11900-D1i201701-201704
RADIANT RED CONTRAST LAYE,3T5
sub52159-11911
main52159-11900-E0i201701-201704
AMBER CS.,4X2
sub52159-11911
main52159-11900-F0i201701-201704
NAPLES YELLOW,5C1
sub52159-11911
main52159-11900-J0i201701-201704
DEEP BLUE MC.,8X5
sub52159-11911
main52159-11900-J1i201701-201710
STRUCTURAL BLUE,8Y0
sub52159-11911
main52159-11911-A0i201704-202004
WHITE NOVA GF.,083
sub52159-11913
main52159-11911-B0i201704-202004
DK.GRAY MC.,1G0
sub52159-11913
main52159-11911-B1i201704-202004
SONIC SILVER,1J2
sub52159-11913
main52159-11911-B2i201704-202004
SONIC TITANIUM,1J7
sub52159-11913
main52159-11911-C0i201704-202004
BLACK,212
sub52159-11913
main52159-11911-C1i201704-202004
GRAPHITE BLACK GF.,223
sub52159-11913
main52159-11911-D0i201704-201906
GARNET RED MC.,3S0
sub52159-11913
main52159-11911-D1i201704-202004
RADIANT RED CONTRAST LAYE,3T5
sub52159-11913
main52159-11911-E0i201704-202004
AMBER CS.,4X2
sub52159-11913
main52159-11911-F0i201704-202004
NAPLES YELLOW,5C1
sub52159-11913
main52159-11911-G0i201909-202004
TERRANE KHAKI M.M.,6X4
sub52159-11913
main52159-11911-J0i201704-202004
DEEP BLUE MC.,8X5
sub52159-11913
main52159-11911-J1i201710-201809
STRUCTURAL BLUE,8Y0
sub52159-11913
main52159-11915-A0i202004
WHITE NOVA GF.,083
main52159-11915-B0i202004-202210
DK.GRAY MC.,1G0
main52159-11915-B1i202004-202111
SONIC SILVER,1J2
main52159-11915-B2i202004
SONIC TITANIUM,1J7
main52159-11915-B3i202111
SONIC IRIDIUM,1L2
main52159-11915-B4i202210
SONIC CHROME,1L1
main52159-11915-C0i202004-202111
BLACK,212
main52159-11915-C1i202004
GRAPHITE BLACK GF.,223
main52159-11915-D1i202004
RADIANT RED CONTRAST LAYE,3T5
main52159-11915-E1i202004
AMBER CS.,4Y1
main52159-11915-F0i202004
NAPLES YELLOW,5C1
main52159-11915-G0i202004
TERRANE KHAKI M.M.,6X4
main52159-11915-J0i202004
DEEP BLUE MC.,8X5
52161APIECE, REAR BUMPER, RH
main52161-11010-A0i201701-201907
WHITE NOVA GF.,083
sub52161-11011
main52161-11010-B0i201701-201907
DK.GRAY MC.,1G0
sub52161-11011
main52161-11010-B1i201701-201907
SONIC SILVER,1J2
sub52161-11011
main52161-11010-B2i201701-201907
SONIC TITANIUM,1J7
sub52161-11011
main52161-11010-C0i201701-201907
BLACK,212
sub52161-11011
main52161-11010-C1i201701-201907
GRAPHITE BLACK GF.,223
sub52161-11011
main52161-11010-D0i201701-201906
GARNET RED MC.,3S0
sub52161-11011
main52161-11010-D1i201701-201907
RADIANT RED CONTRAST LAYE,3T5
sub52161-11011
main52161-11010-E0i201701-201907
AMBER CS.,4X2
sub52161-11011
main52161-11010-F0i201701-201907
NAPLES YELLOW,5C1
sub52161-11011
main52161-11010-J0i201701-201907
DEEP BLUE MC.,8X5
sub52161-11011
main52161-11010-J1i201710-201809
STRUCTURAL BLUE,8Y0
sub52161-11011
main52161-11011-A0i201908
WHITE NOVA GF.,083
main52161-11011-B0i201908-202210
DK.GRAY MC.,1G0
main52161-11011-B1i201908-202111
SONIC SILVER,1J2
main52161-11011-B2i201908
SONIC TITANIUM,1J7
main52161-11011-B3i202111
SONIC IRIDIUM,1L2
main52161-11011-B4i202210
SONIC CHROME,1L1
main52161-11011-C0i201908-202111
BLACK,212
main52161-11011-C1i201908
GRAPHITE BLACK GF.,223
main52161-11011-D1i201908
RADIANT RED CONTRAST LAYE,3T5
main52161-11011-E0i201908-202004
AMBER CS.,4X2
main52161-11011-E1i202004
BLAZING CARNELIAN CONTRAS,4Y1
main52161-11011-F0i201908
NAPLES YELLOW CONTRAST LA,5C1
main52161-11011-G0i201909
TERRANE KHAKI M.M.,6X4
main52161-11011-J0i201908
DEEP BLUE MC.,8X5
52161BPIECE, REAR BUMPER
main52161-16010i201701
52162APIECE, REAR BUMPER, LH
main52162-11010-A0i201701-201907
WHITE NOVA GF.,083
sub52162-11011
main52162-11010-B0i201701-201907
DK.GRAY MC.,1G0
sub52162-11011
main52162-11010-B1i201701-201907
SONIC SILVER,1J2
sub52162-11011
main52162-11010-B2i201701-201907
SONIC TITANIUM,1J7
sub52162-11011
main52162-11010-C0i201701-201907
BLACK,212
sub52162-11011
main52162-11010-C1i201701-201907
GRAPHITE BLACK GF.,223
sub52162-11011
main52162-11010-D0i201701-201906
GARNET RED MC.,3S0
sub52162-11011
main52162-11010-D1i201701-201907
RADIANT RED CONTRAST LAYE,3T5
sub52162-11011
main52162-11010-E0i201701-201907
AMBER CS.,4X2
sub52162-11011
main52162-11010-F0i201701-201907
NAPLES YELLOW,5C1
sub52162-11011
main52162-11010-J0i201701-201907
DEEP BLUE MC.,8X5
sub52162-11011
main52162-11010-J1i201710-201809
STRUCTURAL BLUE,8Y0
sub52162-11011
main52162-11011-A0i201908
WHITE NOVA GF.,083
main52162-11011-B0i201908-202210
DK.GRAY MC.,1G0
main52162-11011-B1i201908-202111
SONIC SILVER,1J2
main52162-11011-B2i201908
SONIC TITANIUM,1J7
main52162-11011-B3i202111
SONIC IRIDIUM,1L2
main52162-11011-B4i202210
SONIC CHROME,1L1
main52162-11011-C0i201908-202111
BLACK,212
main52162-11011-C1i201908
GRAPHITE BLACK GF.,223
main52162-11011-D1i201908
RADIANT RED CONTRAST LAYE,3T5
main52162-11011-E0i201908-202004
AMBER CS.,4X2
main52162-11011-E1i202004
BLAZING CARNELIAN CONTRAS,4Y1
main52162-11011-F0i201908
NAPLES YELLOW CONTRAST LA,5C1
main52162-11011-G0i201909
TERRANE KHAKI M.M.,6X4
main52162-11011-J0i201908
DEEP BLUE MC.,8X5
52162DPIECE, REAR BUMPER
main52161-16010i201701
52165DEXTENSION, REAR BUMPER CORNER, RH
main52165-11010-A0i201701
WHITE NOVA GF.,083
main52165-11010-B0i201701-202210
DK.GRAY MC.,1G0
main52165-11010-B1i201701-202111
SONIC SILVER,1J2
main52165-11010-B2i201701
SONIC TITANIUM,1J7
main52165-11010-B3i202111
SONIC IRIDIUM,1L2
main52165-11010-B4i202210
SONIC CHROME,1L1
main52165-11010-C0i201701-202111
BLACK,212
main52165-11010-C1i201701
GRAPHITE BLACK GF.,223
main52165-11010-D0i201701-201906
GARNET RED MC.,3S0
main52165-11010-D1i201701
RADIANT RED CONTRAST LAYE,3T5
main52165-11010-E0i201701-202004
AMBER CS.,4X2
main52165-11010-E1i202004
BLAZING CARNELIAN CONTRAS,4Y1
main52165-11010-F0i201701
NAPLES YELLOW,5C1
main52165-11010-G0i201909
TERRANE KHAKI M.M.,6X4
main52165-11010-J0i201701
DEEP BLUE MC.,8X5
main52165-11010-J1i201710-201809
STRUCTURAL BLUE,8Y0
52166BEXTENSION, REAR BUMPER CORNER, LH
main52166-11010-A0i201701
WHITE NOVA GF.,083
main52166-11010-B0i201701-202210
DK.GRAY MC.,1G0
main52166-11010-B1i201701-202111
SONIC SILVER,1J2
main52166-11010-B2i201701
SONIC TITANIUM,1J7
main52166-11010-B3i202111
SONIC IRIDIUM,1L2
main52166-11010-B4i202210
SONIC CHROME,1L1
main52166-11010-C0i201701-202111
BLACK,212
main52166-11010-C1i201701
GRAPHITE BLACK GF.,223
main52166-11010-D0i201701-201906
GARNET RED MC.,3S0
main52166-11010-D1i201701
RADIANT RED CONTRAST LAYE,3T5
main52166-11010-E0i201701-202004
AMBER CS.,4X2
main52166-11010-E1i202004
BLAZING CARNELIAN CONTRAS,4Y1
main52166-11010-F0i201701
NAPLES YELLOW,5C1
main52166-11010-G0i201909
TERRANE KHAKI M.M.,6X4
main52166-11010-J0i201701
DEEP BLUE MC.,8X5
main52166-11010-J1i201710-201809
STRUCTURAL BLUE,8Y0
52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH
main52167-11010i201701
52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH
main52168-11010i201701
52197ABRACKET, REAR BUMPER SEAL, RH
main52197-53040i201701
52197FBRACKET, REAR BUMPER SEAL
main52197-62020i201701
52198ABRACKET, REAR BUMPER SEAL, LH
main52198-53020i201701
52453GUARD, REAR BUMPER, CENTER
main52453-11010i201701
52461PAD, REAR BUMPER, CENTER
main52461-11010i201701
52461KPAD, REAR BUMPER, NO.1
main52461-11030i201701
52461LPAD, REAR BUMPER, NO.2
main52461-11040i201701
52461MPAD, REAR BUMPER, NO.3
main52462-53030i201701
52465AINSERT, REAR BUMPER PAD
main52465-11010i201701
52535ERETAINER, REAR BUMPER SIDE
main52535-28020i201701
52615ABSORBER, REAR BUMPER ENERGY
main52615-11020i201701
52681AEXTENSION, REAR BUMPER ARM, RH
main52681-11030i201908
52682AEXTENSION, REAR BUMPER ARM, LH
main52682-11010i201908
75867HCLIP, ROCKER PANEL MOULDING
main75867-33050i201701
75867JCLIP, ROCKER PANEL MOULDING, NO.2
main75867-33050i201701
75895NTAPE, MOULDING, NO.1
main75895-28010i201701-201704
main75895-30050i201704-201808
main75895-53010i201809
8112
8113
8115
8202
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-78020i201701
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-78020i201701
9010506298
main90105-06298
9011908C56
main90119-08C56
9011908D16
main90119-08D16
9011908D55
main90119-08D55
9015960431
main90159-60431
9015960477
main90159-60477
9015960602
main90159-60602
9015960621
main90159-60621
9016740057
main90167-40057
9017906349
main90179-06349
9018906018
main90189-06018
9018906211
main90189-06211
9018906228
main90189-06228
9018906235
main90189-06235
9018906238
main90189-06238
9046708225
main90467-08225
9046709237
main90467-09237
9048010024
main90480-10024
9056110021
main90561-10021

61 parts on this diagram · 2 diagrams in section
