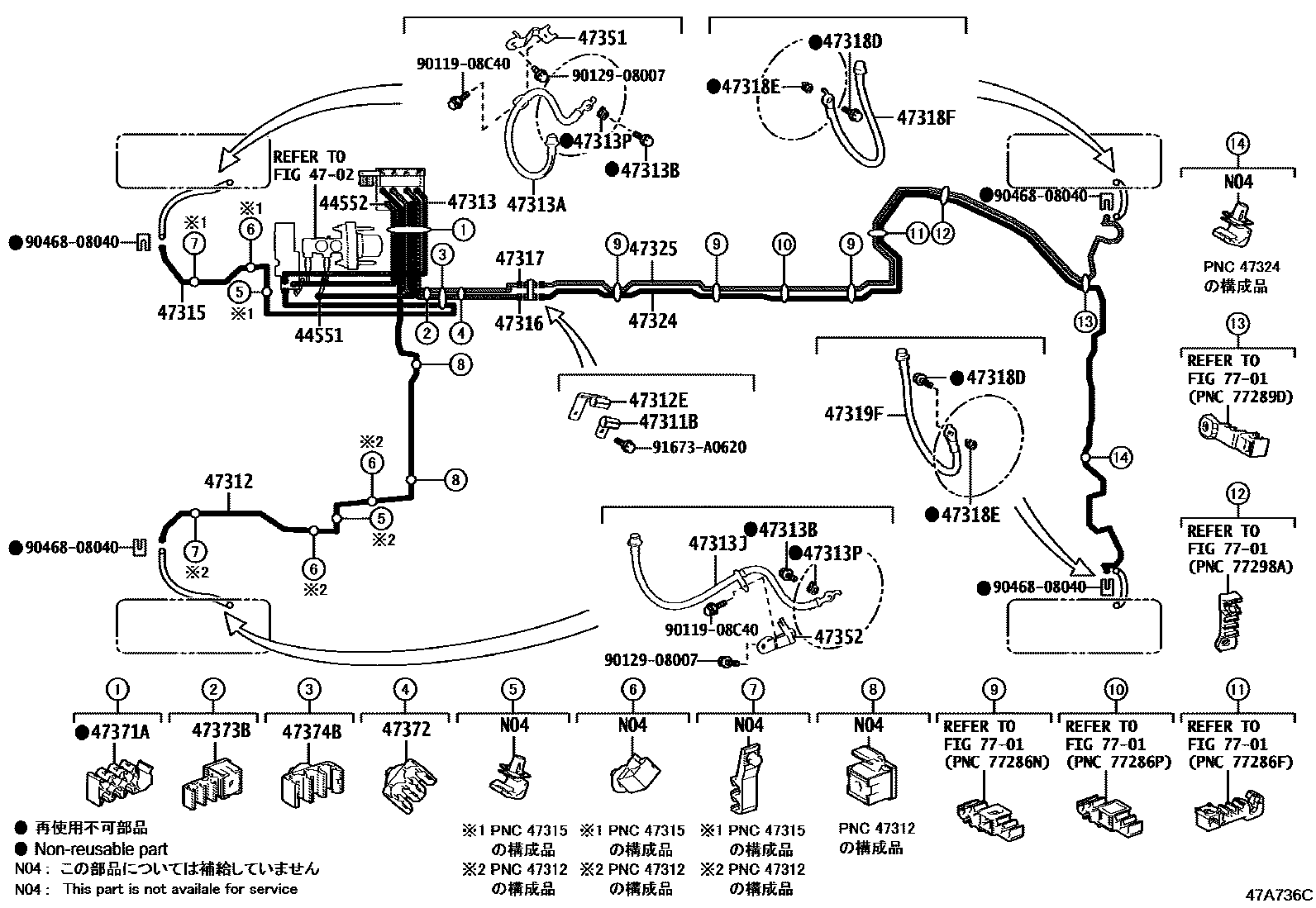

BRAKE TUBE & CLAMP

0001 1���������� 0002 1������������

44551TUBE, BRAKE ACTUATOR, NO.1

main44551-11010iGWZ100,URZ100201701-202004

sub44551-11011

main44551-11011iGWZ100,URZ100202004

44552TUBE, BRAKE ACTUATOR, NO.2

main44552-11010iGWZ100,URZ100201701-202004

sub44552-11011

main44552-11011iGWZ100,URZ100202004

4702

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10292iGWZ100,URZ100201701

47312TUBE, FRONT BRAKE, NO.2

main47312-11040iGWZ100201701-202004

sub47312-11041

main47312-11041iGWZ100202004

main47312-11060iURZ100201703-202004

sub47312-11061

main47312-11061iURZ100202004

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10297iGWZ100,URZ100201701

47313TUBE, FRONT BRAKE, NO.3

main47313-11060iGWZ100,URZ100201701-202004

sub47313-11061

main47313-11061iGWZ100,URZ100202004

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H62iGWZ100,URZ100201701

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iGWZ100,URZ100201701

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H67iGWZ100,URZ100201701

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iGWZ100,URZ100201701

47315TUBE, FRONT BRAKE, NO.5

main47315-11060iGWZ100201701-202004

sub47315-11061

main47315-11061iGWZ100202004

main47315-11080iURZ100201703-202004

sub47315-11081

main47315-11081iURZ100202004

47316TUBE, FRONT BRAKE, NO.6

main47322-11080iGWZ100201701-202004

sub47322-11081

main47322-11081iGWZ100202004

main47322-11110iURZ100201703-202004

sub47322-11111

main47322-11111iURZ100202004

47317TUBE, FRONT BRAKE, NO.7

main47323-11020iGWZ100201701-202004

sub47323-11021

main47323-11021iGWZ100202004

main47323-11050iURZ100201703-202004

sub47323-11051

main47323-11051iURZ100202004

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iGWZ100,URZ100201701

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iGWZ100,URZ100201701

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H68iGWZ100,URZ100201701

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H68iGWZ100,URZ100201701

47324TUBE, REAR BRAKE, NO.4

main47324-11020iGWZ100,URZ100201701-201707

sub47324-11021

main47324-11021iGWZ100,URZ100201708-202004

sub47324-11022

main47324-11022iGWZ100,URZ100202004

47325TUBE, REAR BRAKE, NO.5

main47325-11010iGWZ100,URZ100201701-201707

sub47325-11011

main47325-11011iGWZ100,URZ100201708-202004

sub47325-11012

main47325-11012iGWZ100,URZ100202004

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-11040iGWZ100,URZ100201701

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-11020iGWZ100,URZ100201701

47371ACLAMP, BRAKE TUBE, NO.1

main47371-11010iGWZ100,URZ100201701

47372CLAMP, BRAKE TUBE, NO.2

main90469-07020iGWZ100,URZ100201701

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D21iGWZ100,URZ100201701

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D41iGWZ100,URZ100201701

7701

9011908C40

main90119-08C40

9012908007

main90129-08007

9046808040

main90468-08040

91673A0620

main91673-A0620

31 parts on this diagram · 2 diagrams in section
