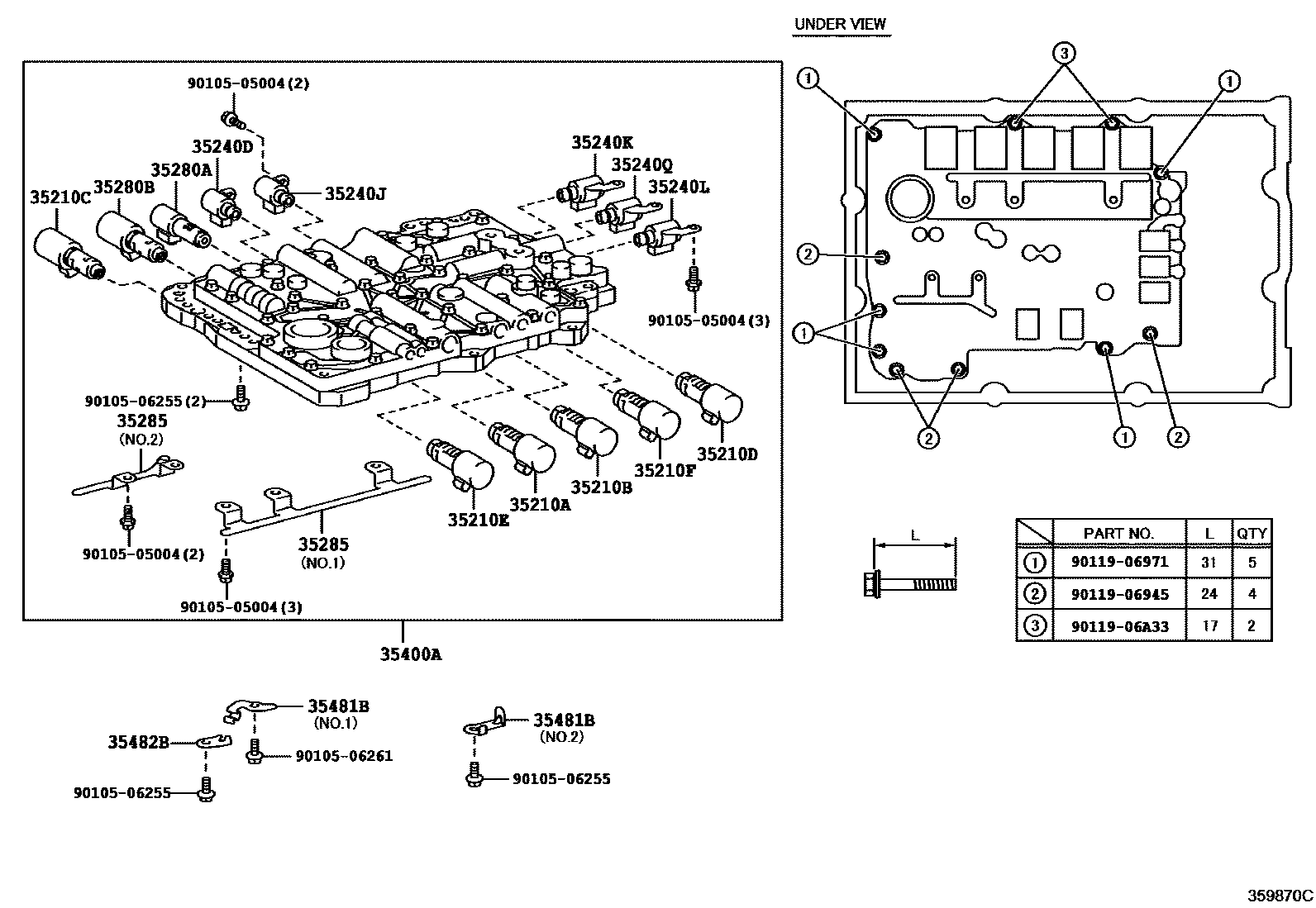

VALVE BODY & OIL STRAINER (ATM)

0001 1AGA0E 0002 1AGA0E

35210AVALVE, SOLENOID(SL1)

main35210-11010iURZ100201703

35210BVALVE, SOLENOID(SL3)

main35210-11010iURZ100201703

35210CVALVE, SOLENOID(SL2)

main35210-11010iURZ100201703

35210DVALVE, SOLENOID(SL4)

main35210-11010iURZ100201703

35210EVALVE, SOLENOID(SL5)

main35210-11010iURZ100201703

35210FVALVE, SOLENOID(SL6)

main35210-11010iURZ100201703

35240DVALVE, SOLENOID(SL)

main35240-11030iURZ100201703

35240JVALVE, SOLENOID(SR)

main35240-11030iURZ100201703

35240KSOLENOID ASSY, TRANSMISSION 3WAY(SC1)

main35240-11020iURZ100201703

35240LSOLENOID ASSY, TRANSMISSION 3WAY(SC2)

main35240-11020iURZ100201703

35240QSOLENOID ASSY, TRANSMISSION 3WAY(SC3)

main35240-11020iURZ100201703

35280AVALVE, SOLENOID(SLU)

main35280-71010iURZ100201703-202206

sub35280-71020

main35280-71020iURZ100202207

35280BVALVE, SOLENOID(SLT)

main35280-11010iURZ100201703

35285PLATE, SOLENOID LOCK

main35285-11020iURZ100201703

main35285-11030iURZ100201703

35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID

main35400-11020iURZ100201703

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-11010iURZ100201703

main35481-50050iURZ100201703

35482BCLAMP, TEMPERATURE SENSOR

main35482-50020iURZ100201703

9010505004

main90105-05004

9010506255

main90105-06255

9010506261

main90105-06261

9011906945

main90119-06945

9011906971

main90119-06971

9011906A33

main90119-06A33

23 parts on this diagram · 2 diagrams in section
