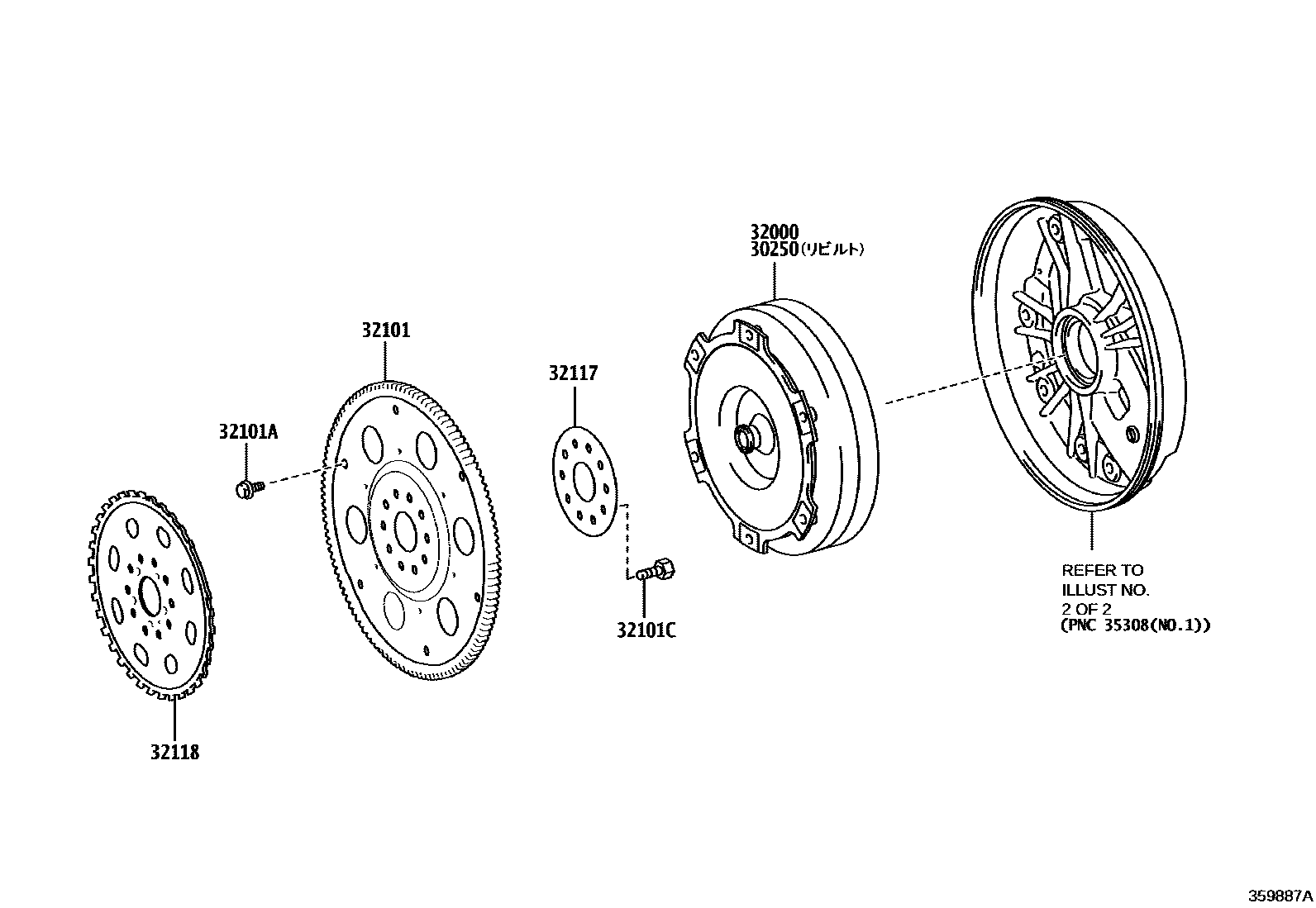

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AGA0E 0002 1AGA0E

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-11010iURZ100201703-202305

32000CONVERTER ASSY, TORQUE

main32000-11010iURZ100201703

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-24020iURZ100201703

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10340×5iURZ100201703

main90105-10547iURZ100201703

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90910-02129iURZ100201703-202104

main90910-A2002×10iURZ100202104

32117SPACER, DRIVE PLATE, REAR

main32117-34010iURZ100201703

32118ROTOR, CRANKSHAFT ANGLE SENSOR

main32118-24010iURZ100201703

7 parts on this diagram · 2 diagrams in section
