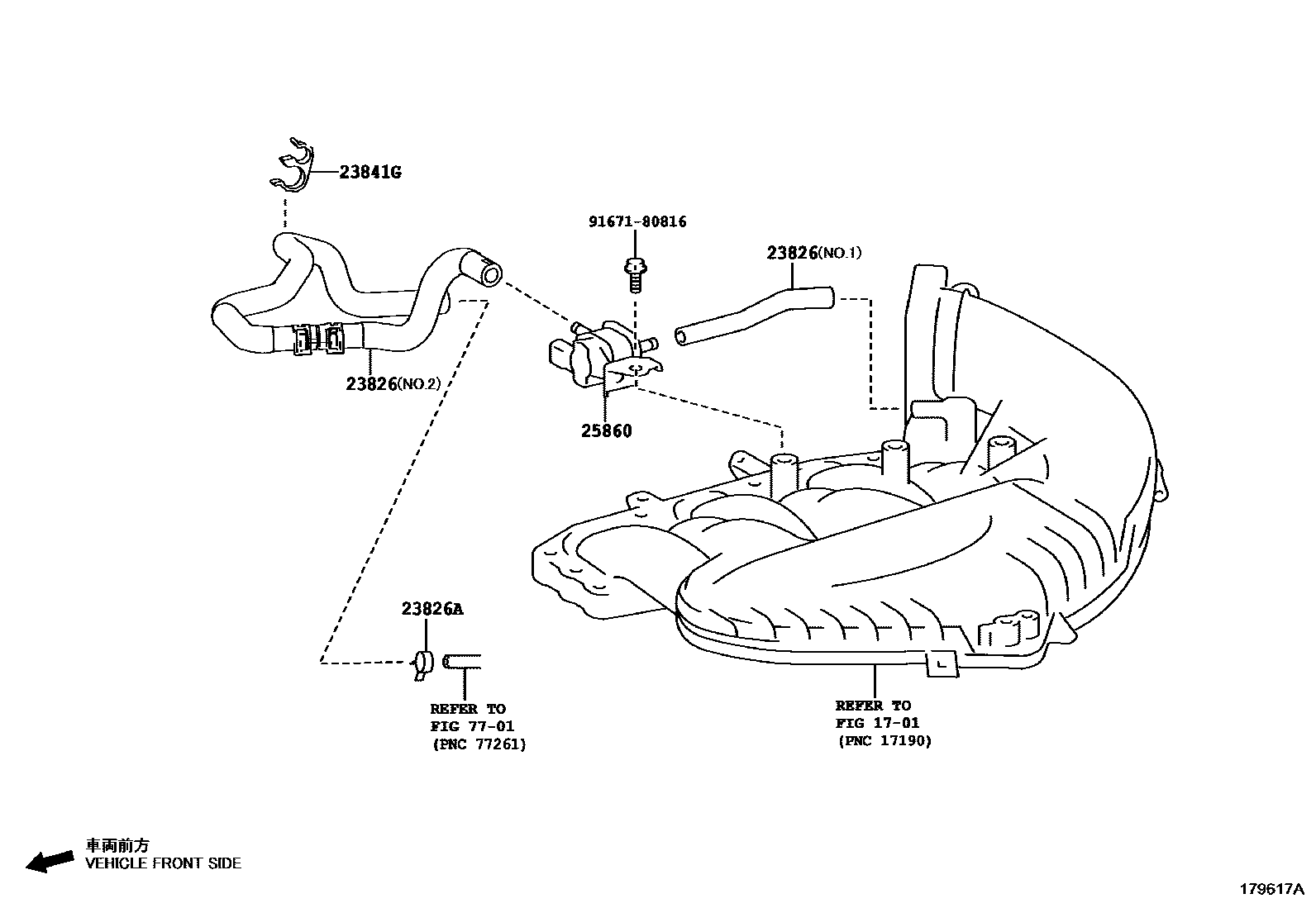

VACUUM PIPING

0001 1 0002 1

1701

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31320i8GRFXS..GWZ100201701

main23826-31370i8GRFXS..GWZ100201701

main23826-38040i2URGSE..URZ100201703

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300i2URGSE..URZ100201703-202004

main96133-41301i2URGSE..URZ100202004

main96136-41901i8GRFXS..GWZ100201701

23841GCLAMP, FUEL HOSE

main23841-31180i8GRFXS..GWZ100201701

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31110i8GRFXS..GWZ100201701

main25860-38030i2URGSE..URZ100201703

7701

9167180816

main91671-80816

7 parts on this diagram · 2 diagrams in section
