CYLINDER BLOCK
11363ACOVER, FLYWHEEL HOUSING SIDE
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11445SPACER, CYLINDER BLOCK WATER JACKET
11446SPACER, CYLINDER BLOCK WATER JACKET, LH
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
12142GUIDE, OIL LEVEL GAGE, NO.2
12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
12151GASKET, OIL PAN
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15367BRACKET, OIL LEVEL SENSOR
15708NOZZLE SUB-ASSY, OIL, NO.1
28193INSULATOR, STARTER HOLE
3901
8401
9011006040
main90110-06040
9011906938
main90119-06938
9012606028
main90126-06028
9012606029
main90126-06029
9012608047
main90126-08047
9012608052
main90126-08052
9017906326
main90179-06326
9021007006
main90210-07006
9025010030
main90250-10030
91551L0830
main91551-L0830
91551L0845
main91551-L0845
9167180610
main91671-80610
9167180612
main91671-80612
9167180816
main91671-80816

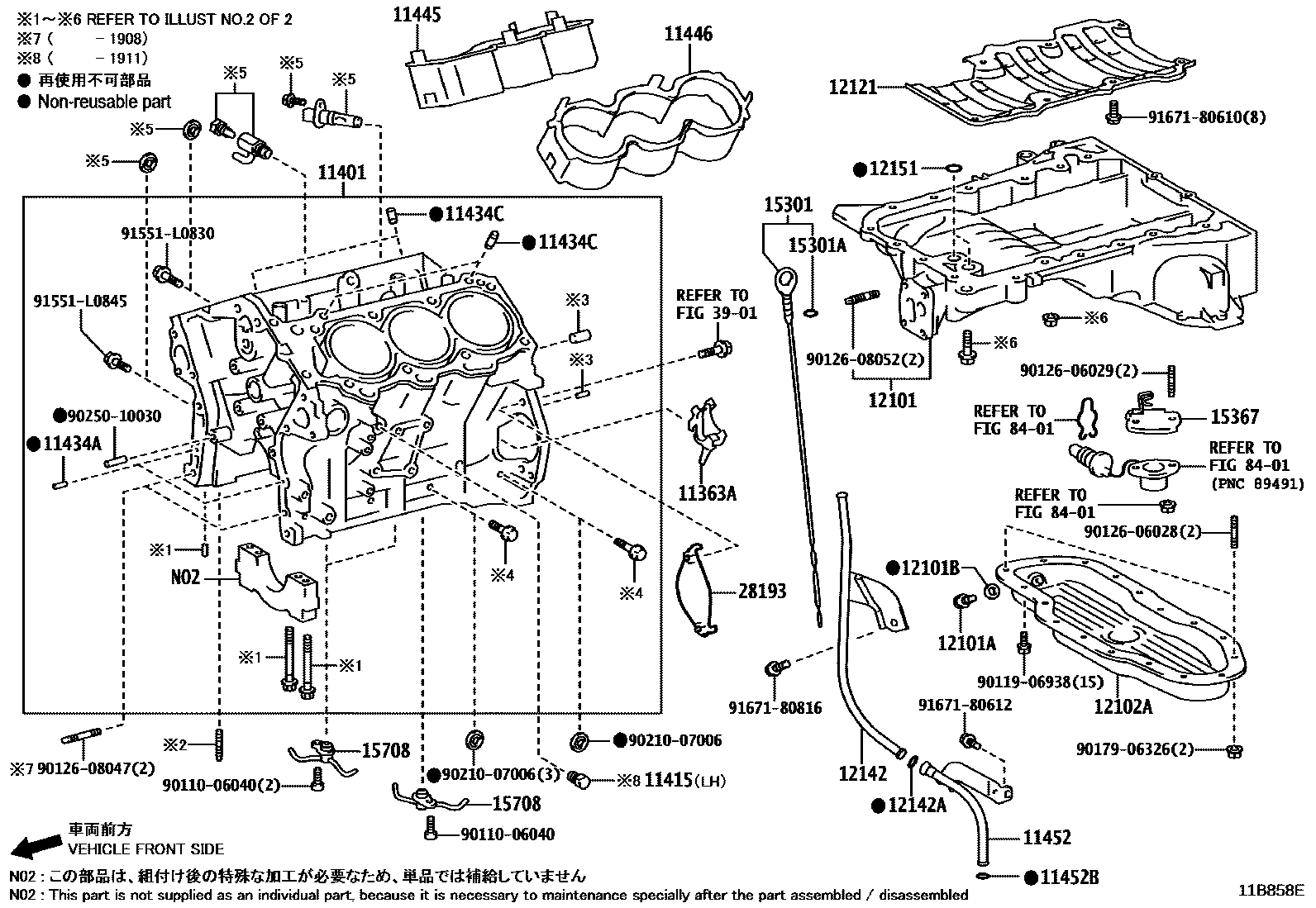

39 parts on this diagram · 4 diagrams in section
