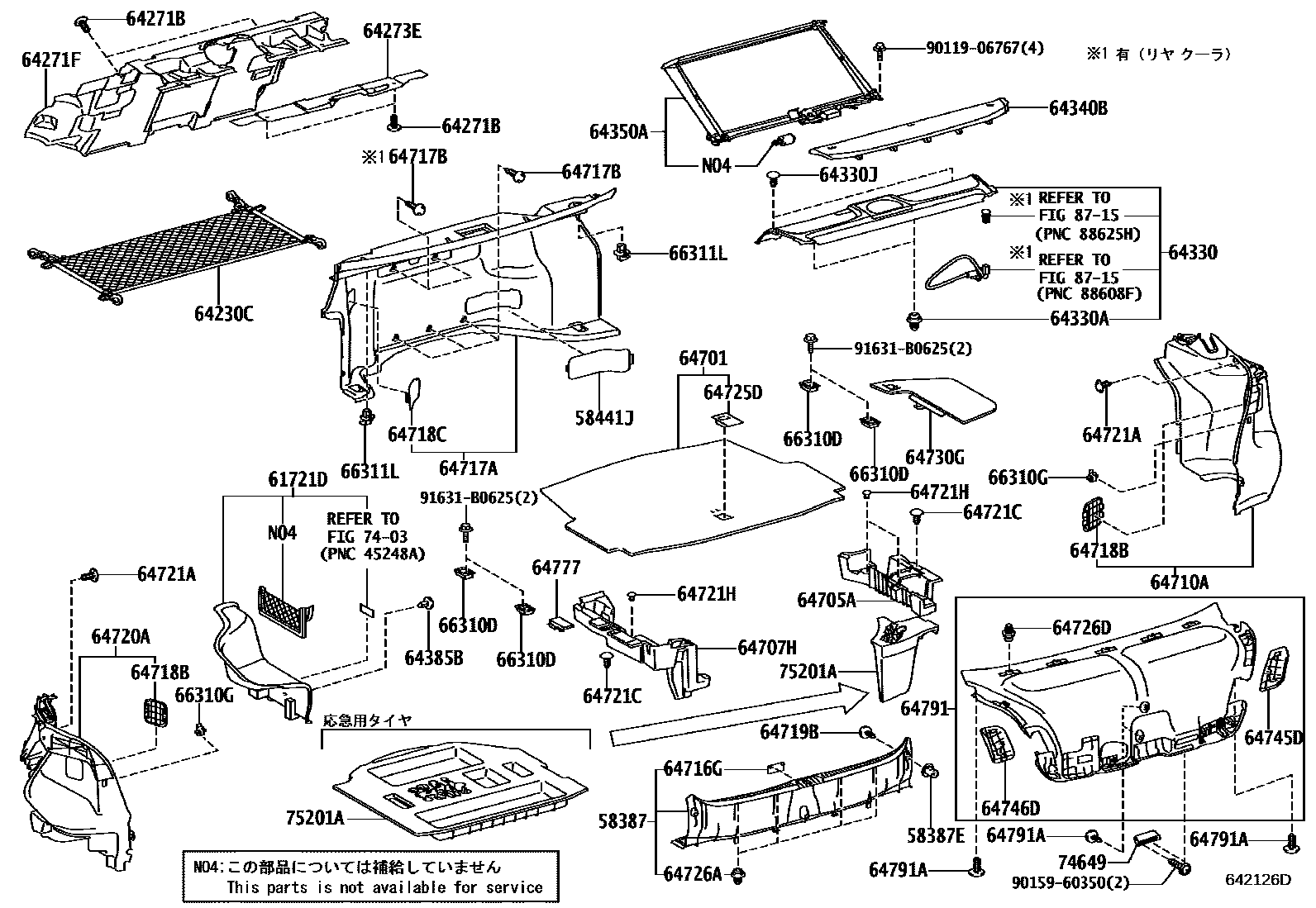

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-50020-C0i200704-200809

BLACK,TRIM0#,1#,2#

sub58387-50021

main58387-50030-C0i200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

sub58387-50031

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-12069×2i200911

58441JCOVER, BATTERY SERVICE HOLE

main58441-50010-C1i200704-200809

BLACK,TRIM0#,1#,2#

61721DCOVER, BATTERY SERVICE HOLE, LH

main61721-50011-C1i200809-200911

BLACK,TRIM0#,1#,2#

main61721-50012-C1i201112-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

main61721-50021-C1i200809-200911

main61721-50022-C1i201112-201209

sub61721-50023

64230CNET ASSY, ROOM PARTITION

main64230-50021i200911

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0×4i200911-201209

BLACK

64271FTRIM, ROOM PARTITION

main64271-50100i200704-200809

main64271-50140supersedes 64271-50130i200911

64273EPAD, ROOM PARTITION

main64273-50010i200704-200809

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-50430-B0i200911-201209

LT.GRAY,TRIM10,11

main64330-50430-C0i200911-201209

BLACK,TRIM14,15,2#

main64330-50330-A0supersedes 64330-50320-A0i200809-200911

main64330-50330-A1supersedes 64330-50440-A0i200809-200911

main64330-50330-B1supersedes 64330-50320-B1i200704-200809

main64330-50330-C0supersedes 64330-50320-C0i200704-200809

main64330-50450-A0supersedes 64330-50440-A0i200911-201209

main64330-50450-A1supersedes 64330-50440-A1i200911-201209

main64330-50450-C0supersedes 64330-50440-C0i200911-201209

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×2i200704-200809

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-05162-A2×2i200809-200911

IVORY,TRIM00,06

main90467-05162-A3×2i200911-201209

MELLOW WHITE,TRIM01,05,07,08

main90467-05162-A5×2i200911-201209

IVORY,TRIM02,03

main90467-05162-B2×2i200704-200809

LT.GRAY,TRIM1#

main90467-05162-C0×2i200911-201209

BLACK,TRIM14,15,2#

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-50020-A0i200704-200809

IVORY,TRIM00,06

sub64340-50021

main64340-50020-A1i200911-201209

MELLOW WHITE,TRIM01,05,07,08

sub64340-50021

main64340-50020-A4i200911-201209

IVORY,TRIM02,03

sub64340-50021

main64340-50020-B1i200704-200809

LT.GRAY,TRIM1#

sub64340-50021

main64340-50020-C0i200911-201209

BLACK,TRIM14,15,2#

sub64340-50021

64350ASHADE ASSY, REAR WINDOW

main64350-50020i200704-200809

sub64350-50021

64385BCLIP

main67771-52010-C0i200704-200809

BLACK

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-50100-C0i200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

main64701-50060-C0supersedes 64701-50110-C0i200704-200809

main64701-50120-C0supersedes 64701-50110-C0i200809-200911

sub64701-50140

64705AGUARD SUB-ASSY, SPARE WHEEL

64707HGUARD SUB-ASSY, SPARE WHEEL, NO.2

main64705-50040i200704-200809

main64705-50080i200809-200911

sub64705-50090

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-50190-C0i200704-200805

BLACK,TRIM0#,1#,2#

sub64710-50241

main64710-50191-C0i200805-200809

BLACK,TRIM0#,1#,2#

sub64710-50240

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-50040i200704-200809

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-50060-C0i200911-201209

sub64075-50061

main64075-50120-C0i200704-200809

main64075-50170-C0supersedes 64075-50150-C0i200809-200911

main64075-50110-C0supersedes 64075-50150-C0i200704-200809

main64075-50160-C0supersedes 64075-50150-C0i200809-200911

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08186-C0×5supersedes 90467-08186-C0i200704-200809

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-50080-C0×2i200809-200911

BLACK,TRIM0#,1#,2#

64718CCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-50060-C1i200809-200911

BLACK,TRIM0#,1#,2#

main64718-50110-C0i200911-201209

BLACK,TRIM0#,1#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×3i200809-200911

BLACK,TRIM0#,1#,2#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-50130-C0i200704-200805

BLACK,TRIM0#,1#,2#

sub64720-50181

main64720-50131-C0i200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

sub64720-50180

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08186-C0×2i200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0×2i200704-200809

BLACK,TRIM0#,1#,2#

64721HCLIP(LUGGAGE COMPARTMENT)

main55799-60010×3i200704-200809

main90467-06001-C0×2i200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

main90467-06001-C1×2supersedes 90467-06001-C0i200809-200810

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-50140-C0i200704-200809

BLACK,TRIM0#,1#,2#

64726ACLIP, LUGGAGE TRIM, REAR

main90467-10161×4i200911

64726DCLIP, LUGGAGE TRIM, REAR

main90467-10161×11i200704-200809

64730GBOARD, DECK TRIM SIDE, RH

main64731-50070-C0supersedes 64731-50060-C0i200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-50020-C0i200704-200809

BLACK,TRIM0#,1#,2#

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-50020-C0i200704-200809

BLACK,TRIM0#,1#,2#

64777CLAMP, SPARE WHEEL COVER

main64777-50060-C0i200809-200911

BLACK,TRIM0#,1#,2#

64791COVER, BACK DOOR TRIM

main64791-50120-C0i200911-201201

BLACK,TRIM0#,1#,2#

main64791-50121-C0i201201-201204

BLACK,TRIM0#,1#,2#

sub64791-50122

main64791-50130-C0supersedes 64791-50122-C0i200911-201201

main64791-50131-C0i201201-201209

sub64791-50160

64791ACLIP(FOR BACK DOOR TRIM)

main90467-08186-C0×4i200704-200809

BLACK,TRIM0#,1#,2#

66310DHOOK ASSY, ROPE

main66310-30011-C0×4i200704-200809

BLACK,TRIM0#,1#,2#

66310GHOOK ASSY, ROPE

main66311-30010-C0×2i200809-200911

BLACK

66311LHOOK,ROPE

main66311-30010-C0×2i200809-200911

BLACK

7403

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010i200704-200809

main74649-51010-C0i200911-201209

BLACK,TRIM0#,1#,2#

75201ABOX, TOOL

main75201-50060supersedes 75201-50100i200704-200809

main75201-50110supersedes 75201-50100i200809-200911

8715

9011906767

main90119-06767

9015960350

main90159-60350

91631B0625

main91631-B0625

47 parts on this diagram · 2 diagrams in section
