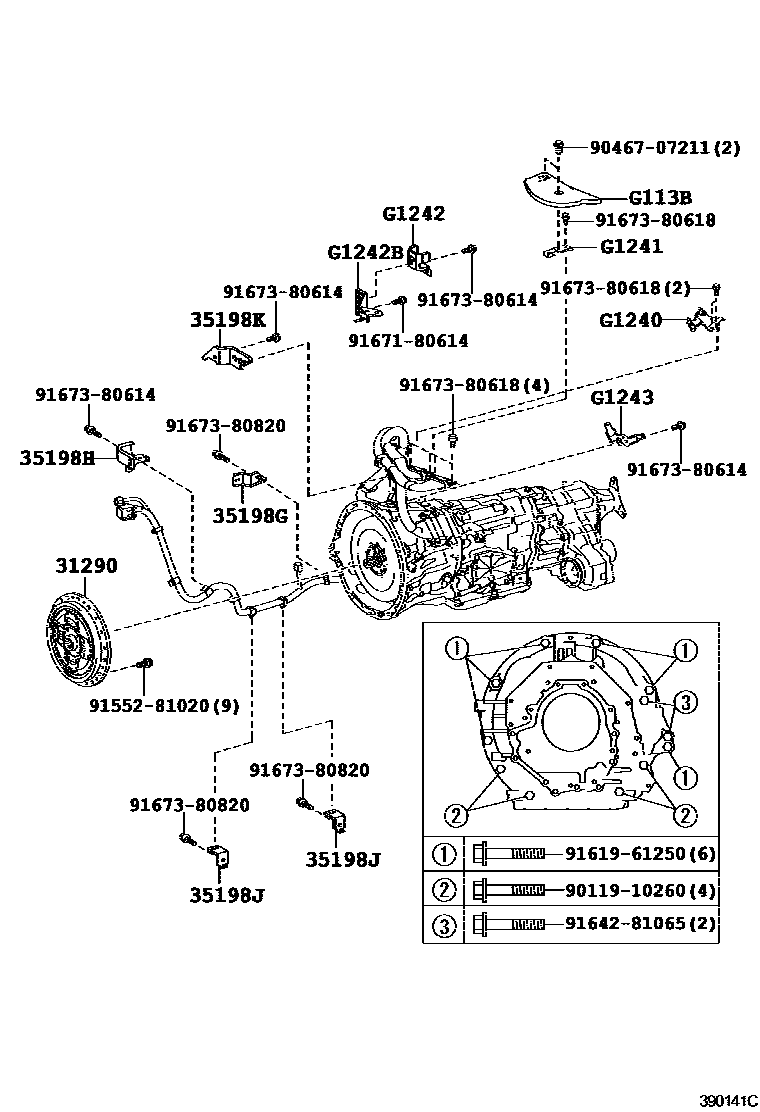

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-50010iUVF4#200704-200911

35198GBRACKET, WIRE HARNESS CLAMP NO.1

main35198-50050iUVF4#200704-200911

35198HBRACKET, WIRE HARNESS CLAMP, NO.2

main35198-50020iUVF4#200704-201209

35198JBRACKET, WIRE HARNESS CLAMP, NO.3

main35198-50030iUVF4#200704-200911

35198KBRACKET, WIRE HARNESS CLAMP, NO.4

main35198-50060iUVF4#200704-200911

G113BCOVER, MOTOR CABLE, LH

mainG113A50010iUVF4#200704-200911

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124050010iUVF4#200704-200911

G1241BRACKET, INVERTER MOTOR CABLE CLAMP

mainG124150010iUVF4#200704-200911

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124250020iUVF4#200704-200911

G1242BBRACKET, ENGINE MOTOR CABLE CLAMP

mainG124250010iUVF4#200704-200911

G1243BRACKET, TRANSMISSION MOTOR CABLE CLAMP

mainG124350010iUVF4#200704-200911

9011910260

main90119-10260

9046707211

main90467-07211

9155281020

main91552-81020

9161961250

main91619-61250

9164281065

main91642-81065

9167180614

main91671-80614

9167380614

main91673-80614

9167380618

main91673-80618

9167380820

main91673-80820

20 parts on this diagram · 2 diagrams in section
