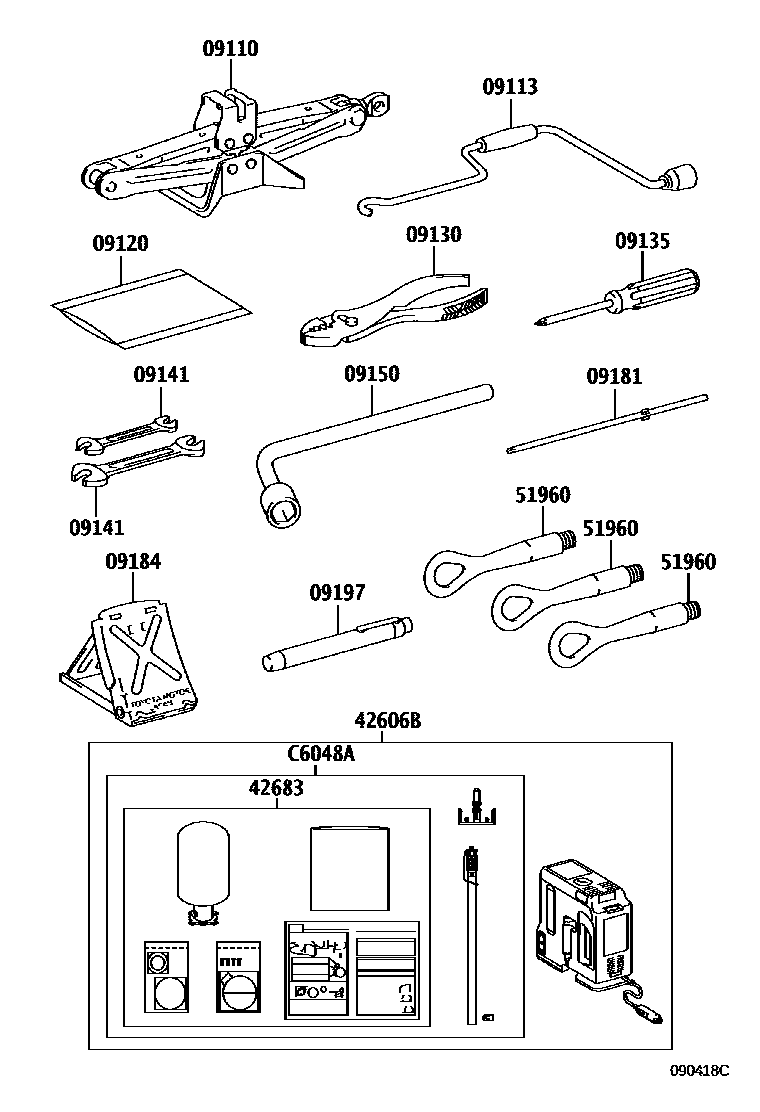

STANDARD TOOL

09110JACK ASSY

main09111-50080iUVF4#200809-200911

main09111-50110iUVF4#201103

sub09111-50131

09113HANDLE, JACK

main09113-50010iUVF4#200911-201012

main09113-50030iUVF4#201101

09120BAG, TOOL

main09120-28040iUVF4#200809-200911

09130PLIERS

main09130-50040iUVF4#200704-200809

09135DRIVER, SCREW

main09135-50050iUVF4#200704-200809

main09135-50060iUVF4#200912

main99915-10700iUVF4#200911-200912

09141SPANNER

main09141-50050iUVF4#200704-200809

main09141-50060iUVF4#200809-200911

main09141-50070iUVF4#201107

main09141-60020iUVF4#201107

09150WRENCH, HUB NUT BOX

main09150-50030iUVF4#200704-200809

main09150-50040iUVF4#200911-201209

09181ROD, PARKING BRAKE RELEASE

main09181-50010iUVF4#200704-200809

sub09181-50020

09184STOPPER, WHEEL

main09184-00010iUVF4#200704-200809

09197LIGHT, PEN

main09197-50040iUVF4#200704-200809

42606BREPAIR KIT, TUBELESS TIRE

42683SEAL, TIRE REPAIR

main42683-50010

main42683-50011

51960HOOK ASSY, FRONT

main51961-50040×2iUVF4#200704-200809

sub51961-50042

main51961-50050×2iUVF4#200911-201110

main51961-50051×2iUVF4#201111-201209

C6048ASEALANT, REPAIR TIRE

14 parts on this diagram · 1 diagram in section
