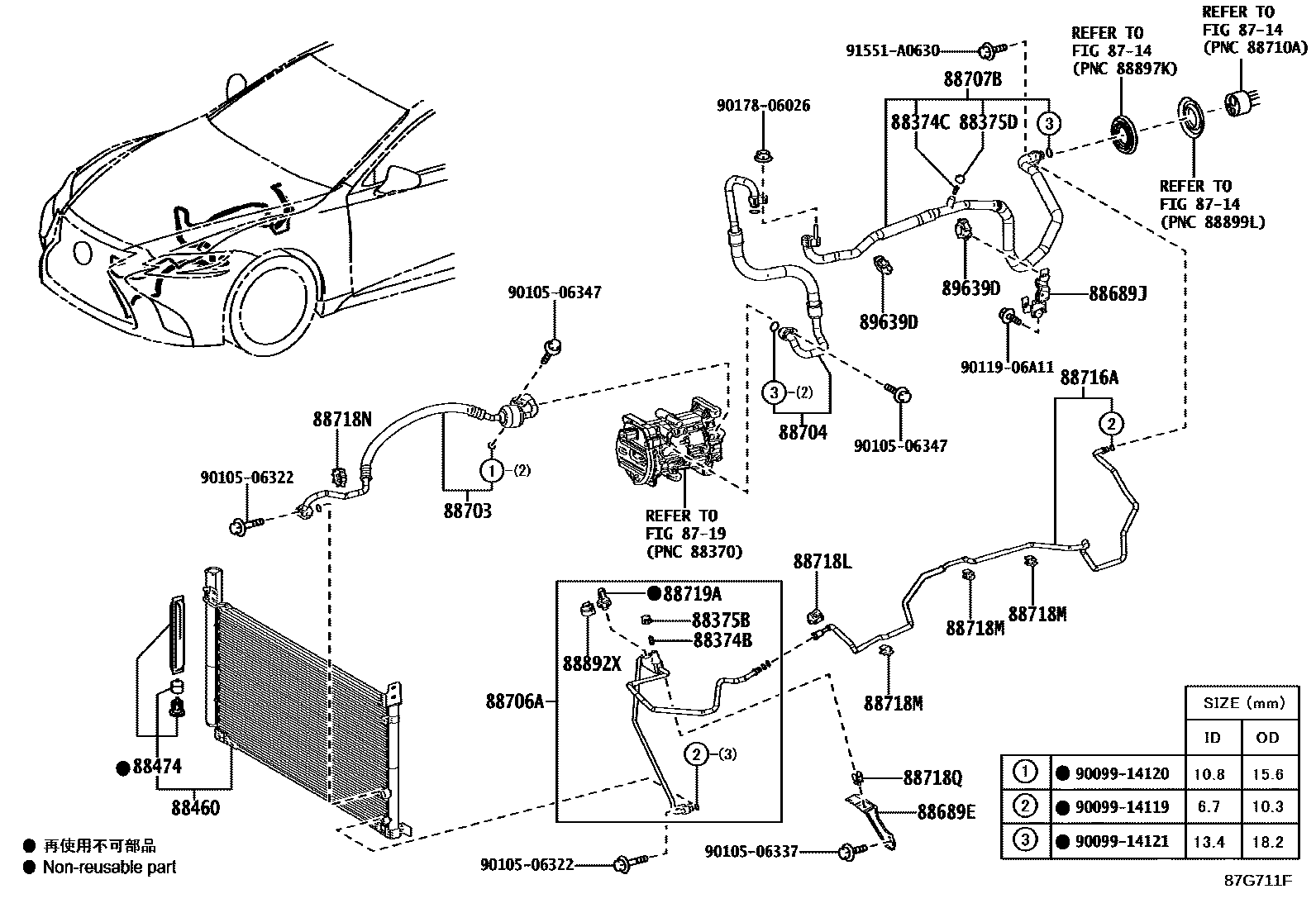

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0003 1���� 0005 1���� 0007 1���� 0009 1����:��(�����) 0011 1����:��(�����) 0013 1����:��(�����) 0015 1����:��(�����) 0017 1�� 0019 1��

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iVXFA5#201710-202008

88374CVALVE, SERVICE, NO.2

main88374-30010iVXFA5#201710-202008

88375BCAP, SERVICE VALVE, NO.1

main88375-30320iGVF5#,VXFA5#202010

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iVXFA5#201710-202008

88460CONDENSER ASSY, COOLER

main884A0-50030iGVF5#201710-202010

main884A0-50040iVXFA5#202010

88474DRYER, COOLER

main88474-12010iVXFA5#202010

main88474-12020iGVF5#202010

88689EBRACKET, COOLER, NO.1

main88688-50330iVXFA5#202010

main88688-50390iGVF5#201710-202010

88689JBRACKET, COOLER, NO.5

main88688-50420iGVF5#201710-202010

88703HOSE SUB-ASSY, DISCHARGE

main88703-50080iVXFA50202010-202404

main88703-50081iVXFA50202405

main88703-50090iVXFA55202010-202404

main88703-50091iVXFA55202405

main88703-50110iGVF50201710-202010

main88703-50111iGVF50202405

main88703-50120iGVF55201710-202010

main88703-50121iGVF55202405

88704HOSE SUB-ASSY, SUCTION

main88704-11020iGVF50202010-202404

main88704-11021iGVF50202405

main88704-50060iVXFA50202010-202404

main88704-50061iVXFA50202405

main88704-50070iVXFA55202010-202404

main88704-50071iVXFA55202405

main88704-50100iGVF55201710-202010

main88704-50101iGVF55202405

88706ATUBE SUB-ASSY, LIQUID, A

main88706-50070iVXFA5#201712-202008

main88706-50071iVXFA5#202403

main88706-50110iGVF5#201710-202010

88707BTUBE SUB-ASSY, SUCTION, B

main88707-11080iGVF5#201710-202010

main88707-50130iGVF5#201809-202010

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-50660iVXFA5#202010

main88716-50680iGVF5#201710-201810

main88716-50681iGVF5#201811-202010

main88716-50710iGVF5#201809-202010

88718LCLAMP, PIPING

main88718-2D150×2iVXFA5#201712-202008

88718MCLAMP, PIPING

main88718-50390×2iVXFA5#201712-202008

88718NCLAMP, PIPING

main88718-47090iGVF5#201710-202010

88718QCLAMP, PIPING

main88718-32220iVXFA5#201710-202008

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iVXFA5#201710-202008

88892XCOVER, COOLER, NO.2

main88892-50120supersedes 88892-50120iGVF5#201710-202010

89639DCLAMP, AIRCONDITIONER TUBE

main89639-58020iVXFA5#201712-202008

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506322

main90105-06322

9010506337

main90105-06337

9010506347

main90105-06347

9011906A11

main90119-06A11

9017806026

main90178-06026

91551A0630

main91551-A0630

31 parts on this diagram · 10 diagrams in section
