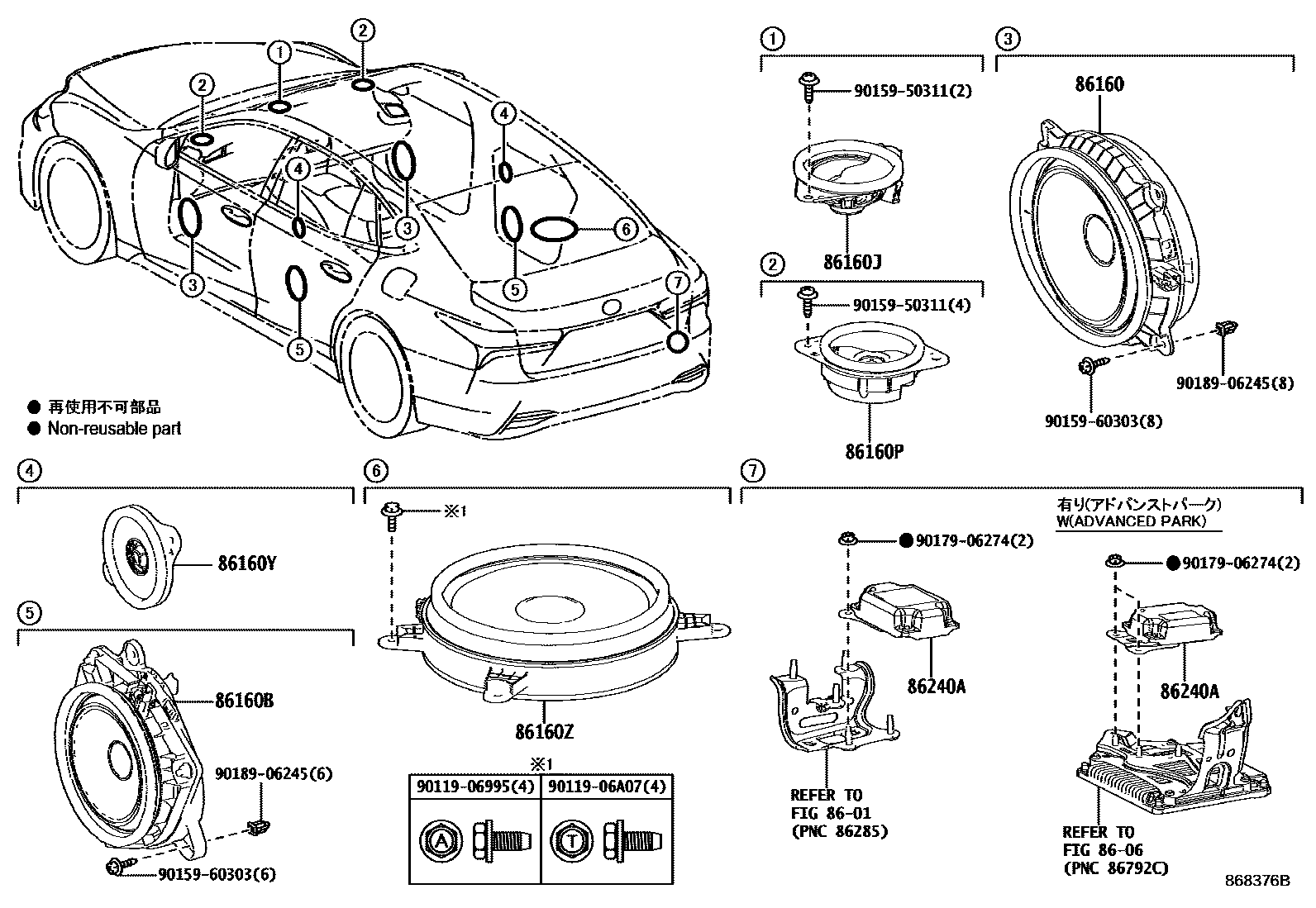

SPEAKER

0001 1������ 0002 1���������

8601

8606

86160SPEAKER ASSY, FRONT NO.1

main86160-50320iVXFA5#201710-202210

main86160-60740iGVF5#,VXFA5#202210-202211

sub86160-60741

main86160-60741iGVF5#,VXFA5#202212

86160BSPEAKER ASSY, REAR

main86150-50320iGVF5#201710-202010

main86150-50330iGVF5#201710-202010

86160JSPEAKER ASSY, FRONT NO.3

main86160-11060iGVF5#,VXFA5#201710-202010

86160PSPEAKER ASSY, FRONT NO.2

main86160-11070iGVF5#201710-202210

main86160-60730iGVF5#,VXFA5#202210

86160YSPEAKER ASSY, REAR NO.2

main86150-50340iVXFA5#201710-202010

86160ZSPEAKER ASSY, REAR NO.3

main86150-50380iVXFA5#201710-202010

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-50030iGVF5#201710-201711

sub86240-50031

main86240-50031iGVF5#,VXFA5#201711-201808

sub86240-50032

main86240-50032iVXFA5#201809-202010

sub86240-50033

main86240-50033iGVF5#,VXFA5#202010-202210

main86240-50040iGVF5#,VXFA5#202210-202310

main86240-50070iGVF5#,VXFA5#202310

9011906995

main90119-06995

9011906A07

main90119-06A07

9015950311

main90159-50311

9015960303

main90159-60303

9017906274

main90179-06274

9018906245

main90189-06245

15 parts on this diagram · 2 diagrams in section
