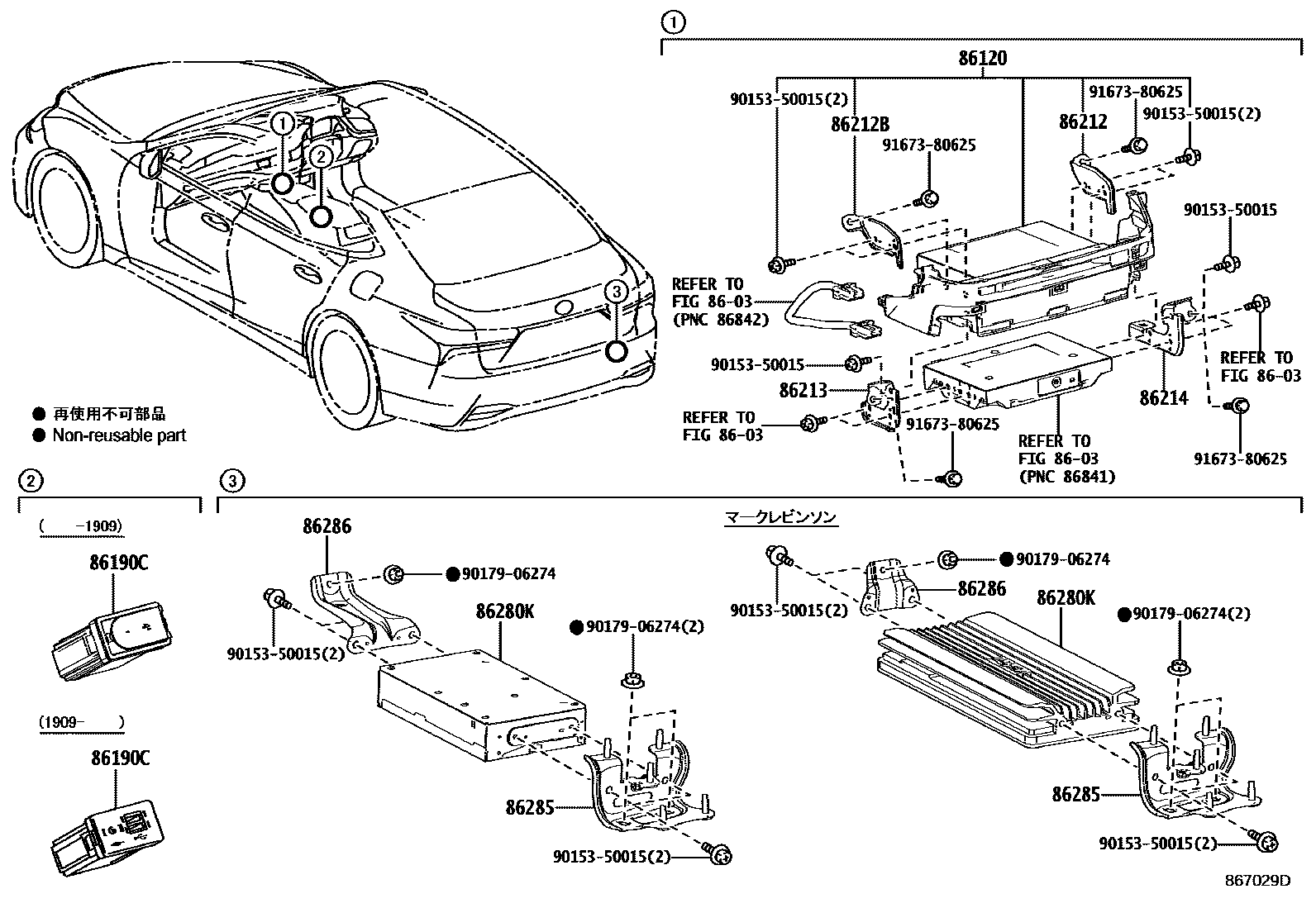

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������

8603

86120RECEIVER ASSY, RADIO

main86120-50V70iVXFA5#201710-202010

main86120-50Z90iGVF5#,VXFA5#202010-202210

main86130-50G00iGVF5#,VXFA5#202210-202211

main86130-50G01iGVF5#,VXFA5#202211-202310

main86130-50L60iGVF5#,VXFA5#202310-202406

main86130-50L61iGVF5#,VXFA5#202407-202412

main86130-50L62iGVF5#,VXFA5#202501

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-11010iGVF5#,VXFA5#201710-201909

main86190-24030iGVF5#,VXFA5#201909-202210

main86190-48090iGVF5#,VXFA5#202210

86212BRACKET, RADIO, NO.2

main86212-50100iVXFA5#201710-202210

86212BBRACKET, RADIO, NO.1

main86211-50100iGVF5#201710-202210

86213BRACKET, RADIO, NO.3

main86211-50110iGVF5#,VXFA5#202210

main86211-50130iGVF5#201710-202210

86214BRACKET, RADIO, NO.4

main86212-50120iVXFA5#201710-202210

main86212-50130iGVF5#,VXFA5#202210

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-50370iGVF5#201710-201711

sub86280-50371

main86280-50371iGVF5#,VXFA5#201712-202210

main86280-50540iGVF5#,VXFA5#202210

86285BRACKET, AMPLIFIER, NO.1

main86285-50150iVXFA5#201710-202210

main86285-50170iGVF5#202010

86286BRACKET, AMPLIFIER, NO.2

main86286-50090iVXFA5#201710-202210

main86286-50130iGVF5#,VXFA5#202210

9015350015

main90153-50015

9017906274

main90179-06274

9167380625

main91673-80625

13 parts on this diagram · 3 diagrams in section
