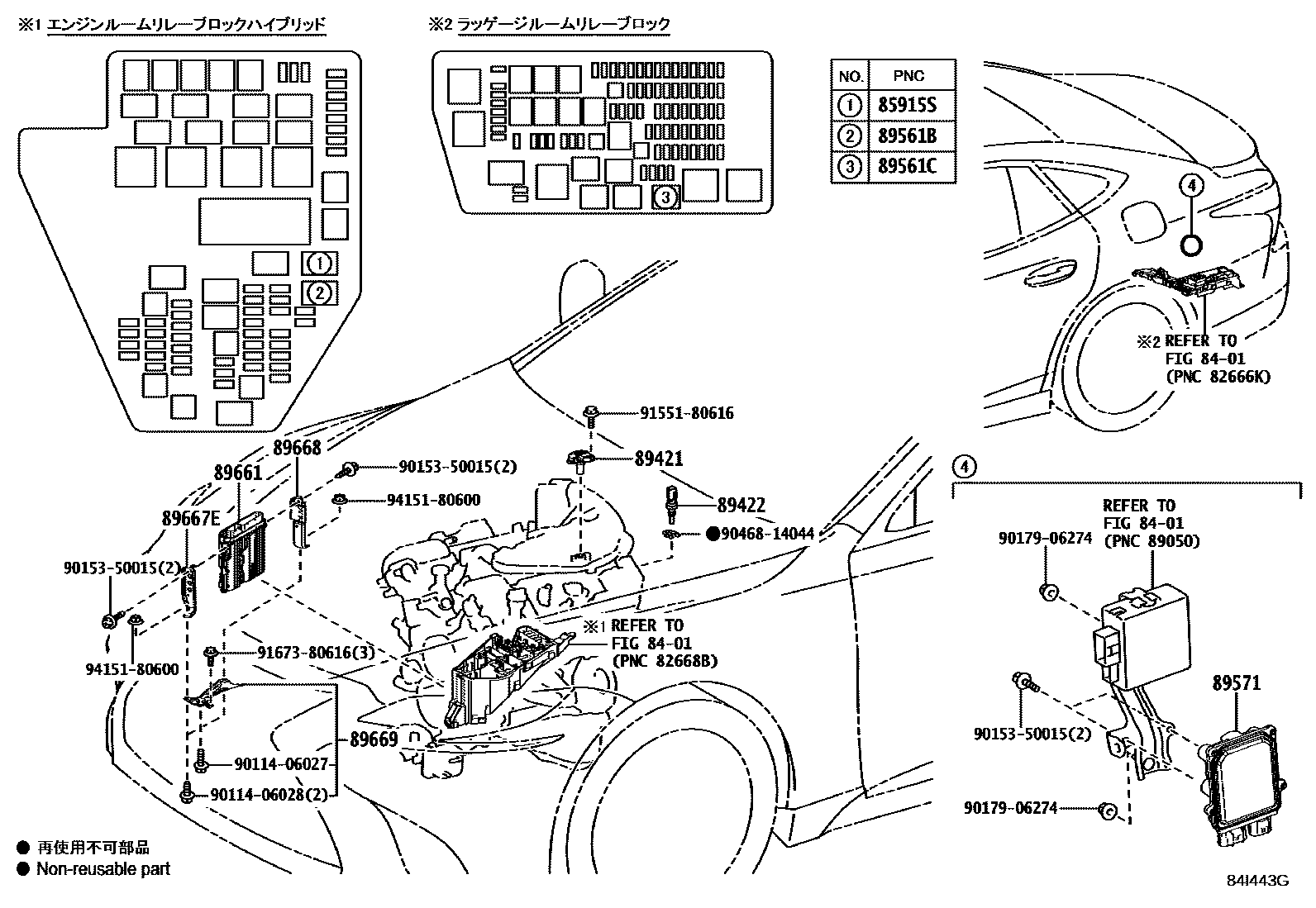

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02025iVXFA5#202010

main90987-02027iGVF5#202010

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010×2iVXFA5#202010

main89421-47010iGVF5#202010

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030×2iVXFA5#201712-202008

main89422-47010iGVF5#202010

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90987-02025iVXFA5#201712-202008

main90987-02027iGVF5#201710-202010

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90987-02027iGVF5#,VXFA5#201710-202010

89571COMPUTER, FUEL PUMP CONTROL

main89571-58010iGVF5#,VXFA5#201710-202005

main89571-58020iGVF5#,VXFA5#202010

89661COMPUTER, ENGINE CONTROL

main89661-50K00iGVF50202210-202310

main89661-50K40iVXFA50201909-202008

main89661-50K50iVXFA55201909-202008

main89661-50N90iGVF50201710-201909

main89661-50R50iGVF50201909-202010

main89661-50R60iGVF55201909-202010

main89661-50R90iVXFA50202010-202111

main89661-50S00iVXFA55202010-202111

main89661-50S20iVXFA50201712-201809

main89661-50S80iVXFA55201712-201809

main89661-50T70iGVF55201710-201909

main89661-50V10iVXFA50201809-201909

main89661-50V20iVXFA55201809-201909

main89661-50V90iVXFA50202111-202210

main89661-50X20iGVF50202010-202210

main89661-50Y70iVXFA55202111-202210

main89661-50Z60iVXFA50202210-202310

main89661-50Z70iVXFA55202210-202310

main89661-5A070iVXFA5#202310

main89661-5A100iGVF50202310

main89661-50R10supersedes 89661-50R20iGVF55202210-202310

main89661-50X40supersedes 89661-50X50iGVF55202104-202210

main89661-5A110supersedes 89661-5A120iGVF55202310-202510

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-11030iGVF5#201710-202010

main89667-50100iVXFA5#201712-202008

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-11030iGVF5#202010

main89668-50090iVXFA5#202010

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-11020iVXFA5#202010

main89669-11030iGVF5#201710-202010

9011406027

main90114-06027

9011406028

main90114-06028

9015350015

main90153-50015

9017906274

main90179-06274

9046814044

main90468-14044

9155180616

main91551-80616

9167380616

main91673-80616

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section
