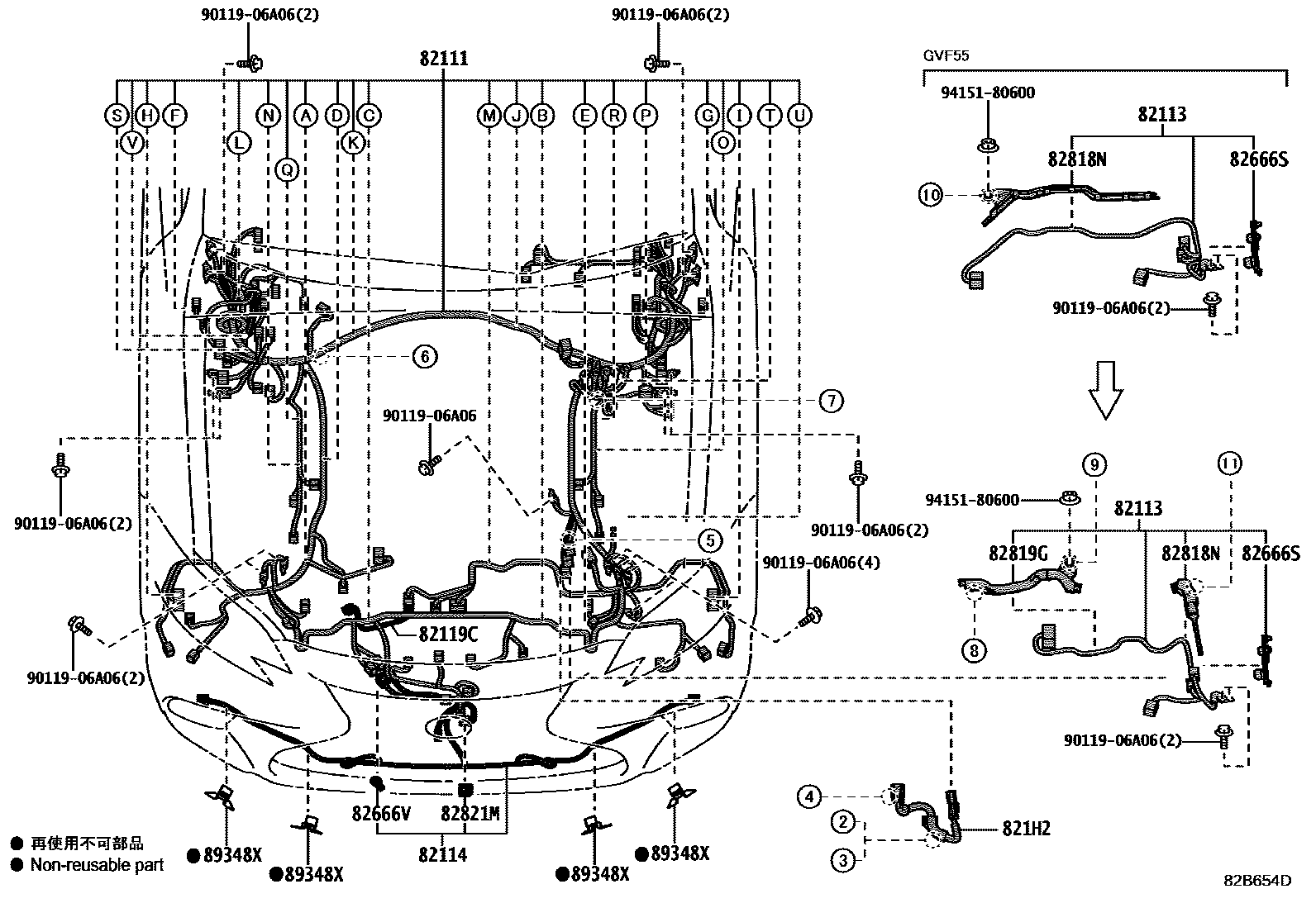

82111WIRE, ENGINE ROOM MAIN

main82111-50W20iVXFA55201712-201809

main82111-50W21iVXFA55201809-201909

main82111-50W22iVXFA55201909-202008

main82111-50X10iGVF55201710-201809

main82111-50X11iGVF55201809-201909

main82111-5A050iGVF50201710-201809

main82111-5A051iGVF50201809-201909

main82111-5A130iVXFA50201712-201809

main82111-5A131iVXFA50201809-201909

main82111-5A132iVXFA50201909-202008

main82111-5A300iVXFA50202310-202501

main82111-5A301iVXFA50202501

main82111-5A780iGVF50201909-202010

main82111-5A800iGVF55201909-202010

main82111-5A880iGVF55202010-202210

main82111-5A881iGVF55202210-202310

main82111-5A882iGVF55202310-202501

main82111-5A883iGVF55202501

main82111-5AA13iGVF50202310-202411

main82111-5AA14iGVF50202411

main82111-5AA20iGVF50202010-202210

main82111-5AA21iGVF50202210-202310

main82111-5AD70iVXFA55202010-202210

main82111-5AD71iVXFA55202210-202310

main82111-5AD72iVXFA55202310-202501

main82111-5AD73iVXFA55202501

main82111-5AE10iVXFA50202010-202210

main82111-5AE11iVXFA50202210-202310

82113WIRE, ENGINE ROOM, NO.3

main82113-50130iGVF50201710-202010

main82113-50140iVXFA55201712-202008

main82113-50160iGVF50202010-202310

main82113-50170iGVF55201710-202010

main82113-50190iVXFA50201712-202008

main82113-50200iGVF55202010-202310

82114WIRE, ENGINE ROOM, NO.4

main82114-50110iGVF5#,VXFA5#201710-201909

main82114-50111iGVF5#201909-202010

main82114-50170iGVF5#202010-202210

main82114-50171iGVF5#202210-202310

main82114-50172iVXFA5#202310

main82114-50210iVXFA5#202010-202210

main82114-50211iVXFA5#202210-202310

main82114-50250iGVF5#202310

82119CWIRE, ENGINE ROOM, NO.5

main82119-50020iGVF5#201710-202010

821H2WIRE, HV AIR CONDITIONER

main821H2-50030iGVF55201710-201712

main821H2-50031iGVF55201801-202010

main821H2-50040iGVF50201710-201712

main821H2-50041iGVF50201801-202010

82666SHOLDER, CONNECTOR NO.13

main82666-50A20iVXFA5#201710-202010

82666VHOLDER, CONNECTOR NO.15

main82666-50C30iVXFA5#201710-202310

82818NPROTECTOR, WIRING HARNESS, NO.14

main82817-50P60iVXFA55201710-202010

main82817-5AE30iVXFA50201710-202010

main82817-5AL00iGVF50202010-202310

main82817-62570iGVF55202010-202310

82819GPROTECTOR, WIRING HARNESS, NO.23

main82817-50P50iVXFA50201710-202010

82821MCOVER, CONNECTOR

main82821-30690iVXFA5#201710-202310

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50140iVXFA5#201710-202010

9011906A06

main90119-06A06

9415180600

main94151-80600

13 parts on this diagram · 26 diagrams in section
