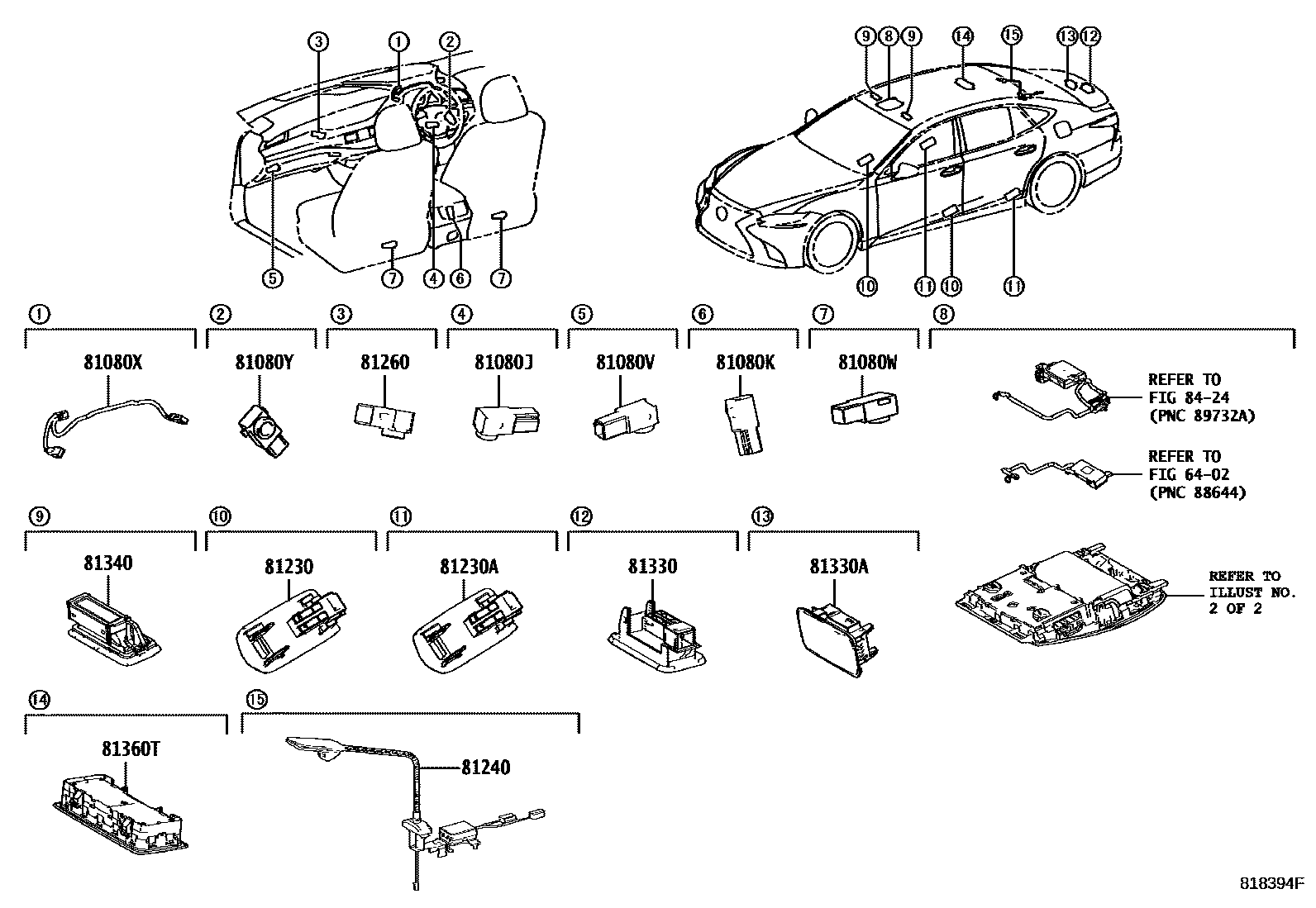

INTERIOR LAMP
6402
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3
81080XLAMP ASSY, METER HOOD ILLUMINATION
81080YLAMP ASSY, COIN BOX
81230LAMP ASSY, COURTESY
81230ALAMP ASSY, COURTESY, NO.2
81240LAMP ASSY, ROOM, NO.1
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330ALAMP ASSY, LUGGAGE COMPARTMENT, NO.2
81340LAMP ASSY, VANITY
81360TLAMP ASSY, SPOT
L WHITE,TRIM00,04,05,1#,4#,51,54,57,59
BLACK,TRIM06,2#,3#
NOBLE BROWN,TRIM46,48,49,52,53,9#
WHITE,TRIM03,05,07
BLACK,TRIM06,08,1#,2#,3#,4#,5#
BLACK,TRIM06,1#,2#,3#,4#,5#
8424
16 parts on this diagram · 3 diagrams in section
