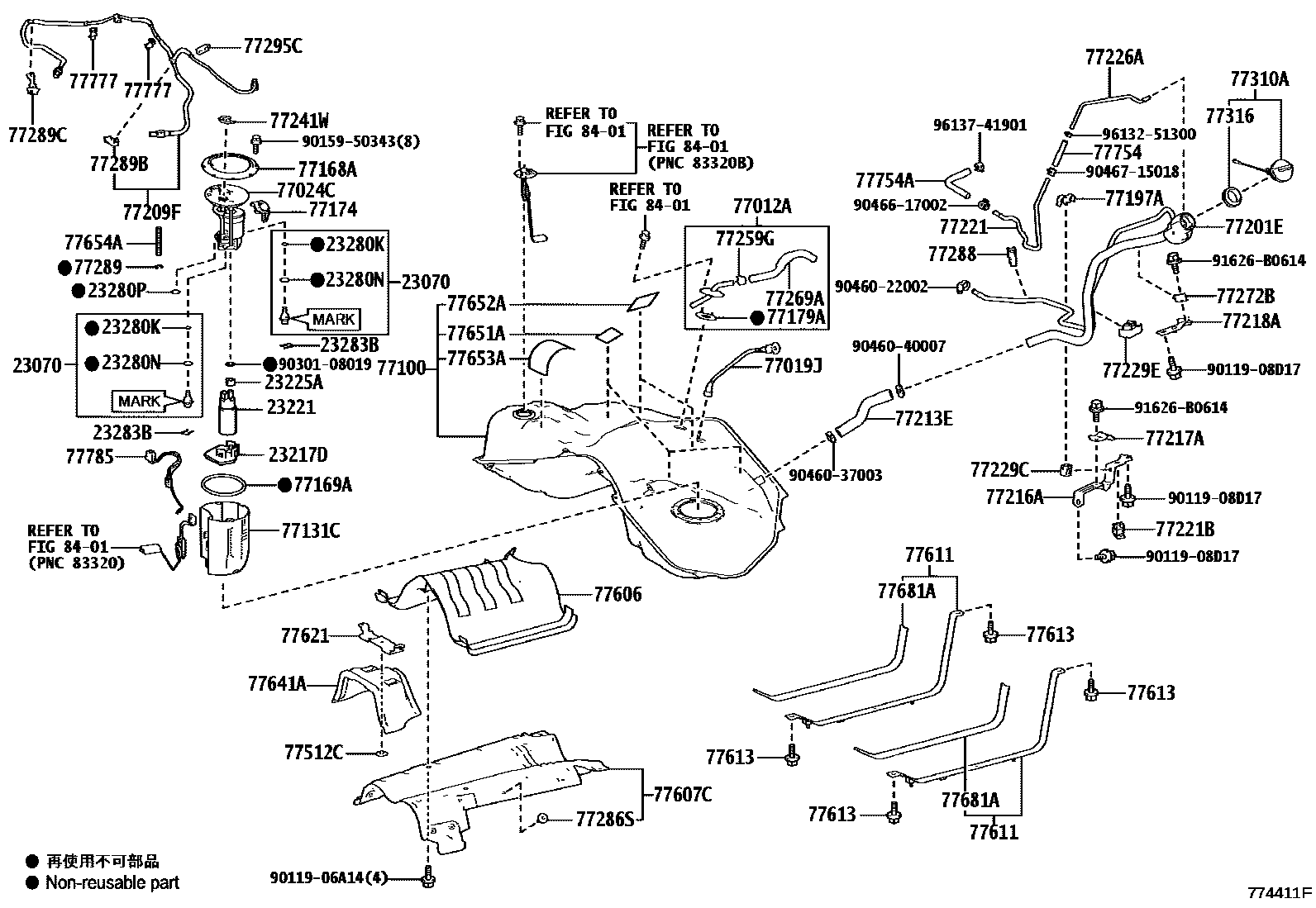

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ����� 0004 1����� ����� 0005 1����� ����� 0006 1����� ����� 0007 1����� ����� 0008 1��������������

23070VALVE ASSY, FUEL MAIN

main23070-31030iV35AFTS..VXFA5#201710-202008

main23070-36010iV35AFTS..VXFA5#201710-202008

23217DFILTER, FUEL PUMP

main23217-31080iV35AFTS..VXFA5#201710-202008

23221PUMP, FUEL

main23221-31130iV35AFTS..VXFA5#201710-202008

23225ASPACER, FUEL PUMP

main23225-31010iV35AFTS..VXFA5#201710-202008

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013×2iV35AFTS..VXFA5#201710-202008

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024×2i8GRFXS..GVF5#201710-202010

23280PRING, O(FOR FUEL PRESSURE REGULATOR), NO.3

main90301-11025i8GRFXS..GVF5#201710-202010

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-36010×2iV35AFTS..VXFA5#201710-202008

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-11040iGVF5#,VXFA5#202010-202210

main77012-11050iGVF5#,VXFA5#202210

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-11010iGVF5#,VXFA5#202210

main77019-50030iGVF5#201710-202010

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-11020iVXFA5#201710-202008

77100TANK ASSY, FUEL

main77001-11110iGVF5#201710-202010

77131CSUB-TANK, FUEL, NO.1

main77131-11010iVXFA5#201710-202008

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iVXFA5#201710-202008

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iVXFA5#201710-202008

main77169-53010iGVF5#,VXFA5#202210

77174SUPPORT, FUEL SUCTION, NO.1

main77174-48040iVXFA5#201710-202008

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iVXFA5#201710-202008

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-52010iGVF5#201710-202010

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-50220iVXFA5#201710-202008

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-11050iGVF5#201710-202010

main77209-11070iGVF5#202210

main77209-50050iVXFA5#201712-202008

main77209-50060iVXFA5#202210

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-11070iVXFA5#201710-202008

main77213-11090iGVF5#,VXFA5#202210

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-50070iGVF5#,VXFA5#202010

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-50110iGVF5#,VXFA5#202010

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-50010iVXFA5#201710-202008

77221TUBE, FUEL TANK BREATHER, NO.1

main77227-50030iVXFA5#201710-202008

77221BCLAMP, BREATHR TUBE

main77229-11110iVXFA5#201710-202008

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-50070iVXFA5#201710-202008

77229CCLAMP, BREATHER TUBE

main77229-11080iVXFA5#201710-202008

77229ECLAMP, BREATHER TUBE

main77229-11120iGVF5#201710-202010

77241WCLIP, TUBE JOINT

main77241-33011iVXFA5#201710-202008

77259GCLIP, FUEL HOSE

main90959-04001iGVF5#,VXFA5#202010

77269AHOSE, FUEL TANK BREATHER

main77269-11010iVXFA5#201710-202008

main77269-11020iGVF5#,VXFA5#202210

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-50020iVXFA5#201710-202008

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110×4iVXFA5#201710-202008

77288CLAMP, BREATHER HOSE

main77229-50080iVXFA5#201710-202008

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGVF5#201710-202010

77289BCLAMP, FUEL TUBE, NO.3

main77289-11030iGVF5#201710-202010

77289CCLAMP, FUEL TUBE, NO.4

main77289-11040iGVF5#201710-202010

77295CGROMMET, FUEL TUBE

main77295-11010iVXFA5#201803-202008

main77295-35260iGVF5#,VXFA5#201710-201802

77310ACAP ASSY, FUEL TANK

main77300-12020iVXFA5#201710-202008

main77300-48020iGVF5#,VXFA5#202210

77316GASKET, FUEL TANK CAP

main77316-52040iVXFA5#201710-202008

main77316-75020iGVF5#,VXFA5#202210

77512CBRACKET, FUEL TANK

main77512-35140iVXFA5#201710-202008

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-11020iVXFA5#201710-202008

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-11010iVXFA5#201710-202008

77611BAND, FUEL TANK

main77601-11040×2iVXFA5#201710-202008

77613BOLT, FUEL TANK BAND SET

main90119-10A05×4iVXFA5#201710-202008

77621BRACKET, FUEL TANK PROTECTOR

main77621-50040iVXFA5#201710-202008

77641APROTECTOR, FUEL TANK, NO.1

main77641-50040iVXFA5#201710-202008

77651ACUSHION, FUEL TANK, NO.1

main77651-20090×3iVXFA5#201710-202008

77652ACUSHION, FUEL TANK, NO.2

main77651-36130×2iVXFA5#201710-202008

77653ACUSHION, FUEL TANK, NO.3

main77653-35050iVXFA5#201710-202008

77654ACUSHION, FUEL TANK, NO.4

main77652-22090iVXFA5#201710-202008

77681ASEAT, FUEL TANK BAND

main77681-21020×2iGVF5#,VXFA5#202010

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-11050iVXFA5#201710-202008

77754AHOSE, CHARCOAL CANISTER OUTLET, NO.2

main77754-11060iVXFA5#201710-202008

77777BRACKET, FUEL TUBE CLAMP

main77778-50020×2iVXFA5#201710-202008

77785HARNESS, FUEL PUMP

main77785-30050iVXFA5#201710-202008

8401

9011906A14

main90119-06A14

9011908D17

main90119-08D17

9015950343

main90159-50343

9030108019

main90301-08019

9046022002

main90460-22002

9046037003

main90460-37003

9046040007

main90460-40007

9046617002

main90466-17002

9046715018

main90467-15018

91626B0614

main91626-B0614

9613251300

main96132-51300

9613741901

main96137-41901

70 parts on this diagram · 8 diagrams in section
