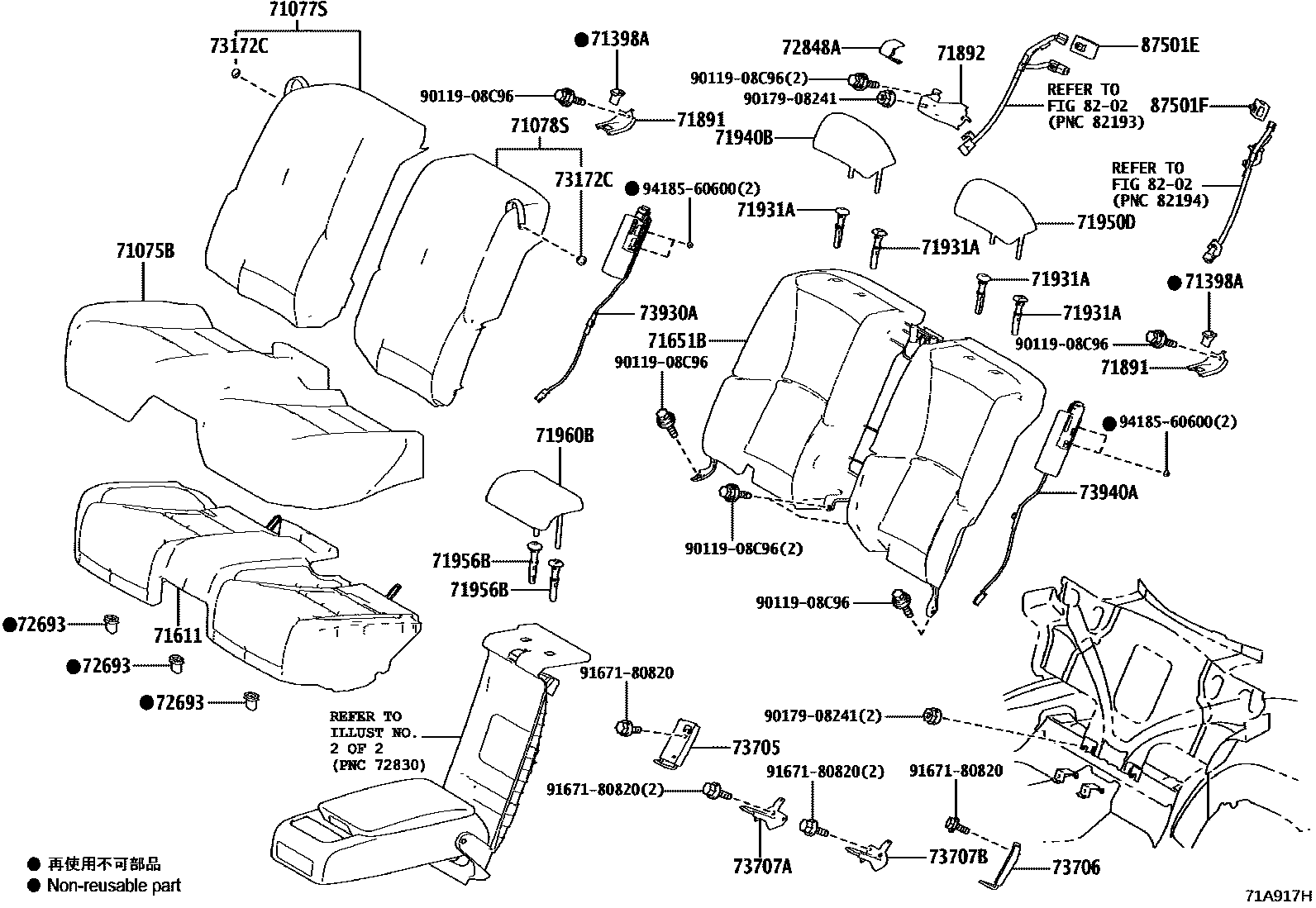

REAR SEAT & SEAT TRACK

0001 1���� ����� 0002 1���� �����(���������:PNC 72830003 1��������(RH):��(�������) 0004 1��������(RH):EXECUTIVE PACKAG0005 1��������(LH):LUXURY PACKAGE 0006 1��������(LH):EXECUTIVE PACKAG0007 1�������(RH):��(�������) 0008 1�������(RH):EXECUTIVE PACKAGE0009 1�������(LH):��(�������) 0010 1�������(LH):EXECUTIVE PACKAGE0011 1������ & ������ 0012 1�����:"EXECUTIVE" OR "VERSION0013 1�������

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-50L70-A7iGVF5#201710-202010

IVORY/IVORY,TRIM4#

main71075-50L70-B5iVXFA5#201710-202010

CHATEAU/SHELL,TRIM1#

main71075-50L70-C7iVXFA5#201710-202010

BLACK/LT.GRAY,TRIM2#

main71075-50L70-F4iGVF5#201710-202010

T.BROWM/SHELL,TRIM5#

main71075-50P40-A1iGVF5#,VXFA5#202010-202111

WHITE,TRIM0#

main71075-50P40-B1iGVF5#,VXFA5#202010-202111

CHATEAU,TRIM1#

main71075-50P40-C1iGVF5#,VXFA5#202010-202111

BLACK,TRIM2#

main71075-50P40-E1iGVF5#,VXFA5#202010-202111

HAZEL,TRIM4#

main71075-50P41-A1iGVF5#,VXFA5#202111-202510

WHITE,TRIM0#

main71075-50P41-B1iGVF5#,VXFA5#202111-202510

CHATEAU,TRIM1#

main71075-50P41-C1iGVF5#,VXFA5#202111-202510

BLACK,TRIM2#

main71075-50P41-E1iGVF5#,VXFA5#202111-202510

HAZEL,TRIM4#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-50F50-A3iVXFA5#201710-202010

IVORY/IVORY,TRIM4#

main71077-50F50-B2iGVF5#201710-202010

CHATEAU/SHELL,TRIM1#

main71077-50F50-C3iVXFA5#201710-202010

BLACK/LT.GRAY,TRIM2#

main71077-50F50-F2iVXFA5#201710-202010

T.BROWN/SHELL,TRIM5#

main71077-50P00-A2iGVF5#,VXFA5#202010-202510

WHITE,TRIM0#

main71077-50P00-B1iGVF5#,VXFA5#202010-202510

CHATEAU,TRIM1#

main71077-50P00-C1iGVF5#,VXFA5#202010-202510

BLACK,TRIM2#

main71077-50P00-E1iGVF5#,VXFA5#202010-202510

HAZEL,TRIM4#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-50J50-A3iGVF5#201710-202010

IVORY/IVORY,TRIM4#

main71078-50J50-B2iGVF5#201710-202010

CHATEAU/SHELL,TRIM1#

main71078-50J50-C3iVXFA5#201710-202010

BLACK/LT.GRAY,TRIM2#

main71078-50J50-F2iVXFA5#201710-202010

T.BROWN/SHELL,TRIM5#

main71078-50L80-A2iGVF5#,VXFA5#202010-202510

WHITE,TRIM0#

main71078-50L80-B1iGVF5#,VXFA5#202010-202510

CHATEAU,TRIM1#

main71078-50L80-C1iGVF5#,VXFA5#202010-202510

BLACK,TRIM2#

main71078-50L80-E1iGVF5#,VXFA5#202010-202510

HAZEL,TRIM4#

71398AHOLDER, REAR SEATBACK

main71398-30010iVXFA5#201710-202010

71611PAD, REAR SEAT CUSHION

main71503-50150iVXFA5#201710-202010

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-50060iVXFA5#201710-202010

71891BRACKET, REAR SEATBACK SET, NO.1

main71891-50030iVXFA5#201710-202010

71892BRACKET, REAR SEATBACK SET, NO.2

main71892-50020iVXFA5#201710-202010

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-21iGVF5#201710-202010

sub71930-44020

main71930-44020-21iGVF5#,VXFA5#202010

sub71930-44020

main71930-44020-A4iGVF5#201710-202010

sub71930-44020

main71930-44020-L3iGVF5#,VXFA5#202010

sub71930-44020

main71931-47010-A8iVXFA5#201710-202010

sub71931-47010

sub71931-42020

main71931-47010-C8iVXFA5#201710-202010

sub71931-47010

sub71931-42020

main71931-47010-C8iGVF5#,VXFA5#202010

sub71931-47010

sub71931-42020

main71931-47010-L7iGVF5#,VXFA5#202010

sub71931-47010

sub71931-42020

71940BHEADREST ASSY, REAR SEAT, RH

main71940-50750-03iGVF5#,VXFA5#202010

WHITE/MELLOW WHITE,TRIM03,05

main71940-50750-A8iVXFA5#201710-202010

IVORY/IVORY,TRIM4#

main71940-50750-B3iGVF5#201710-202010

CHATEAU/SHELL,TRIM1#

main71940-50750-B5iGVF5#,VXFA5#202010

CHATEAU/LT.BROWN,TRIM1#

main71940-50750-C4iGVF5#,VXFA5#202010

BLACK/LT.GRAY,TRIM06,08,2#

main71940-50750-C4iGVF5#201710-202010

BLACK/LT.GRAY,TRIM2#

main71940-50750-C7iGVF5#,VXFA5#202010

BLACK/FLARE RED,TRIM3#

main71940-50750-E7iGVF5#,VXFA5#202010

HAZEL/SADDLE TAN,TRIM4#

main71940-50750-F3iVXFA5#201710-202010

TOPAZ BROWN/SHELL,TRIM5#

71950DHEADREST ASSY, REAR SEAT, LH

main71940-50750-03iGVF5#,VXFA5#202010

WHITE/MELLOW WHITE,TRIM03,05

main71940-50750-A8iVXFA5#201710-202010

IVORY/IVORY,TRIM4#

main71940-50750-B3iVXFA5#201710-202010

CHATEAU/SHELL,TRIM1#

main71940-50750-B5iGVF5#,VXFA5#202010

CHATEAU/LT.BROWN,TRIM1#

main71940-50750-C4iGVF5#201710-202010

BLACK/LT.GRAY,TRIM2#

main71940-50750-C4iGVF5#,VXFA5#202010

BLACK/LT.GRAY,TRIM06,08,2#

main71940-50750-C7iGVF5#,VXFA5#202010

BLACK/FLARE RED,TRIM3#

main71940-50750-E7iGVF5#,VXFA5#202010

HAZEL/SADDLE TAN,TRIM4#

main71940-50750-F3iVXFA5#201710-202010

TOPAZ BROWN/SHELL,TRIM5#

71956BSUPPORT, REAR SEAT HEADREST

main71955-30010-A2iVXFA5#201710-202010

sub71955-30010

main71955-30010-C1iVXFA5#201710-202010

sub71955-30010

main71955-30010-C1iGVF5#,VXFA5#202010

sub71955-30010

main71955-30010-E6iGVF5#,VXFA5#202010

sub71955-30010

main71956-30030-A2iGVF5#201710-202010

sub71956-30030

main71956-30030-C1iVXFA5#201710-202010

sub71956-30030

main71956-30030-C1iGVF5#,VXFA5#202010

sub71956-30030

main71956-30030-E6iGVF5#,VXFA5#202010

sub71956-30030

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-50280-02iGVF5#201710-202010

IVORY/IVORY,TRIM4#

main71960-50280-03iVXFA55201710-202111

WHITE/WHITE,TRIM0#

main71960-50280-03iVXFA55201710-202010

main71960-50280-B5iGVF5#201710-202111

CHATEAU/CHATEAU,TRIM1#

main71960-50280-C7iGVF5#201710-202111

BLACK/BLACK,TRIM2#

main71960-50280-D6iGVF55201710-202010

main71960-50280-D6iGVF50201710-202111

RED/RED,TRIM3#

main71960-50280-E8iGVF5#,VXFA5#202010-202111

HAZEL,TRIM4#

main71960-50280-F5iVXFA5#201710-202010

T.BROWN/T.BROWN,TRIM5#

main71960-50281-05iGVF5#,VXFA5#202111-202510

WHITE,TRIM0#

main71960-50281-B7iGVF5#,VXFA5#202111-202510

CHATEAU,TRIM1#

main71960-50281-C9iGVF5#,VXFA5#202111-202510

BLACK,TRIM2#

main71960-50281-D7iGVF5#,VXFA5#202111-202510

RED,TRIM3#

main71960-50281-L0iGVF5#,VXFA5#202111-202510

HAZEL,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iVXFA5#201710-202010

main72693-12080iVXFA5#201710-202010

main72693-12080iVXFA5#201710-202010

72848ACAP, SEAT ARMREST, NO.1

main72848-50030-A0iGVF5#201710-202010

WHITE,TRIM0#

main72848-50030-A1iGVF5#201710-202010

IVORY,TRIM4#

main72848-50030-B0iVXFA5#201710-202010

CHATEAU,TRIM1#

main72848-50030-C0iVXFA5#201710-202010

BLACK,TRIM2#

main72848-50030-D0iGVF5#201710-202010

RED,TRIM3#

main72848-50030-E1iGVF5#,VXFA5#202010

HAZEL,TRIM4#

main72848-50030-F0iGVF5#201710-202010

TOPAZ BROWN,TRIM5#

73172CCAP, REAR SHOULDER BELT HANGER

main73172-50020iVXFA5#201710-202010

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-50050iVXFA5#201710-202010

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-50050iGVF5#,VXFA5#201710-201911

sub73706-50051

main73706-50051iGVF5#,VXFA5#201912-202010

73707ABRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER RH

main73707-50040iVXFA5#201710-202010

73707BBRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER LH

main73707-50050iVXFA5#201710-202010

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-50040iVXFA5#201710-202010

73940AAIRBAG ASSY, REAR SEAT, LH

main73940-50040iVXFA5#201710-202010

8202

87501ECONTROL SUB-ASSY, SEAT HEATER, RH

87501FCONTROL SUB-ASSY, SEAT HEATER, LH

9011908C96

main90119-08C96

9017908241

main90179-08241

9167180820

main91671-80820

9418560600

main94185-60600

29 parts on this diagram · 13 diagrams in section
