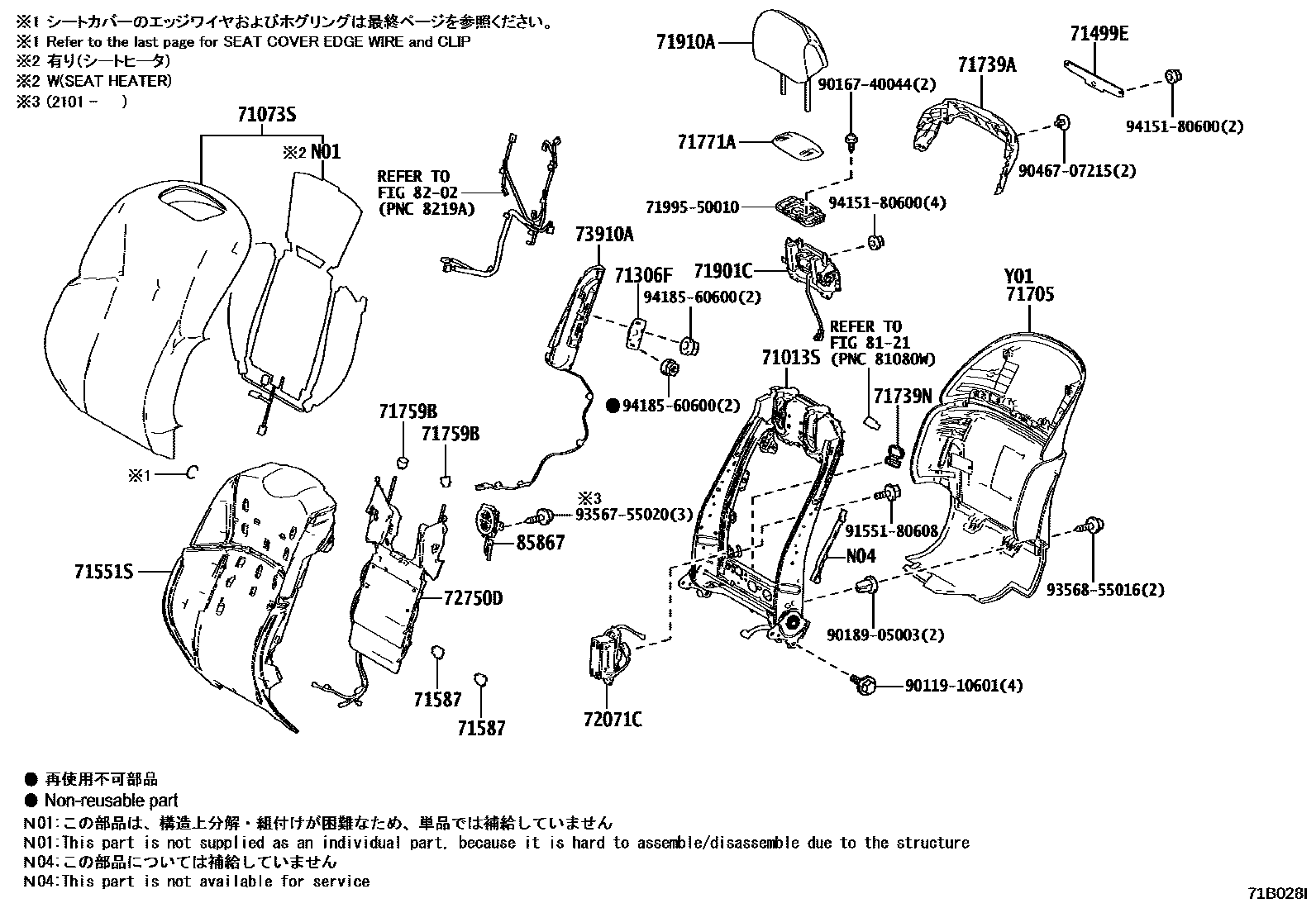

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
IVORY/IVORY,TRIM4#
CHATEAU/SHELL,TRIM1#
BLACK/LT.GRAY,TRIM2#
T.BROWM/SHELL,TRIM5#
WHITE,TRIM0#
CHATEAU,TRIM1#
BLACK,TRIM2#
HAZEL,TRIM4#
71306FBRACKET SUB-ASSY, FRONT SEAT SET, RH
71499EDAMPER, SEATBACK SPRING, RH
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
IVORY/N.BROWN,TRIM4#
WHITE,TRIM03,05
BLACK/BLACK,TRIM0#,2#,3#
BLACK/BLACK,TRIM06,08,2#,3#
CHATEAU/N.BROWN,TRIM1#
CHATEAU,TRIM1#
HAZEL,TRIM4#
T.BROWN/N.BROWN,TRIM5#
71739ABEZEL, FRONT SEATBACK
71739NBEZEL, FRONT SEATBACK, RH
71759BHOOK, FRONT SEATBACK
71771ABOARD, FRONT SEATBACK
WHITE,TRIM01,03,05,07
IVORY,TRIM40,41,44,45
CHATEAU,TRIM1#
BLACK,TRIM06,08,2#,3#
BLACK,TRIM2#,3#
OCHRE,TRIM5#
HAZEL,TRIM4#
TOPAZ BROWN,TRIM46,5#
71901CINSERT SUB-ASSY, FRONT SEAT HEADREST, RH
71910AHEADREST ASSY, FRONT SEAT
IVORY/IVORY,TRIM4#
WHITE,TRIM0#
CHATEAU/SHELL,TRIM1#
CHATEAU,TRIM1#
BLACK/LT.GRAY,TRIM2#
HAZEL,TRIM4#
T.BROWN/SHELL,TRIM5#
72071CPUMP SUB-ASSY, LUMBER SUPPORT, RH
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
73910AAIRBAG ASSY, FRONT SEAT, RH
8121
8202
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
7199550010SPRING, REAR SEAT HEADREST SET
9011910601
9016740044
9018905003
9046707215
9155180608
9356755020
9356855016
9415180600
9418560600
29 parts on this diagram · 17 diagrams in section
