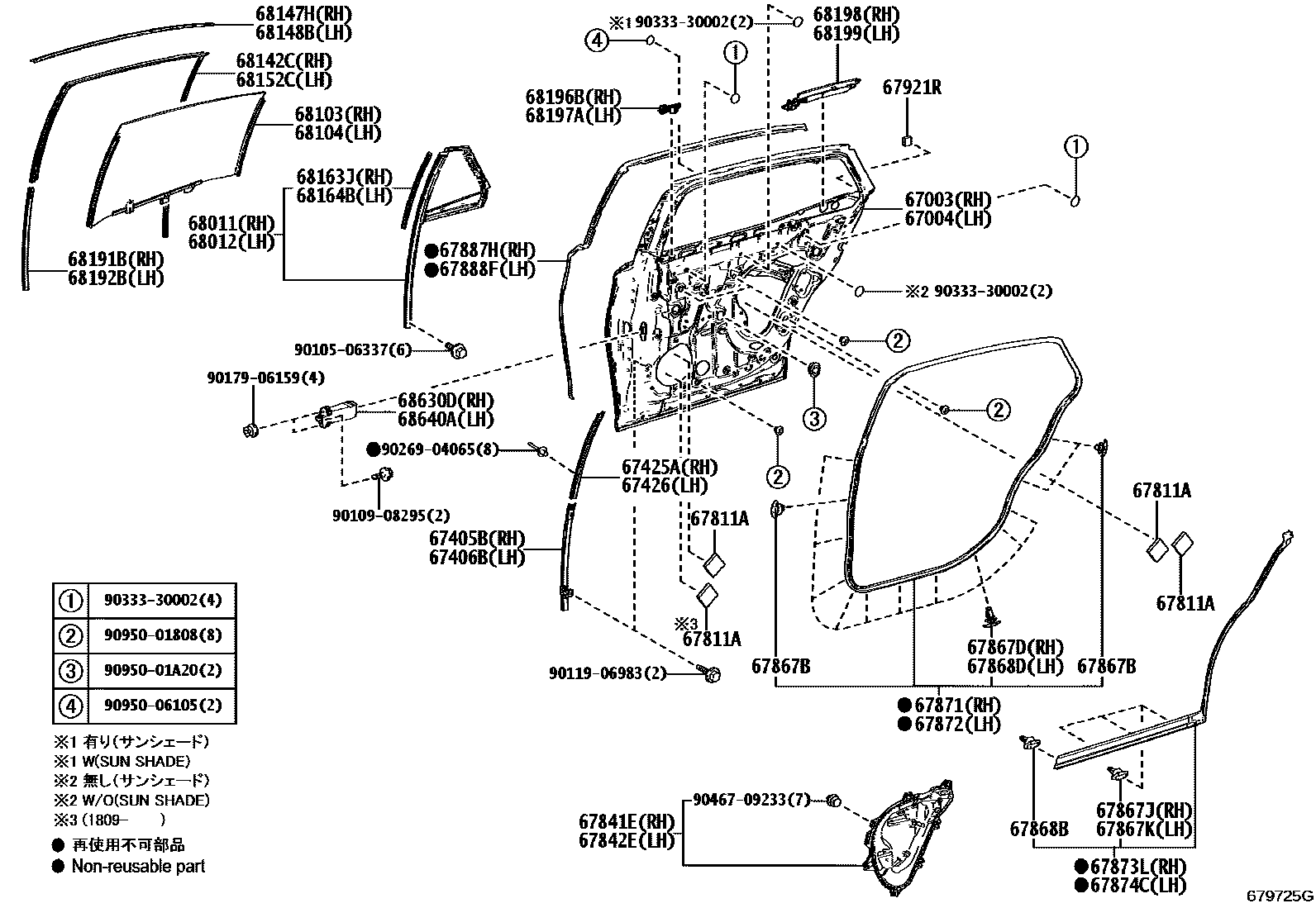

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67425AFRAME, REAR DOOR WINDOW, REAR RH
67426FRAME, REAR DOOR WINDOW, REAR LH
67811APAD, REAR DOOR SILENCER
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)
67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67873LWEATHERSTRIP, REAR DOOR, NO.5 RH
67874CWEATHERSTRIP, REAR DOOR, NO.5 LH
67887HWEATHERSTRIP, REAR DOOR, NO.2 RH
67888FWEATHERSTRIP, REAR DOOR, NO.2 LH
67921RPAD, REAR DOOR SCUFF PLATE
68011GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, RH
68012GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142CRUN, REAR DOOR GLASS, RH
68147HRUN, REAR DOOR GLASS, NO.3 RH
68148BRUN, REAR DOOR GLASS, NO.3 LH
68152CRUN, REAR DOOR GLASS, LH
68163JRUN, REAR DOOR GLASS, REAR RH
68164BRUN, REAR DOOR GLASS, REAR LH
68191BRUN, REAR DOOR GLASS, NO.2 RH
68192BRUN, REAR DOOR GLASS, NO.2 LH
68196BSEAL, REAR DOOR BELT, FRONT RH
68197ASEAL, REAR DOOR BELT, FRONT LH
68198SEAL, REAR DOOR BELT, REAR RH
68199SEAL, REAR DOOR BELT, REAR LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
9010506337
main90105-06337
9010908295
main90109-08295
9011906983
main90119-06983
9017906159
main90179-06159
9026904065
main90269-04065
9033330002
main90333-30002
9046709233
main90467-09233
9095001808
main90950-01808
9095001A20
main90950-01A20
9095006105
main90950-06105
50 parts on this diagram · 4 diagrams in section
