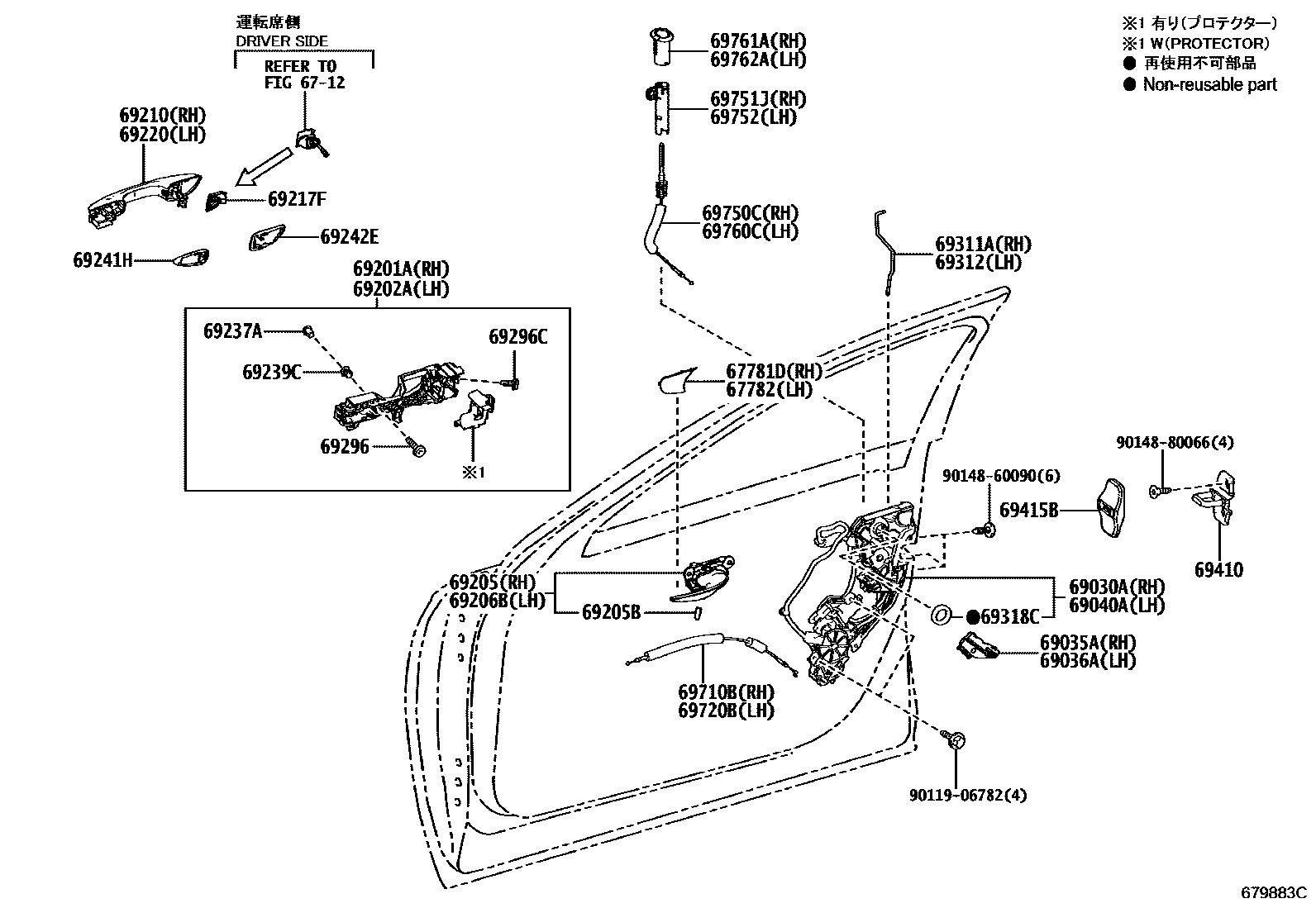

FRONT DOOR LOCK & HANDLE

6712

67781DCOVER, FRONT DOOR TRIM, UPPER RH

main67781-50370iGVF5#201710-202010

67782COVER, FRONT DOOR TRIM, UPPER LH

main67782-50380iVXFA5#201710-202008

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-50380iVXFA5#201710-202008

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iVXFA5#201710-202008

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iVXFA5#201710-202008

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-50360iVXFA5#201710-202008

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-50090iGVF5#,VXFA5#201710-201809

main69201-50101iVXFA5#201809-202008

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-50060iGVF5#,VXFA5#201710-201809

main69202-76040iVXFA5#201809-202008

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-50030iVXFA5#201710-202008

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main69275-30070×2iVXFA5#201808-202008

main90541-07050×2iGVF5#,VXFA5#201710-201807

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-50030iVXFA5#201710-202008

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-50090-B0iGVF5#,VXFA5#201710-201808

SONIC SILVER,1J2

main69210-50090-E0iGVF5#,VXFA5#201710-201808

SLEEK ECRU ME.,4U7

main69210-50090-E1iGVF5#,VXFA5#201710-201808

AMBER CS.,4X2

main69210-50091-A0iGVF5#201809-202010

WHITE NOVA GF.,083

main69210-50091-A1iGVF5#201809-202010

SONIC QUARTZ,085

main69210-50091-B0iGVF5#201809-202010

SONIC SILVER,1J2

main69210-50091-B1iVXFA5#201809-202008

SONIC TITANIUM,1J7

main69210-50091-B2iGVF5#201809-202010

MANGANESE LUSTER,1K2

main69210-50091-C0iGVF5#201809-202010

BLACK,212

main69210-50091-C1iVXFA5#201809-202008

GRAPHITE BLACK GF.,223

main69210-50091-D0iGVF5#201809-202010

RED MC.CS.,3R1

main69210-50091-D1iGVF5#201809-202010

SONIC AGATE,3U3

main69210-50091-E0iVXFA5#201809-202008

SLEEK ECRU ME.,4U7

main69210-50091-E1iGVF5#,VXFA5#201809-201909

AMBER CS.,4X2

main69210-50091-J0iVXFA5#201809-202008

HEAT BLUE CONTRAST LAYERI,8X1

main69210-50091-J1iVXFA5#201809-202008

DEEP BLUE MC.,8X5

main69210-50120-A0supersedes 69210-50091-A0iGVF5#,VXFA5#202310

main69210-50120-A1supersedes 69210-50091-A1iGVF5#,VXFA5#202310

main69210-50120-B0supersedes 69210-50091-B1iGVF5#,VXFA5#202310

main69210-50120-B1supersedes 69210-50091-B2iGVF5#,VXFA5#202310

main69210-50120-B2supersedes 69210-50091-B3iGVF5#,VXFA5#202310

main69210-50120-B3supersedes 69210-50091-B4iGVF5#,VXFA5#202310

main69210-50120-C0supersedes 69210-50091-C0iGVF5#,VXFA5#202310

main69210-50120-C1supersedes 69210-50091-C1iGVF5#,VXFA5#202310

main69210-50120-D0supersedes 69210-50091-D0iGVF5#,VXFA5#202310

main69210-50120-D1supersedes 69210-50091-D1iGVF5#,VXFA5#202310

main69210-50120-J0supersedes 69210-50091-J0iGVF5#,VXFA5#202310-202410

main69210-50120-J1supersedes 69210-50091-J1iGVF5#,VXFA5#202310

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-50060iVXFA5#201710-202008

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-50060-B0iGVF5#,VXFA5#201710-201808

SONIC SILVER,1J2

main69220-50060-E0iGVF5#,VXFA5#201710-201808

SLEEK ECRU ME.,4U7

main69220-50060-E1iGVF5#,VXFA5#201710-201808

AMBER CS.,4X2

main69220-50061-A0iVXFA5#201809-202008

WHITE NOVA GF.,083

main69220-50061-A1iVXFA5#201809-202008

SONIC QUARTZ,085

main69220-50061-B0iVXFA5#201809-202008

SONIC SILVER,1J2

main69220-50061-B1iVXFA5#201809-202008

SONIC TITANIUM,1J7

main69220-50061-B2iVXFA5#201809-202008

MANGANESE LUSTER,1K2

main69220-50061-C0iVXFA5#201809-202008

BLACK,212

main69220-50061-C1iVXFA5#201809-202008

GRAPHITE BLACK GF.,223

main69220-50061-D0iVXFA5#201809-202008

RED MC.CS.,3R1

main69220-50061-D1iVXFA5#201809-202008

SONIC AGATE,3U3

main69220-50061-E0iVXFA5#201809-202008

SLEEK ECRU ME.,4U7

main69220-50061-E1iGVF5#,VXFA5#201809-201909

AMBER CS.,4X2

main69220-50061-J0iGVF5#201809-202010

HEAT BLUE CONTRAST LAYERI,8X1

main69220-50061-J1iGVF5#201809-202010

DEEP BLUE MC.,8X5

main69220-50090-A0supersedes 69220-50061-A0iGVF5#,VXFA5#202310

main69220-50090-A1supersedes 69220-50061-A1iGVF5#,VXFA5#202310

main69220-50090-B0supersedes 69220-50061-B1iGVF5#,VXFA5#202310

main69220-50090-B1supersedes 69220-50061-B2iGVF5#,VXFA5#202310

main69220-50090-B2supersedes 69220-50061-B3iGVF5#,VXFA5#202310

main69220-50090-B3supersedes 69220-50061-B4iGVF5#,VXFA5#202310

main69220-50090-C0supersedes 69220-50061-C0iGVF5#,VXFA5#202310

main69220-50090-C1supersedes 69220-50061-C1iGVF5#,VXFA5#202310

main69220-50090-D0supersedes 69220-50061-D0iGVF5#,VXFA5#202310

main69220-50090-D1supersedes 69220-50061-D1iGVF5#,VXFA5#202310

main69220-50090-J0supersedes 69220-50061-J0iGVF5#,VXFA5#202310-202410

main69220-50090-J1supersedes 69220-50061-J1iGVF5#,VXFA5#202310

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2iGVF5#201710-202010

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2iGVF5#201710-202010

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-50040iVXFA5#201710-202008

main69242-50040iGVF5#,VXFA5#202010

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-50050iGVF5#201710-202010

main69242-50050iGVF5#,VXFA5#202010

69296SCREW, DOOR INSIDE HANDLE

main69296-30010×2iVXFA5#201710-202008

main90148-50006×2iGVF5#,VXFA5#202202

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003iGVF5#,VXFA5#202010

main90148-50008iVXFA5#201809-202008

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-50070iVXFA5#201710-202008

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-50070iVXFA5#201710-202008

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iVXFA5#201710-202008

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-50030×2iVXFA5#201710-202008

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-50020×2iVXFA5#201710-202008

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-50040iVXFA5#201710-202008

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-50040iVXFA5#201710-202008

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-50060iGVF5#,VXFA5#202010

69751JHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH

main69751-50010iGVF5#201710-202010

69752HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH

main69751-50010iVXFA5#201710-202008

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-50060iVXFA5#201710-202008

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-50050-C0iGVF5#201710-202010

BLACK,TRIM00,06,2#,36,52,53

main69761-50050-D0iVXFA5#201710-202008

CRIMSON,TRIM30,32,33

main69761-50050-E0iVXFA5#201710-202008

NOBLE BROWN,TRIM04,05,1#,4#,51,54,57,59,9#

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69761-50050-C0iGVF5#201710-202010

BLACK,TRIM00,06,2#,36,52,53

main69761-50050-D0iVXFA5#201710-202008

CRIMSON,TRIM30,32,33

main69761-50050-E0iVXFA5#201710-202008

NOBLE BROWN,TRIM04,05,1#,4#,51,54,57,59,9#

9011906782

main90119-06782

9014860090

main90148-60090

9014880066

main90148-80066

37 parts on this diagram · 1 diagram in section
