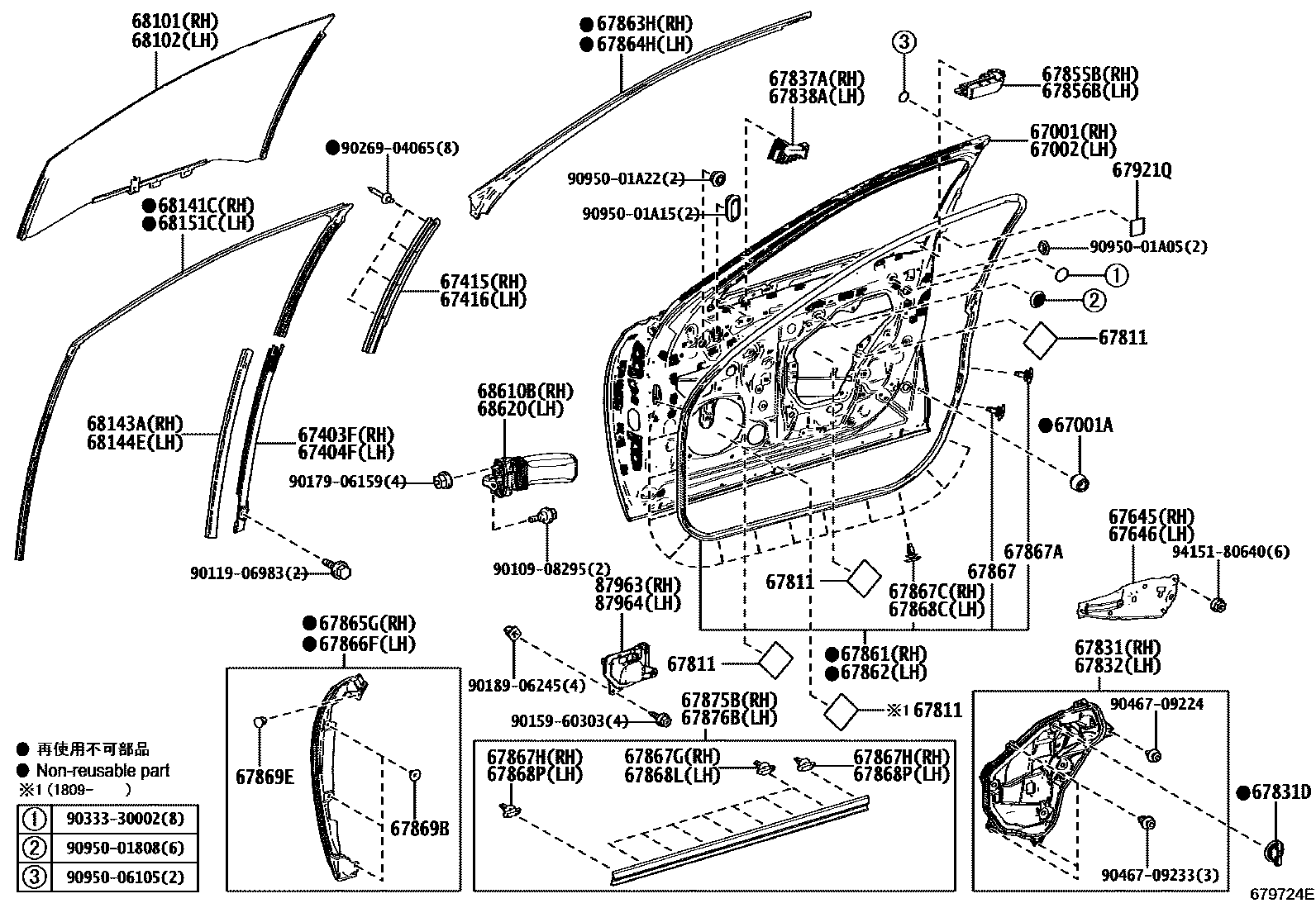

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-50140i202010

67001ACUSHION, FRONT DOOR PANEL

main90541-09150×2i202010

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-50140i202010

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-50030i201710-202008

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-50030i202010

67415FRAME, FRONT DOOR WINDOW, REAR RH

main67415-50020i201710-202008

67416FRAME, FRONT DOOR WINDOW, REAR LH

main67416-50020i201710-202008

67645BRACKET, FRONT DOOR ARMREST SET, RH

main67645-50050i201710-202008

67646BRACKET, FRONT DOOR ARMREST SET, LH

main67646-50040i201710-202008

67811PAD, FRONT DOOR SILENCER

main67811-30100×6i201710-201809

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-50060i201710-202008

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-50010×8i201710-202008

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-50040i201710-202008

67837ASEAL, FRONT DOOR VENT, RH

main67837-50060i201710-202008

67838ASEAL, FRONT DOOR VENT, LH

main67838-50010i201710-202008

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-50110i201710-202008

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-50040i201710-202008

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-50060i201710-202008

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-50050i201710-202008

67863HWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-50050i201710-202010

67864HWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-50050i201710-202008

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-50050i201710-202008

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-50050i201710-202008

67867CLIP, DOOR WEATHERSTRIP

main67867-50130×2i201710-201806

main67867-50190×2i201807-202008

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-50140×2i201710-202008

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-50090×13i201710-201806

main67867-50150×13i201807-202008

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-50090×7i201710-201806

main67867-50150×7i201807-202008

67867HRETAINER, DOOR WEATHERSTRIP, RH

main67867-50130×2i201710-201806

main67867-50190×2i201807-202008

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-50100×13i201710-201807

main67867-50160×13i201807-202008

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-50100×7i201710-201806

main67867-50160×7i201807-202008

67868PRETAINER, DOOR WEATHERSTRIP, NO.1 LH

main67867-50130×2i201710-201806

main67867-50190×2i201807-202008

67869BCLIP, FRONT DOOR WEATHERSTRIP

main90467-06195×6i201710-202008

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-08010×2i201710-202008

67875BWEATHERSTRIP, FRONT DOOR, NO.4 RH

main67875-50020i201710-202008

67876BWEATHERSTRIP, FRONT DOOR, NO.4 LH

main67876-50020i201710-202008

67921QPAD, FRONT DOOR SCUFF PLATE

main67921-50060×2i201710-202008

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-50260i201710-202008

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-50250i201710-202008

68141CRUN, FRONT DOOR GLASS, RH

main68141-50050i201710-202008

68143ARUN, FRONT DOOR GLASS, NO.2

main68143-50010i201710-202008

68144ERUN, FRONT DOOR GLASS, NO.2 LH

main68144-50010i201710-202008

68151CRUN, FRONT DOOR GLASS, LH

main68151-50060i201710-202008

68610BCHECK ASSY, FRONT DOOR, RH

main68610-50060i201710-202008

68620CHECK ASSY, FRONT DOOR, LH

main68620-50060i201710-202008

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-50010i201710-202008

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-50010i201710-202008

9010908295

main90109-08295

9011906983

main90119-06983

9015960303

main90159-60303

9017906159

main90179-06159

9018906245

main90189-06245

9026904065

main90269-04065

9033330002

main90333-30002

9046709224

main90467-09224

9046709233

main90467-09233

9095001808

main90950-01808

9095001A05

main90950-01A05

9095001A15

main90950-01A15

9095001A22

main90950-01A22

9095006105

main90950-06105

9415180640

main94151-80640

61 parts on this diagram · 2 diagrams in section
