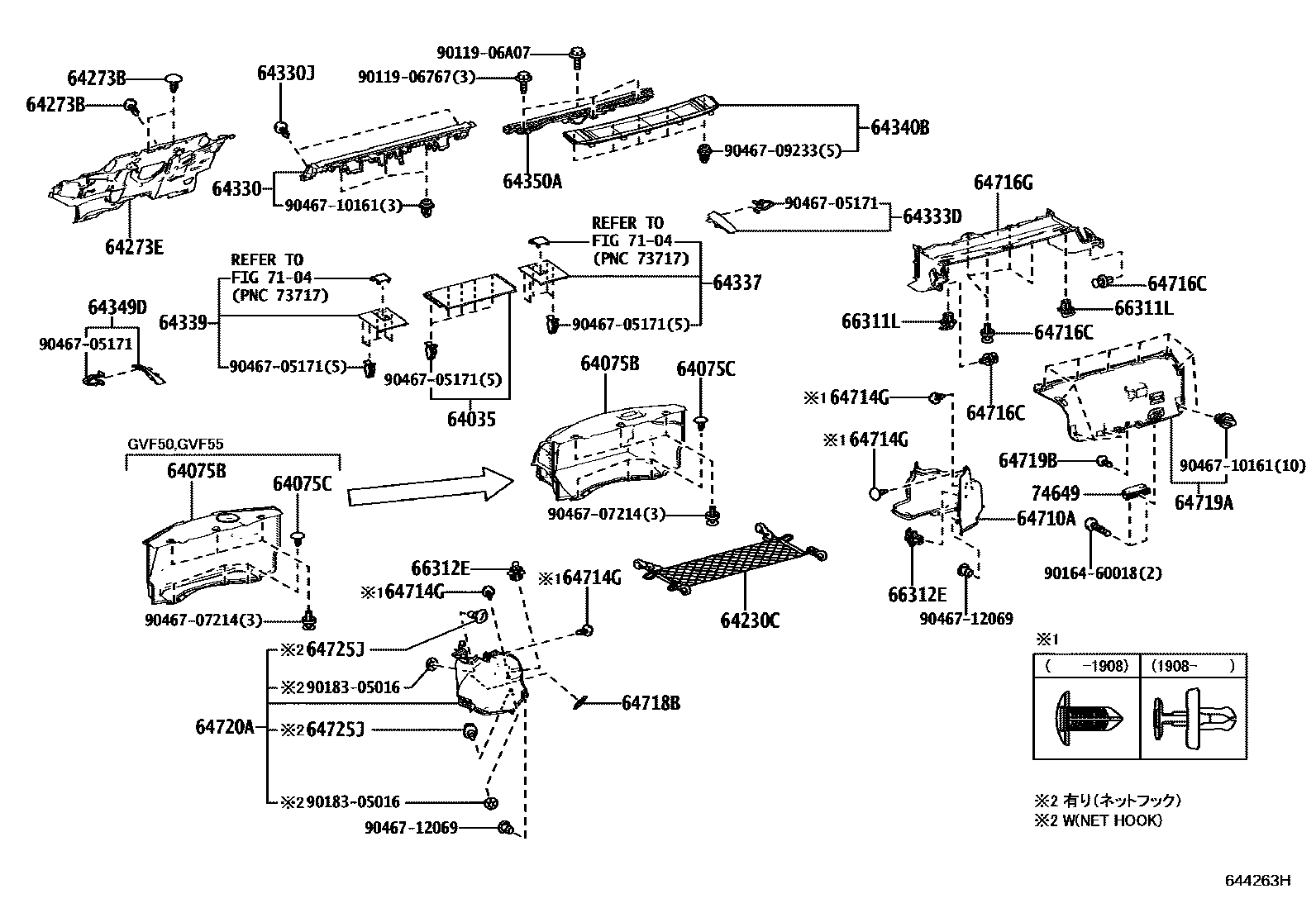

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64035GRILLE SUB-ASSY, CENTER SPEAKER, NO.1
BLACK,TRIM0#,1#,2#,3#,4#
64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#
64075CCLIP, LUGGAGE COMPARTMENT TRIM COVER
BLACK,TRIM0#,1#,2#,3#,4#
64230CNET ASSY, ROOM PARTITION
64273BCLIP
BLACK
64273EPAD, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,1#,2#,3#,4#,5#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK
64333DCOVER, PACKAGE TRAY TRIM SIDE, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#
64337GARNISH, PACKAGE TRAY TRIM, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#
64339GARNISH, PACKAGE TRAY TRIM, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#
64349DCOVER, PACKAGE TRAY TRIM SIDE, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#
64350ASHADE ASSY, REAR WINDOW
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#,3#,4#,5#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK
66311LHOOK,ROPE
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
66312EHOOK, ROPE, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
7104
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
9011906767
main90119-06767
9011906A07
main90119-06A07
9016460018
main90164-60018
9018305016
main90183-05016
9046705171
main90467-05171
9046707214
main90467-07214
9046709233
main90467-09233
9046710161
main90467-10161
9046712069
main90467-12069
36 parts on this diagram · 3 diagrams in section
