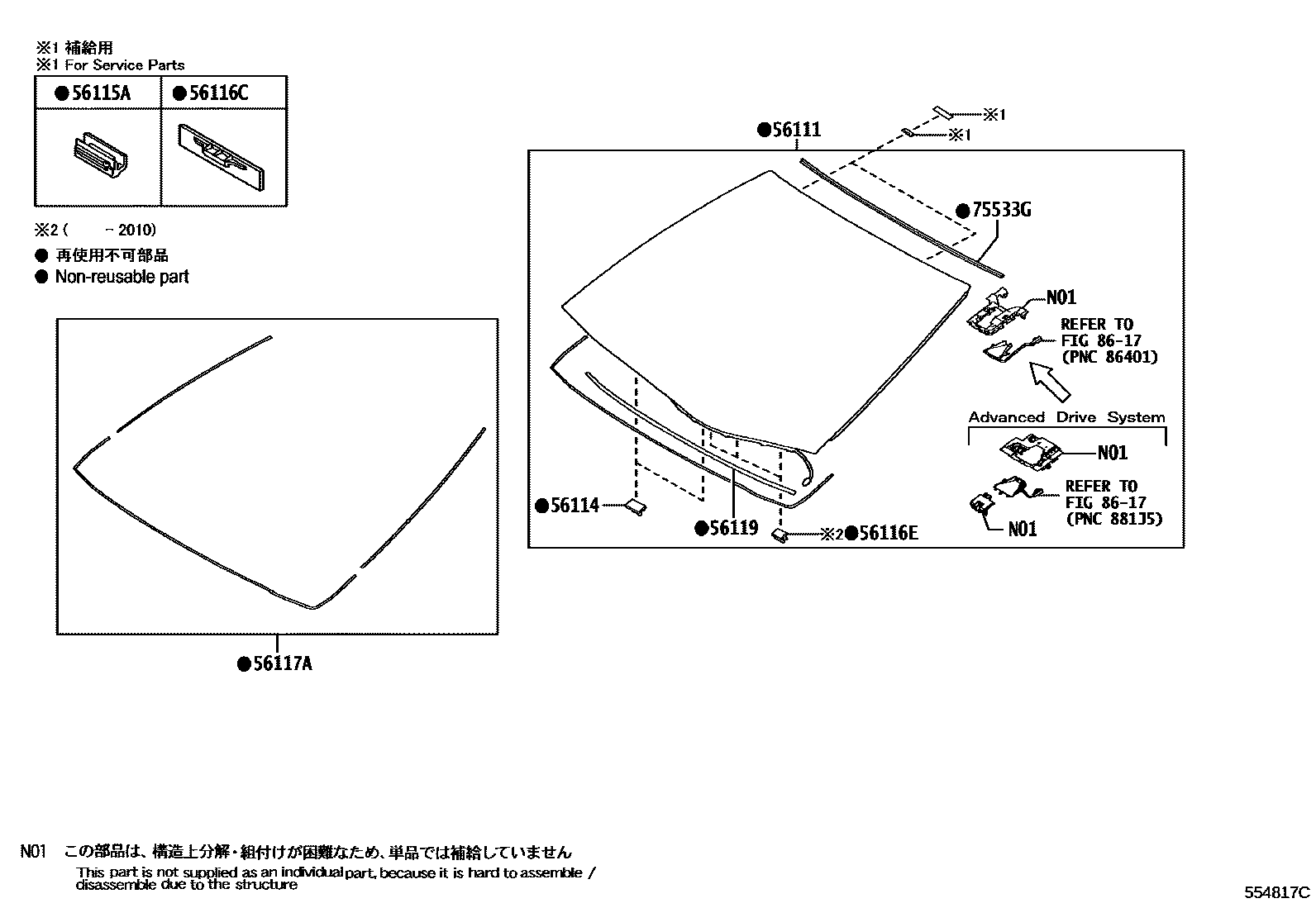

COWL PANEL & WINDSHIELD GLASS

56111GLASS, WINDSHIELD

main56101-50901supersedes 56101-50904i201710-201809

main56101-50902supersedes 56101-50904i201710-201809

main56101-50903supersedes 56101-50904i201710-201809

main56101-50905supersedes 56101-50930i201809-202002

main56101-50906supersedes 56101-50904i201710-201809

main56101-50928supersedes 56101-50930i201809-201907

main56101-50941supersedes 56101-50942i201907-202008

main56101-50952supersedes 56101-50942i202002-202010

main56101-50953supersedes 56101-50942i202002-202010

main56101-50958supersedes 56101-50959i202010-202203

main56101-50973i202104-202310

main56101-50974i202104-202310

main56101-50977supersedes 56101-50978i202203-202310

main56101-5A927supersedes 56101-5A928i202310

main56101-5A944i202310-202510

main56101-5A945i202310-202510

56114RETAINER, WINDSHIELD GLASS

main56114-50040×2i201710-202008

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120i201710-202008

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i201710-202008

56116ESTOPPER, WINDSHIELD GLASS, NO.2

main56116-50050×3i201906-202010

56117ADAM, WINDOW GLASS ADHESIVE

56119SEAL, WINDSHIELD GLASS

main56119-50080i201710-202008

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-50070i201710-202008

8617

9 parts on this diagram · 2 diagrams in section
