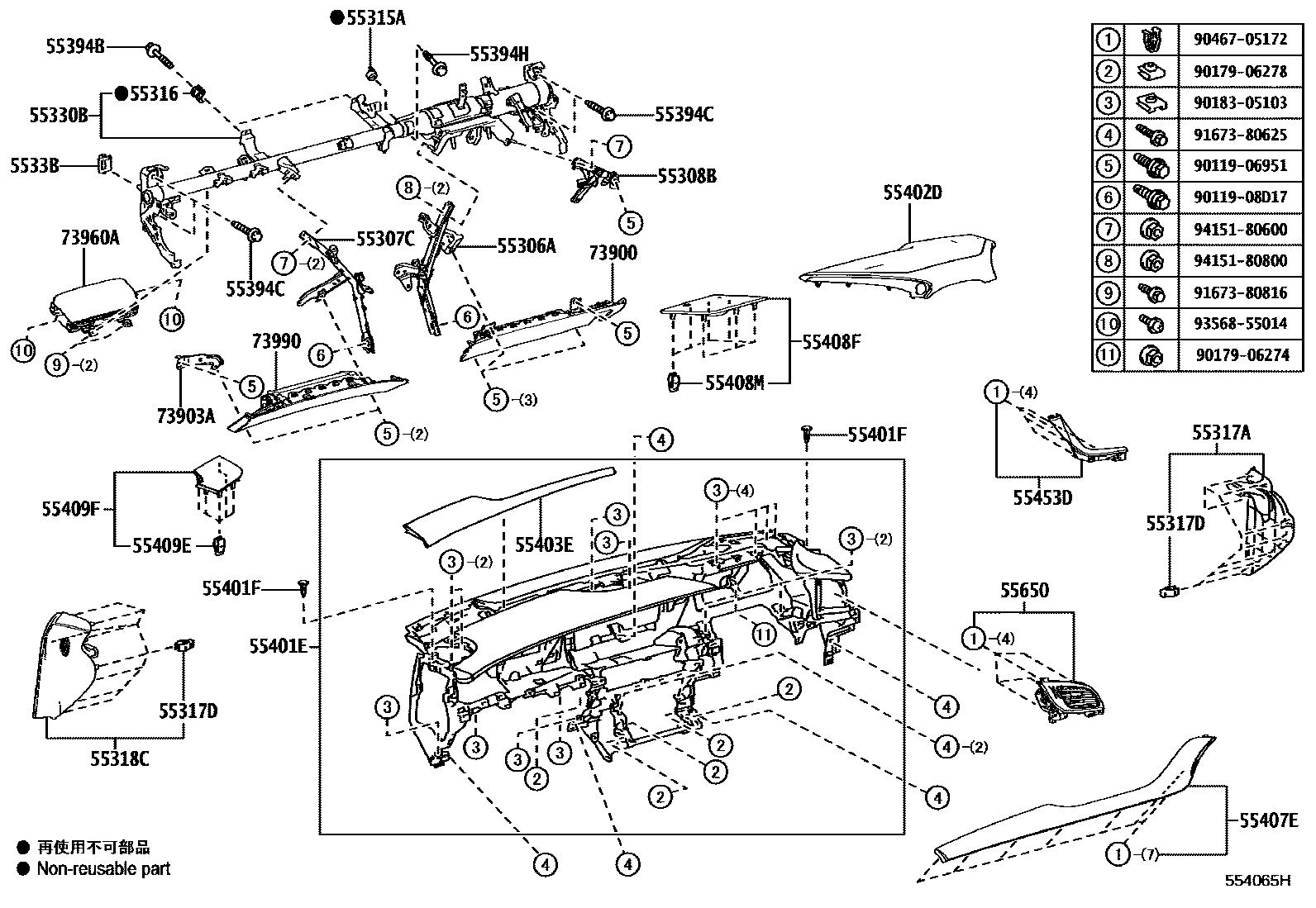

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55315ASPACER, INSTRUMENT PANEL, NO.1
55316SPACER, INSTRUMENT PANEL, NO.2
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM00,06,2#,36,52,53
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM04,05,1#,4#,51,54,57,59,9#
55317DCLIP, INSTRUMENT SIDE PANEL
MELLOW WHITE
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM00,06,2#,36,52,53
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM04,05,1#,4#,51,54,57,59,9#
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
5533BSPACER, INSTRUMENT PANEL EXTENSION
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55394HBOLT, INSTRUMENT PANEL, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM06,2#,36,52,53
CRIMSON,TRIM30,33
NOBLE BROWN,TRIM04,05,1#,4#,51,54,59,9#
BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#
BLACK/FLARE RED,TRIM36,38
CRIMSON/SHELL,TRIM30,37
BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#
CRIMSON/SHELL,TRIM3#
55401FCLIP(FOR SAFETY PAD)
55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1
BLACK,TRIM0#,1#,2#,36,38,4#,5#
CRIMSON,TRIM30,37
BLACK,TRIM06,2#,36,52,53
55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2
BLACK,TRIM06,2#,36,52,53
CRIMSON,TRIM30,32,33
NOBLE BROWN,TRIM04,05,1#,4#,51,54,57,59,9#
55407EINSERT SUB-ASSY, INSTRUMENT PANEL SAFETY PAD
BLACK,TRIM00,06,2#,36,52,53
CRIMSON/SHELL,TRIM30,32,33
NOBLE BROWN/SHELL,TRIM04,05,1#,4#,51,54,59,9#
BLACK/FLARE RED,TRIM36,38
BLACK/LT.GRAY,TRIM0#,1#,2#,4#,5#
CRIMSON,TRIM30,37
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM00,06,2#,36,52,53
CRIMSON,TRIM30,32,33
NOBLE BROWN,TRIM04,05,1#,4#,51,54,59,9#
55408MCLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
MELLOW WHITE
55409ECLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
MELLOW WHITE
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM00,06,2#,36,52,53
CRIMSON,TRIM30,32,33
NOBLE BROWN,TRIM04,05,1#,4#,51,54,59,9#
55453DPAD, INSTRUMENT PANEL SAFETY, NO.1
BLACK,TRIM06,2#,36,52,53
BLACK/FLARE RED,TRIM36,38
CRIMSON/SHELL,TRIM30,32,33
NOBLE BROWN/SHELL,TRIM04,05,1#,4#,51,54,59,9#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
BLACK,TRIM00,06,2#,36,52,53
CRIMSON,TRIM30,32,33
NOBLE BROWN,TRIM04,05,1#,4#,51,54,57,59,9#
73903ABRACKET SUB-ASSY, AIRBAG INSTRUMENT PANEL, LOWER
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2
BLACK,TRIM0#,1#,2#,36,38,4#,5#
CRIMSON,TRIM30,37
NOBLE BROWN,TRIM04,05,1#,4#,51,54,57,59,9#
9011906951
main90119-06951
9011908D17
main90119-08D17
9017906274
main90179-06274
9017906278
main90179-06278
9018305103
main90183-05103
9046705172
main90467-05172
9167380625
main91673-80625
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
39 parts on this diagram · 5 diagrams in section
