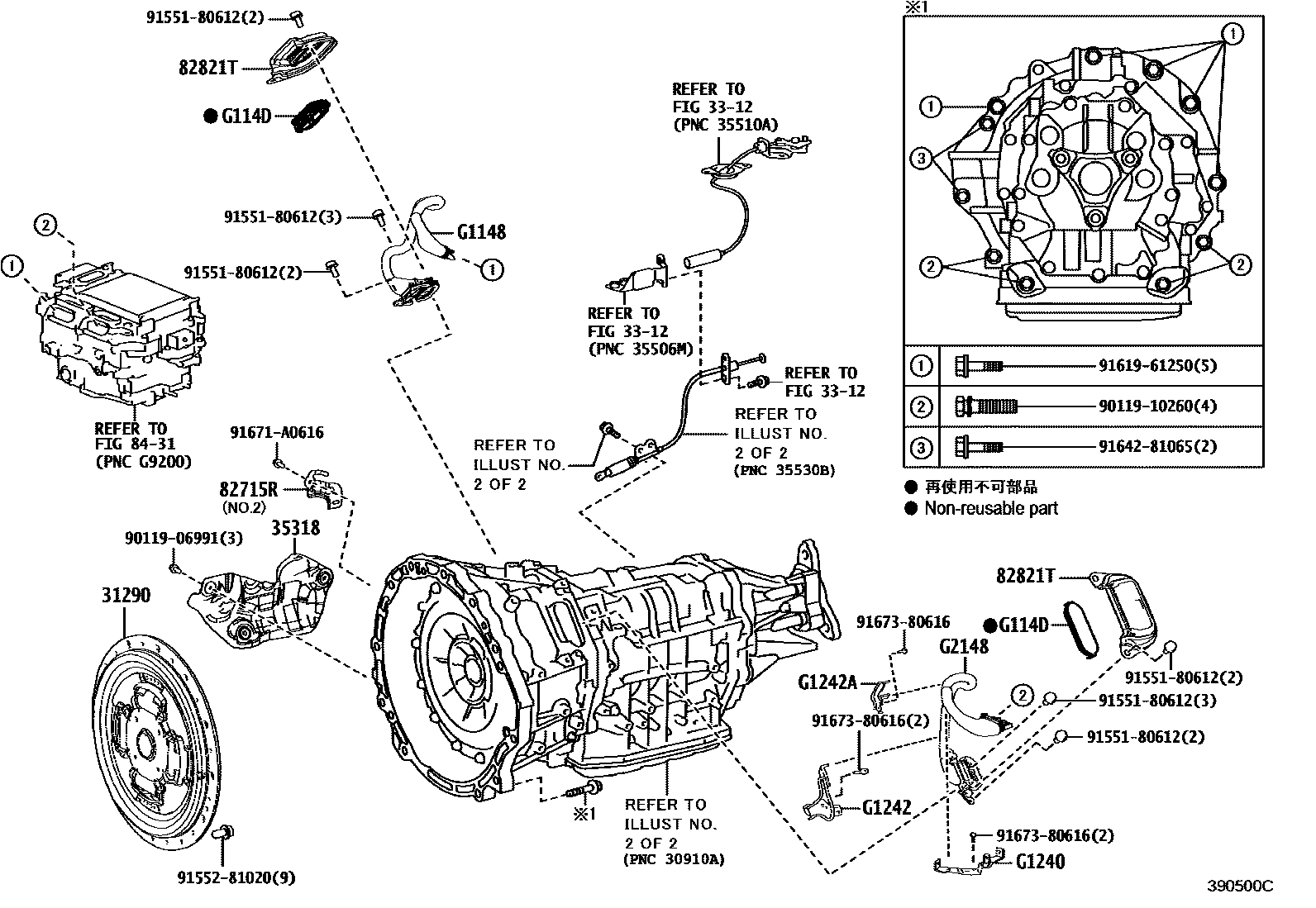

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1 0004 1

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-30010iGVF5#201710-202010

3312

35318INSULATOR, TRANSMISSION OIL PUMP

main35318-11010iGVF5#201710-202010

82715RBRACKET, WIRING HARNESS CLAMP, NO.1

main82715-11010iGVF5#201710-202010

main82715-11020iGVF5#201710-202010

82821TCOVER, CONNECTOR

main82821-11010iGVF5#201710-202010

8431

G1148CABLE, MOTOR

mainG114811010iGVF50201710-202010

mainG114850030iGVF55201710-202010

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010iGVF5#201710-202010

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124011010iGVF5#201710-202010

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211010iGVF5#201710-202010

G1242ABRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211020iGVF5#201710-202010

G2148CABLE, GENERATOR

mainG214811010iGVF50201710-202010

mainG214850030iGVF55201710-202010

9011906991

main90119-06991

9011910260

main90119-10260

9155180612

main91551-80612

9155281020

main91552-81020

9161961250

main91619-61250

9164281065

main91642-81065

91671A0616

main91671-A0616

9167380616

main91673-80616

20 parts on this diagram · 4 diagrams in section
