MANIFOLD

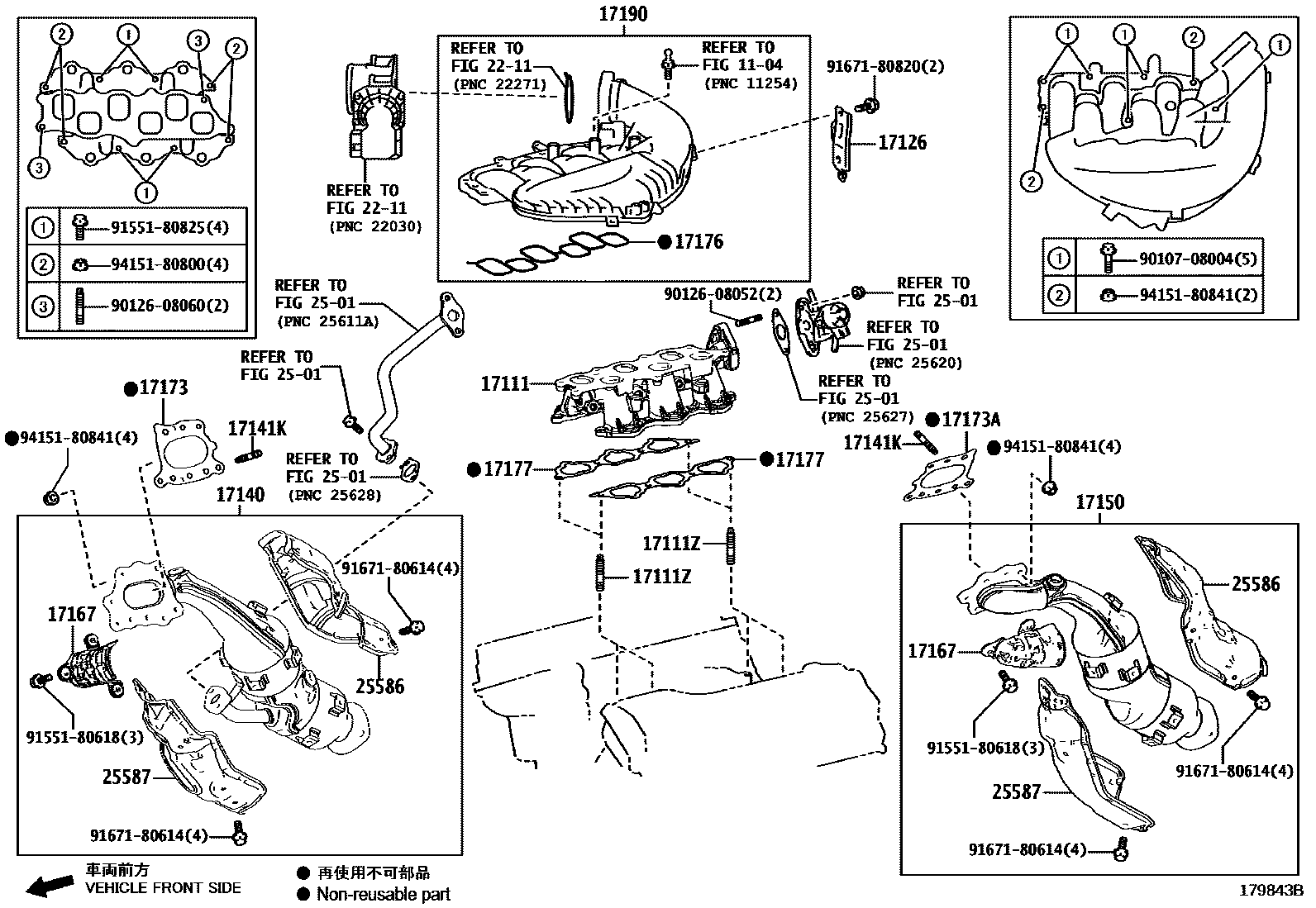

Parts diagram

1104

17111MANIFOLD, INTAKE

main17111-70140i201712-202008

main17111-70150i202010

main17120-31080i201710-202010

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08052×4i201710-202010

17126STAY, SURGE TANK, NO.2

main17126-31070i201710-202010

main17126-70050i201712-202008

17140MANIFOLD ASSY, EXHAUST, RH

main17140-31A80i201710-202010

main17140-31A81i202401

main17140-31C20i202010-202312

main17140-31C21i202401

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08052×8i201710-202010

17150MANIFOLD ASSY, EXHAUST, LH

main17150-31A80i201710-202010

main17150-31A81i202401

main17150-31C20i202010-202312

main17150-31C21i202401

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-31120i201710-202010

main17167-31160i202010

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31070i201710-202010

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31070i202010

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31150i201710-202010

main17176-70020i201712-202008

main17176-70030i202010

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31070×2i201710-202010

main17177-70061×2i201712-201803

main17177-70062×2i201804-202008

main17177-70070×2i202010

17190TANK ASSY, INTAKE AIR SURGE

main17190-31301i201710-202010

2211

2501

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-31060i201710-202010

main25586-31080i201710-202010

main25586-31110i201710-202010

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-31020i201710-202010

main25587-31030i202010

main25587-31050i201710-202010

9010708004

main90107-08004

9012608052

main90126-08052

9012608060

main90126-08060

9155180618

main91551-80618

9155180825

main91551-80825

9167180614

main91671-80614

9167180820

main91671-80820

9415180800

main94151-80800

9415180841

main94151-80841

26 parts on this diagram · 7 diagrams in section
