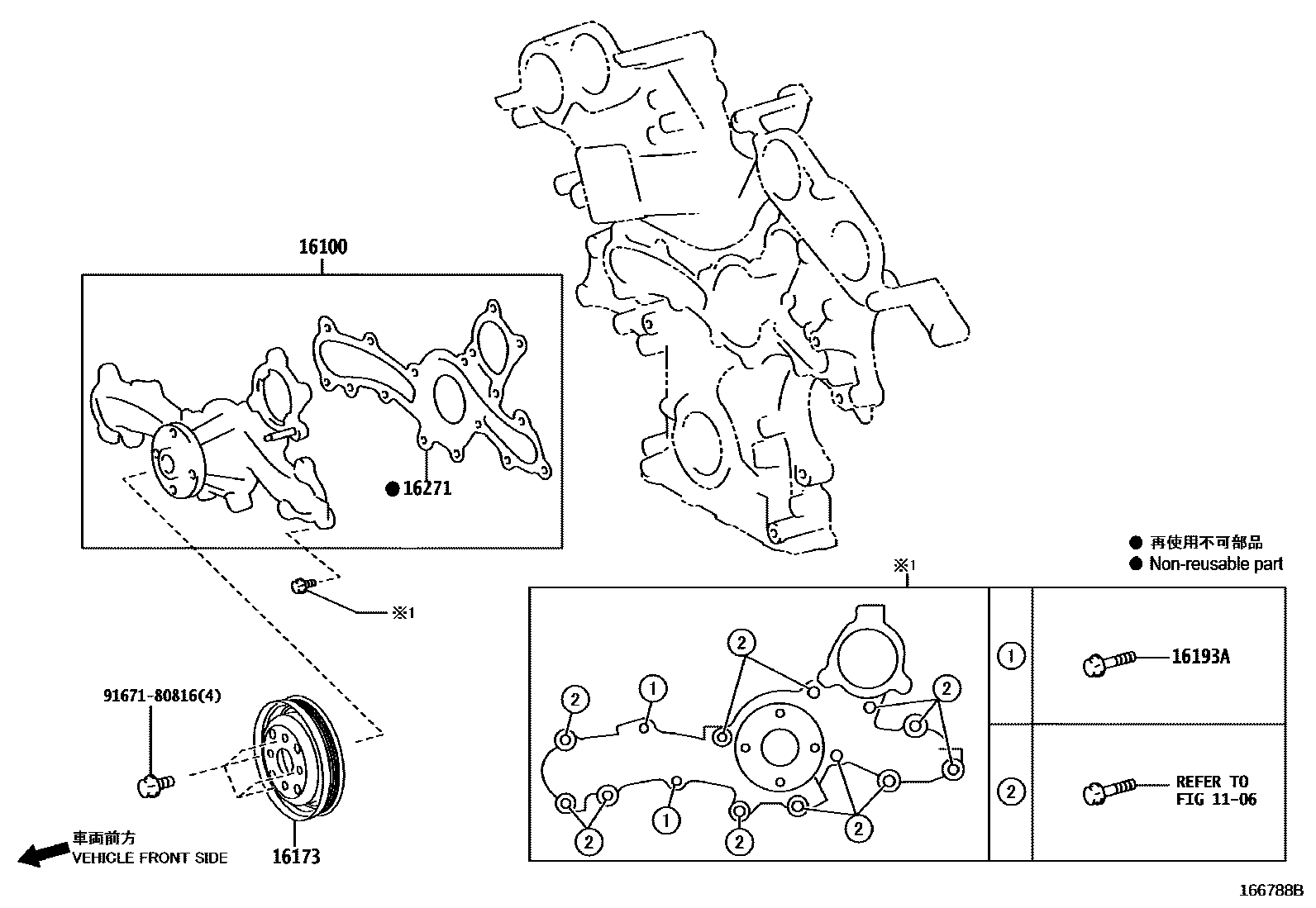

WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-39615i8GRFXS..GVF5#201710-202004

sub16100-39616

main16100-39616i8GRFXS..GVF5#202004-202010

main16100-79505iV35AFTS..VXFA5#201712-202008

16173PULLEY, WATER PUMP

main16173-31040i8GRFXS..GVF5#201710-202003

sub16173-31041

main16173-31041i8GRFXS..GVF5#202004-202012

sub16173-31042

main16173-31042i8GRFXS..GVF5#202101

main16173-70020iV35AFTS..VXFA5#201712-202002

sub16173-70021

main16173-70021iV35AFTS..VXFA5#202003-202008

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i8GRFXS..GVF5#201710-202010

16271GASKET, WATER PUMP

main16271-31050i8GRFXS..GVF5#201710-202010

main16271-70010iV35AFTS..VXFA5#201712-202008

main16271-70020iV35AFTS..VXFA5#201712-202008

9167180816

main91671-80816

6 parts on this diagram · 2 diagrams in section
