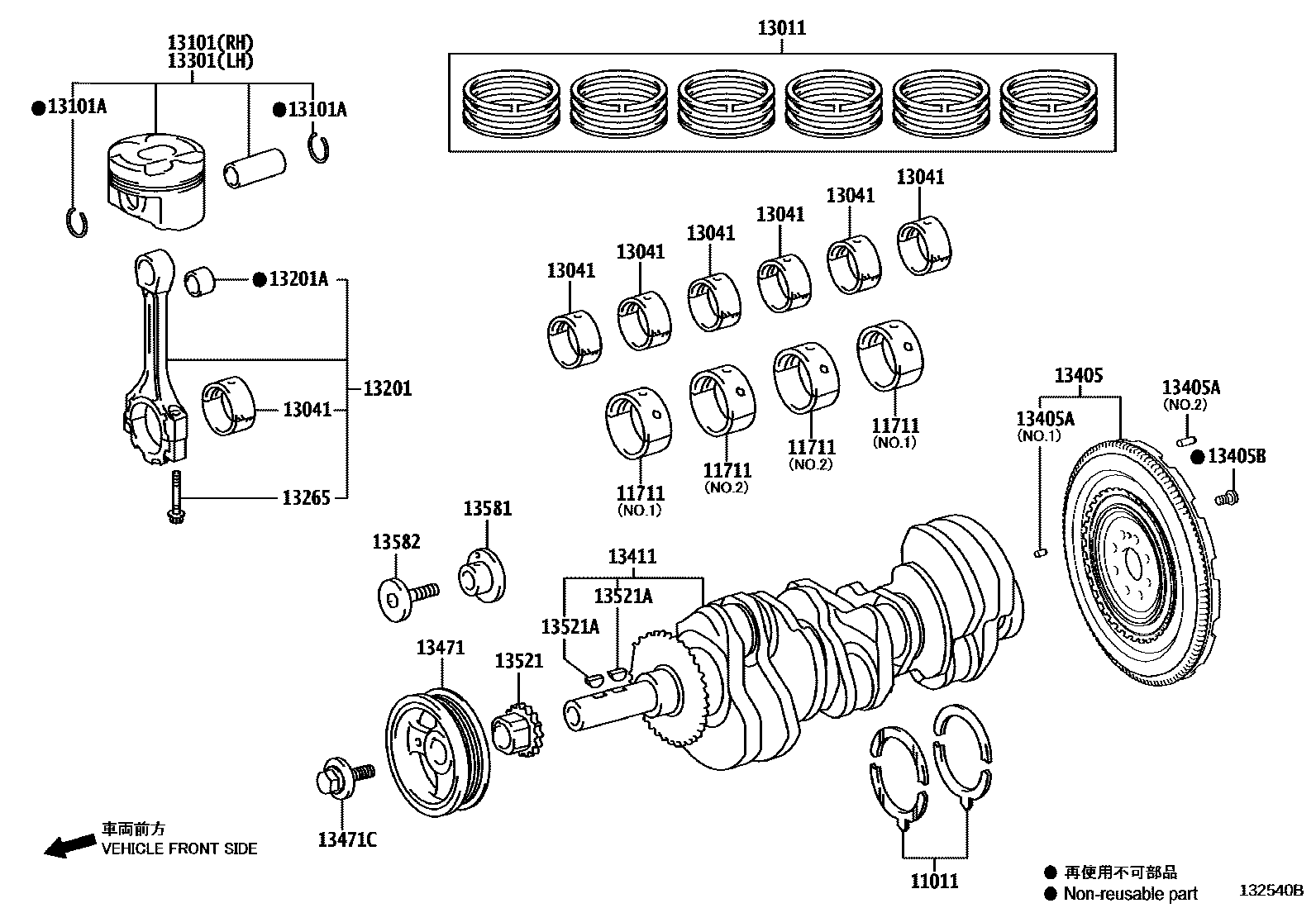

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11711BEARING, CRANKSHAFT
13011RING SET, PISTON
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 4
13101PISTON SUB-ASSY, W/PIN
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A
MARK B
MARK C
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2
20 parts on this diagram · 2 diagrams in section
