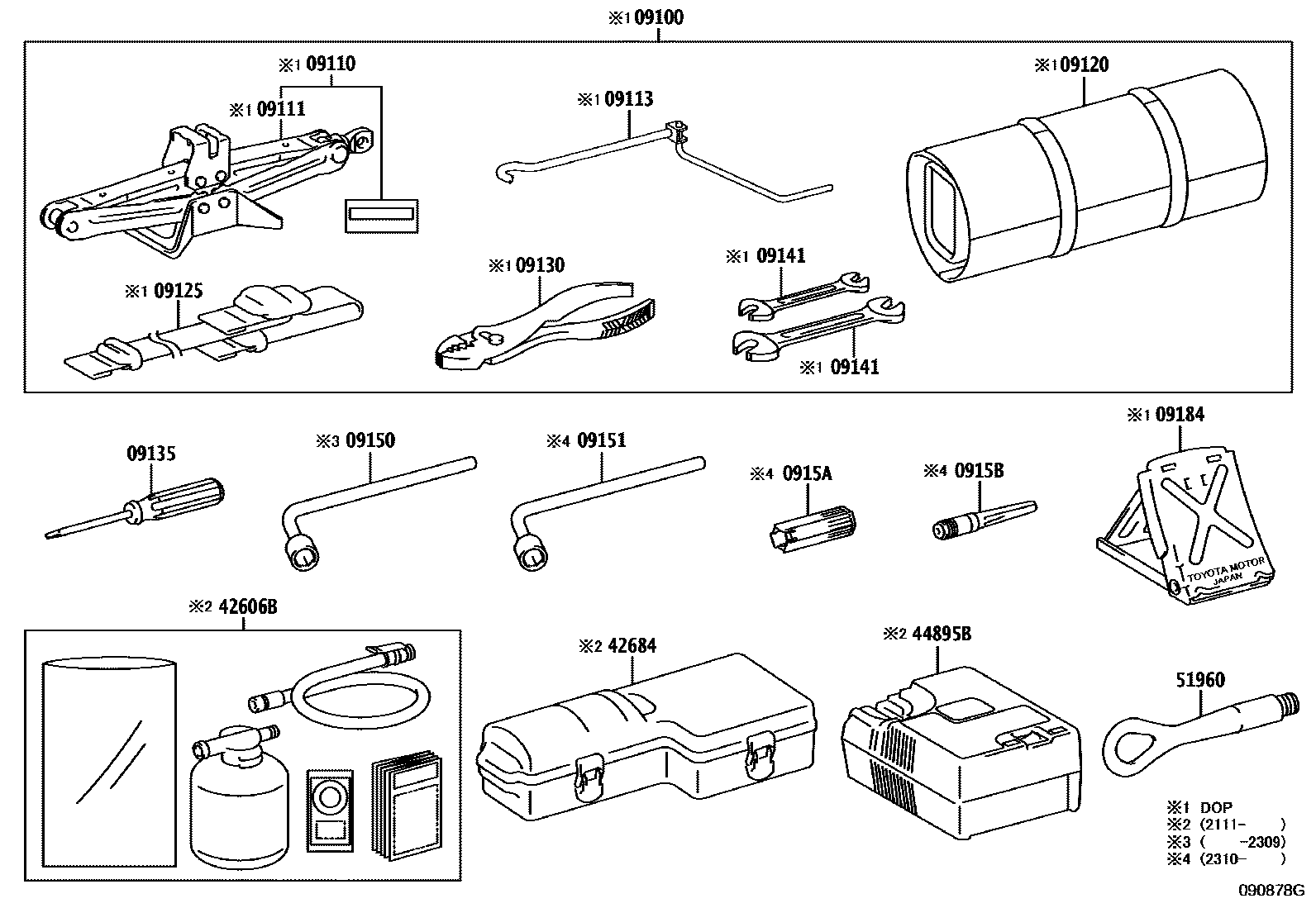

STANDARD TOOL

0001 1 0002 1

09100TOOL SET, STANDARD

main09100-50230

main09100-50240

main09100-50250

main09100-50260

09110JACK ASSY

main09110-50040

09111JACK SUB-ASSY

main09111-50140

main09111-50141

09113HANDLE, JACK

main09113-28030

09120BAG, TOOL

main09120-50050

09125BAND, TOOL BAG

main09125-50010

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main99915-10700iGVF5#,VXFA5#201710-202310

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-50040

09151WRENCH, HUB BOLT BOX

main09151-53010

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010

0915BPIN, WHEEL GUIDE

main0915B-53010

09184STOPPER, WHEEL

main09184-50010

42606BREPAIR KIT, TUBELESS TIRE

42684CASE, TIRE REPAIR KIT

main42684-50010

44895BCOMPRESSOR, TIRE REPAIR KIT

51960HOOK ASSY, FRONT

main51961-11030iGVF5#,VXFA5#201710-202010

18 parts on this diagram · 2 diagrams in section
