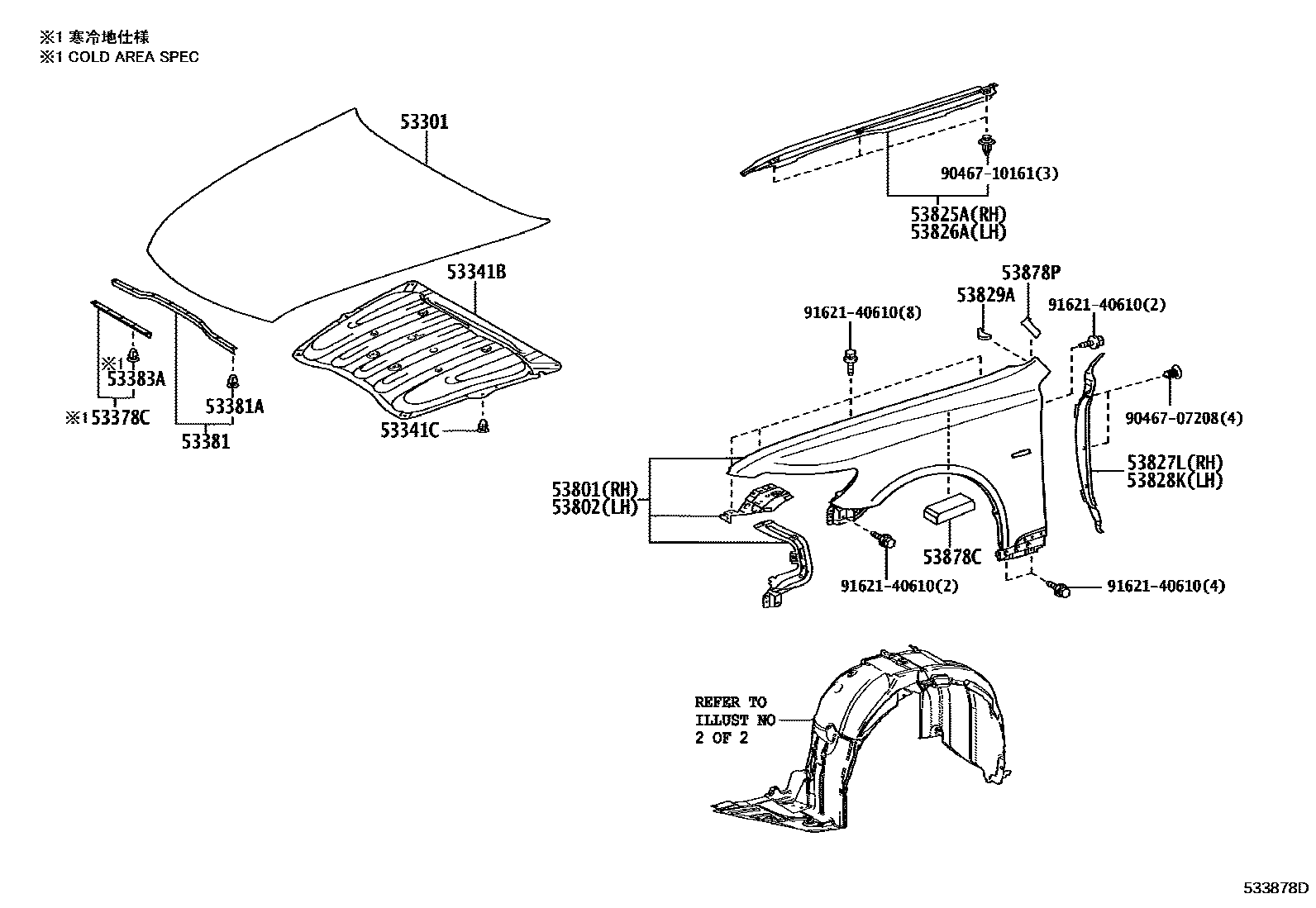

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-50100iUSF4#201209-201708

53341BINSULATOR, HOOD

main53341-50070iUSF4#201209

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iUSF4#201209

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-50062iUSF4#201209

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-50080iUSF4#201209

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iUSF4#201209

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08011iUSF4#201209

53801FENDER SUB-ASSY, FRONT RH

main53801-50200iUSF4#201209

main53801-50210iUSF40201412-201509

53802FENDER SUB-ASSY, FRONT LH

main53802-50200iUSF4#201209

main53802-50210iUSF40201412-201509

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-50020iUSF4#201209

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-50020iUSF4#201209

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-50060iUSF4#201209

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-50060iUSF4#201209

53829APROTECTOR, FRONT FENDER, LOWER

main53829-50010iUSF4#201209

53878CSPACER, FRONT FENDER

main55783-30110iUSF4#201209

53878PSPACER, FRONT FENDER

main53878-50030iUSF4#201209

9046707208

main90467-07208

9046710161

main90467-10161

9162140610

main91621-40610

19 parts on this diagram · 2 diagrams in section
