STANDARD TOOL

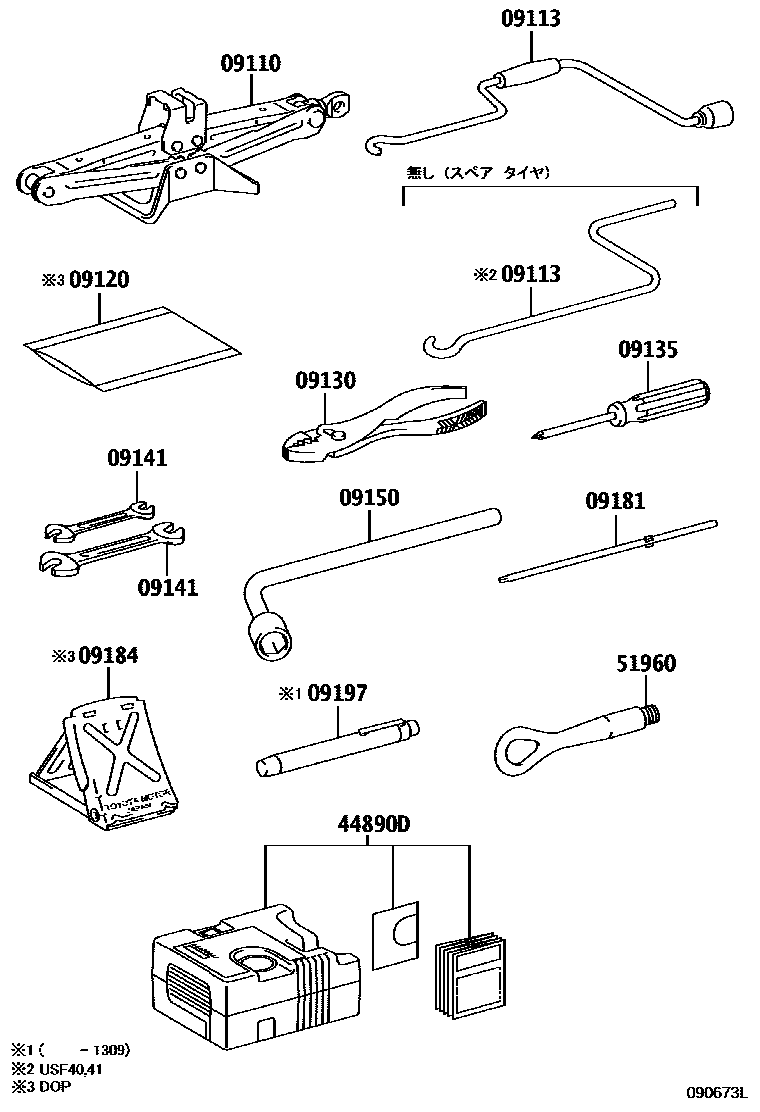

Parts diagram

09110JACK ASSY

main09111-50110i201209-201602

main09111-50130i201603-201708

09113HANDLE, JACK

main09113-33010i201509-201708

main09113-50030i201209-201708

09120BAG, TOOL

main09120-28040i201209-201708

main09120-28040i201209-201708

09130PLIERS

main09130-50040i201209-201708

09135DRIVER, SCREW

main09135-50060i201209-201708

09141SPANNER

main09141-50070i201209-201708

main09141-60010i201209-201708

main09141-60020i201209-201708

09150WRENCH, HUB NUT BOX

main09150-50040i201209-201708

09181ROD, PARKING BRAKE RELEASE

main09181-50010i201209-201304

main09181-50020i201304-201708

09184STOPPER, WHEEL

main09184-00010i201209-201708

main09184-00010i201209-201708

09197LIGHT, PEN

main09197-50040i201209-201309

44890DCOMPRESSOR ASSY, AIR

main44890-50020i201209-201708

main44890-50020i201209-201708

51960HOOK ASSY, FRONT

main51961-50051i201209-201708

12 parts on this diagram · 2 diagrams in section
