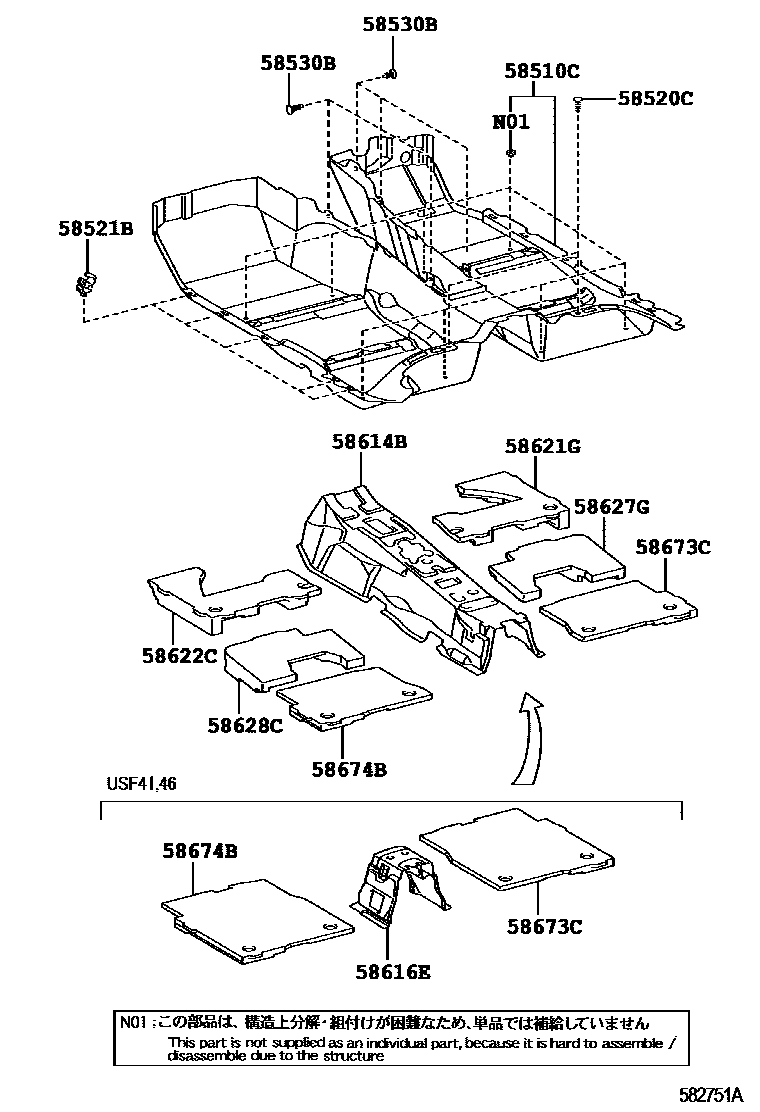

MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,07
IVORY,TRIM00,06
LT.GRAY,TRIM1#
BLACK,TRIM2#,3#,4#,6#
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,07
IVORY,TRIM00,06
LT.GRAY,TRIM1#
BLACK,TRIM2#
58520CCLIP(FOR FRONT FLOOR CARPET)
LT.GRAY
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK
58614BSHEET, CENTER FLOOR SILENCER
58616ESHEET, CENTER FLOOR SILENCER, CENTER
58621GPAD, FRONT FLOOR SILENCER, RH
58627GPAD, CENTER FLOOR SILENCER, REAR RH
58628CPAD, CENTER FLOOR SILENCER, REAR LH
58673CPAD, REAR FLOOR SILENCER, NO.1
58674BPAD, REAR FLOOR SILENCER, NO.2
12 parts on this diagram · 1 diagram in section
