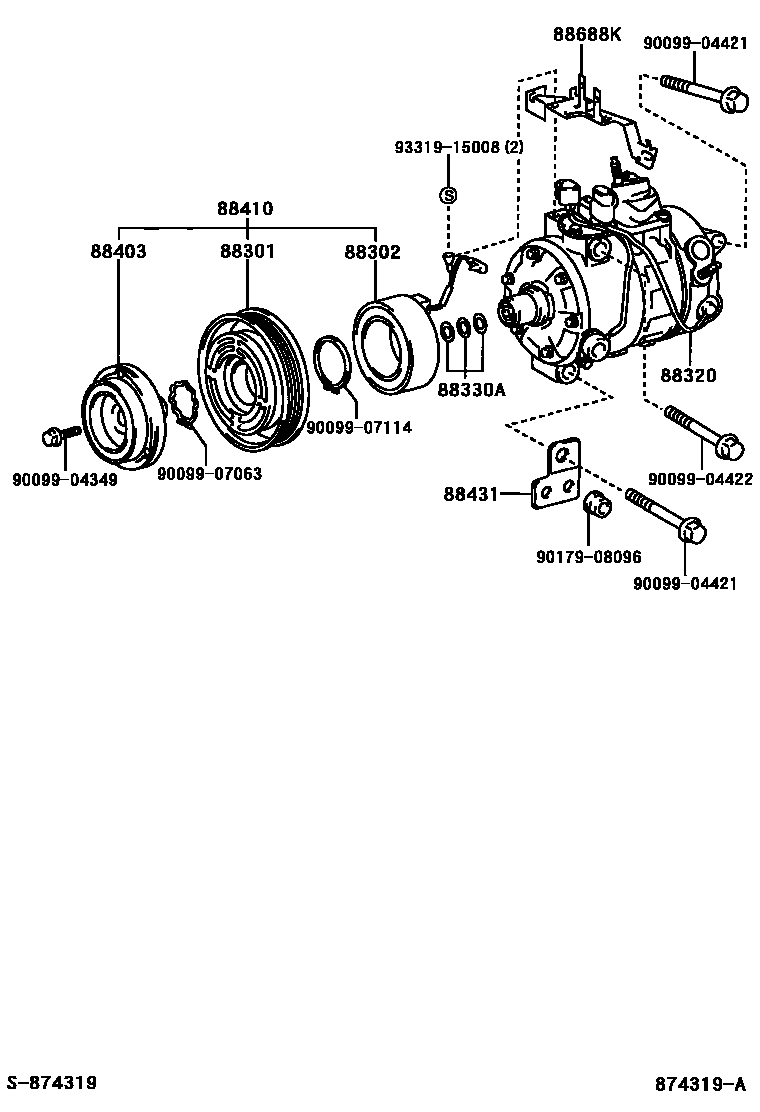

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-50040iUCF3#200008-200307

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-26060iUCF3#200008-200307

88320COMPRESSOR ASSY, COOLER

main88320-50100iUCF3#200008-200109

main88320-50101iUCF3#200109-200412

sub88320-50102

main88320-50102iUCF3#200412

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iUCF3#200008-200307

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-3A100iUCF3#200008-200307

88410CLUTCH ASSY, MAGNET

main88410-50110iUCF3#200008-200307

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88433-50010iUCF3#200008-200307

88688KBRACKET, COOLER COMPRESSOR

main88688-3A610iUCF3#200008-200307

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907063

main90099-07063

9009907114

main90099-07114

9017908096

main90179-08096

9331915008

main93319-15008

15 parts on this diagram · 2 diagrams in section
