TELEPHONE & MAYDAY

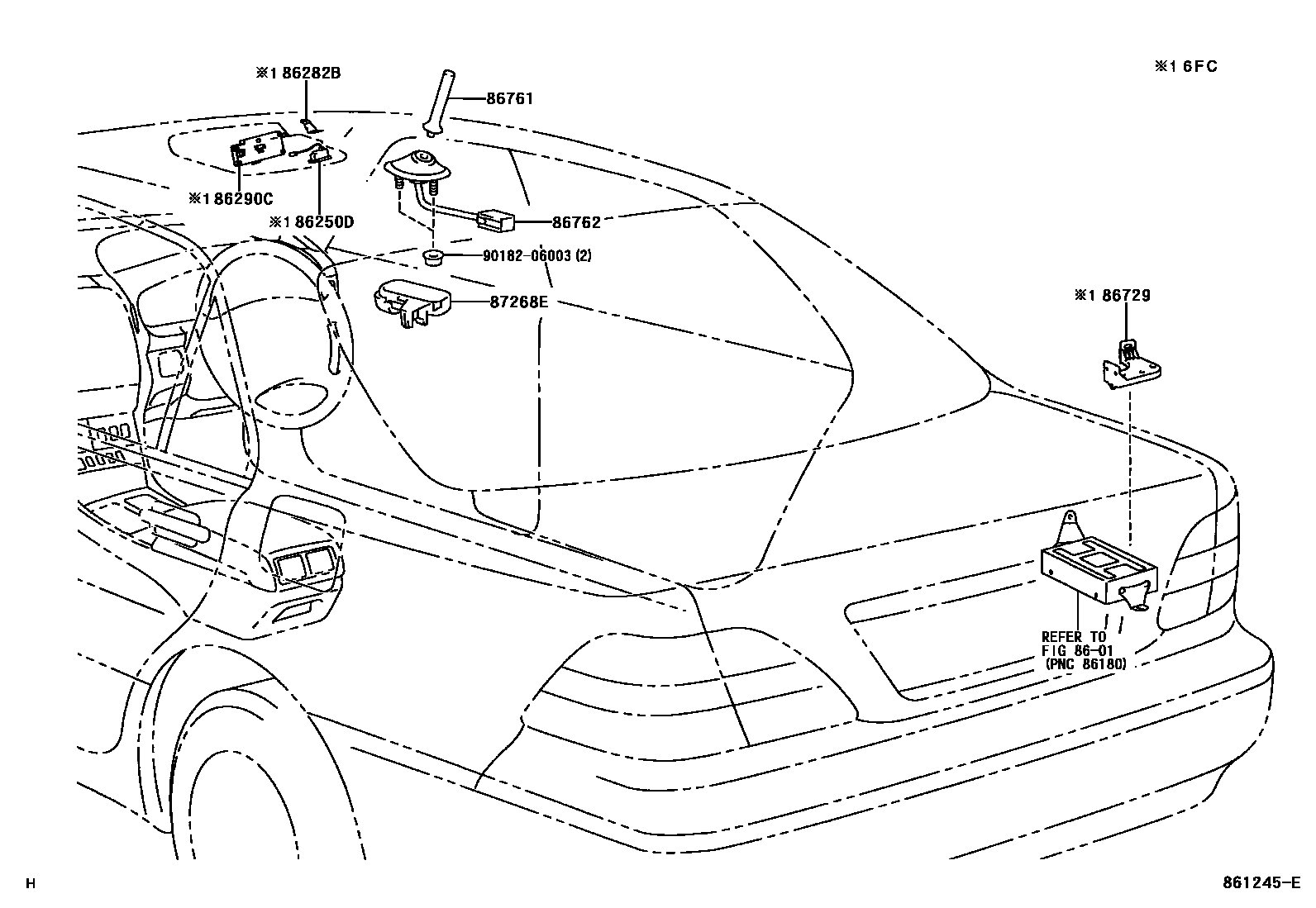

Parts diagram

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86250DMICROPHONE ASSY, AMPLIFIER

main86250-50060i200307-200608

86282BBRACKET, MICROPHONE

main86282-50040i200307-200608

86290CAMPLIFIER ASSY, MICROPHONE

main86290-50020i200307-200608

86729BRACKET, MOBILEPHONE

main86729-50260i200307

86761ROD, TELEPHONE ANTENNA

main86761-50040i200008-200211

main86761-50041i200211-200307

86762BASE, TELEPHONE ANTENNA

main86762-50040i200008-200211

main86762-50041i200211-200307

main86762-50042i200307

87268EPROTECTOR, TELEPHONE ANTENNA

main87268-50010i200008-200211

main87268-50011i200211-200307

9018206003

main90182-06003

9 parts on this diagram · 1 diagram in section
