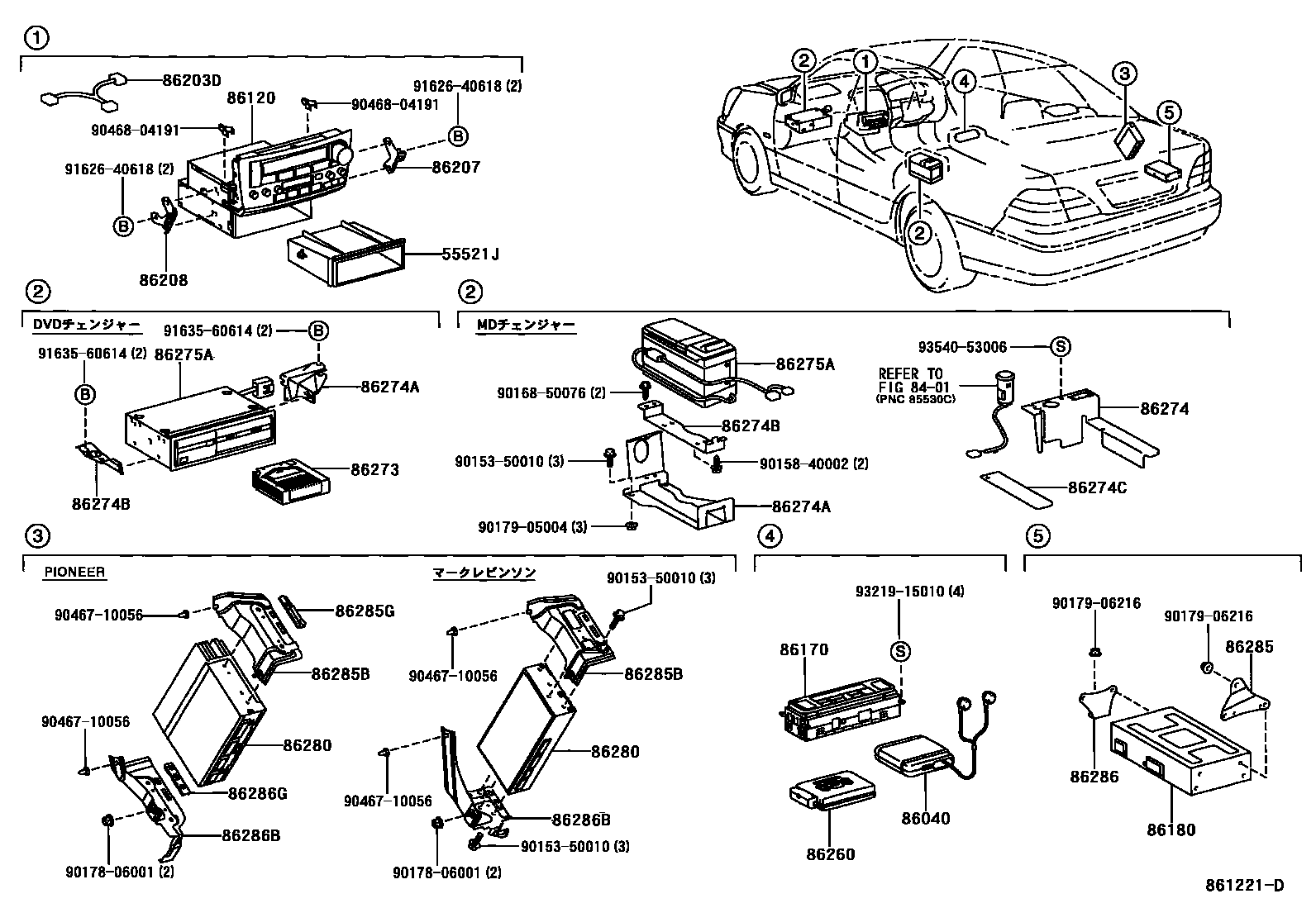

RADIO RECEIVER & AMPLIFIER & CONDENSER
55521JCOVER, STEREO OPENING
8401
86040HEADPHONE ASSY, STEREO
86170SWITCH AND VOLUME ASSY, RADIO
86207BRACKET SUB-ASSY, RADIO RECEIVER, RH
86208BRACKET SUB-ASSY, RADIO RECEIVER, LH
86260TAPE PLAYER ASSY
86273MAGAZINE, DISC PLAYER
86274BRACKET, DISC PLAYER
86274ABRACKET, DISC PLAYER
86274BBRACKET, DISC PLAYER
86274CBRACKET, DISC PLAYER
86285BRACKET, AMPLIFIER, NO.1
86285BBRACKET, AMPLIFIER, NO.1
86285GGUIDE, AMPLIFIER BRACKET, NO.1
86286BRACKET, AMPLIFIER, NO.2
86286BBRACKET, AMPLIFIER, NO.2
86286GGUIDE, AMPLIFIER BRACKET, NO.2
9015350010
main90153-50010
9015840002
main90158-40002
9016850076
main90168-50076
9017806001
main90178-06001
9017905004
main90179-05004
9017906216
main90179-06216
9046710056
main90467-10056
9046804191
main90468-04191
9162640618
main91626-40618
9163560614
main91635-60614
9321915010
main93219-15010
9354053006
main93540-53006
35 parts on this diagram · 5 diagrams in section
