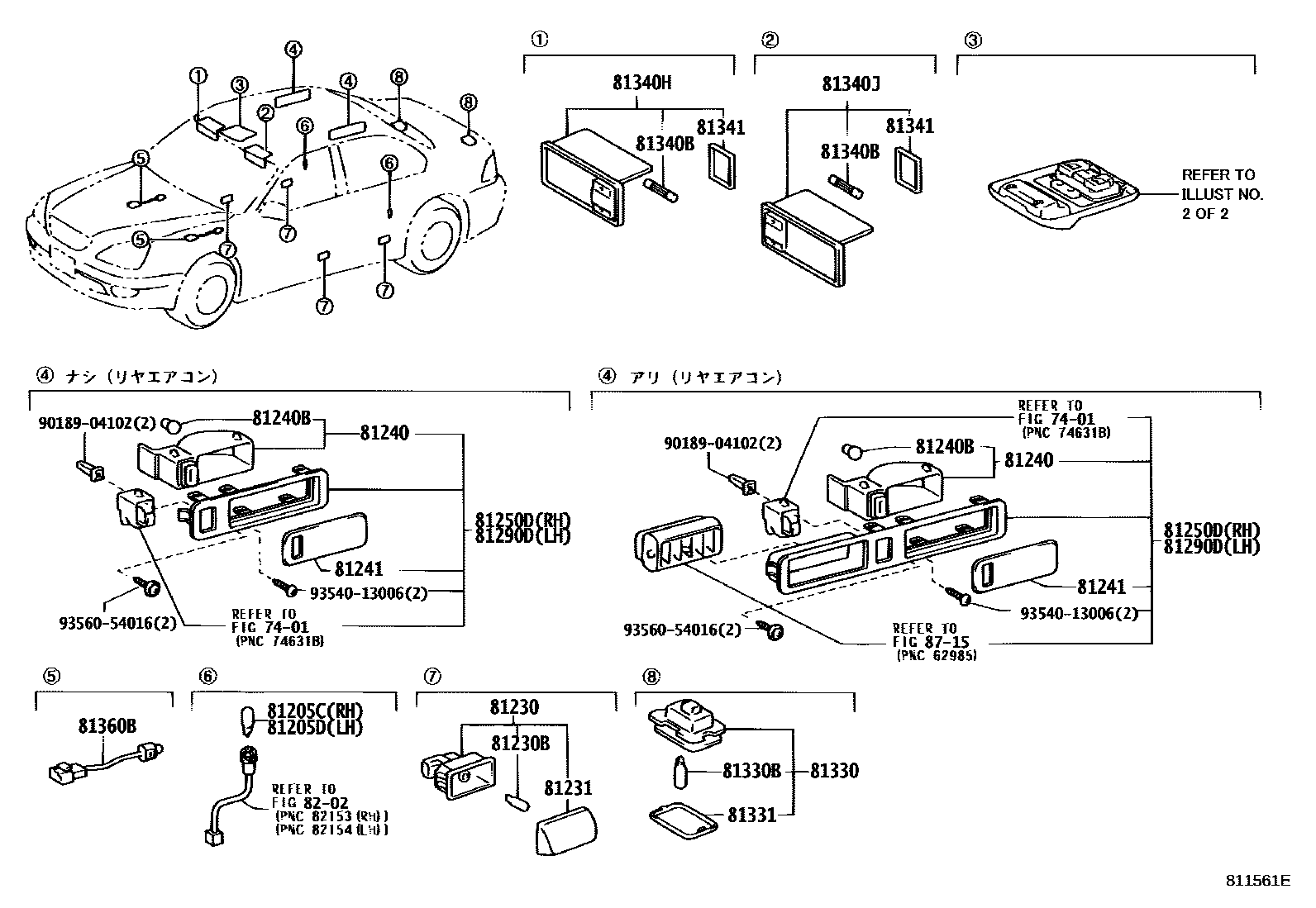

INTERIOR LAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

7401

81205CBULB, ASH RECEPTACLE LAMP, REAR RH

main90981-11041iUCF3#200008-200307

81205DBULB, ASH RECEPTACLE LAMP, REAR LH

main90981-11041iUCF3#200008-200307

81230LAMP ASSY, COURTESY

main81230-50050×4iUCF3#200008-200307

81230BBULB(FOR COURTESY LAMP)

main90981-11020×4iUCF3#200008-200307

81231LENS, COURTESY LAMP

main81231-50050×4iUCF3#200008-200307

81240LAMP ASSY, ROOM, NO.1

main81240-50080-A0iUCF3#200008-200307

main81240-50080-A1iUCF3#200008-200307

main81240-50080-B0iUCF3#200008-200307

main81240-50090-A0iUCF3#200008-200307

main81240-50090-A1iUCF3#200008-200307

main81240-50090-B0iUCF3#200008-200307

main81240-50100-A0iUCF3#200307-200608

main81240-50100-A1iUCF3#200307-200608

main81240-50100-B0iUCF31200307-200608

main81240-50110-A0iUCF3#200307-200608

main81240-50110-A1iUCF3#200307-200608

main81240-50110-B0iUCF31200307-200608

81240BBULB, ROOM LAMP, NO.1

main90981-12020×2iUCF3#200008-200307

81241LENS, ROOM LAMP, NO.1

main81241-50110iUCF3#200008-200307

main81241-50120iUCF3#200008-200307

81250DLAMP ASSY, REAR ROOM, RH

main81250-50110-A0iUCF3#200008-200307

IVORY,TRIM04

main81250-50110-A1iUCF3#200008-200307

ECRU,TRIM03

main81250-50110-B0iUCF3#200008-200307

MD.CHARCOAL,TRIM1#,2#

main81250-50120-A0iUCF31200008-200307

main81250-50120-A1iUCF31200008-200307

main81250-50120-B0iUCF31200008-200307

main81250-50130-A0iUCF31200307-200608

main81250-50130-A1iUCF31200307-200608

main81250-50130-B0iUCF31200307-200608

main81250-50140-A0iUCF3#200307-200608

ECRU,TRIM00

main81250-50140-A1iUCF3#200307-200608

NEW IVORY,TRIM07

main81250-50140-B0iUCF31200307-200608

NEW GRAY,TRIM1#,2#

81290DLAMP ASSY, REAR ROOM, LH

main81290-50110-A0iUCF3#200008-200307

IVORY,TRIM04

main81290-50110-A1iUCF3#200008-200307

ECRU,TRIM03

main81290-50110-B0iUCF3#200008-200307

MD.CHARCOAL,TRIM1#,2#

main81290-50120-A0iUCF31200008-200307

main81290-50120-A1iUCF31200008-200307

main81290-50120-B0iUCF31200008-200307

main81290-50130-A0iUCF31200307-200608

main81290-50130-A1iUCF31200307-200608

main81290-50130-B0iUCF31200307-200608

main81290-50140-A0iUCF3#200307-200608

ECRU,TRIM00

main81290-50140-A1iUCF3#200307-200608

NEW IVORY,TRIM07

main81290-50140-B0iUCF31200307-200608

NEW GRAY,TRIM1#,2#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-50021×2iUCF3#200008-200307

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020×2iUCF3#200008-200307

81331LENS, LUGGAGE COMPARTMENT LAMP

main81331-50010×2iUCF3#200008-200307

81340BBULB (FOR VANITY LAMP)

main90981-14007×6iUCF3#200307

81340HLAMP ASSY, VANITY, RH

main81340-50150-B1iUCF31200307-200608

main81340-50160-A1iUCF3#200307-200608

main81340-50160-A2iUCF3#200307-200608

main81340-50160-B1iUCF31200307-200608

main81350-50120-A0iUCF3#200008-200307

IVORY,TRIM04

main81350-50120-A1iUCF3#200008-200307

ECRU,TRIM03

main81350-50120-A2iUCF3#200307-200608

main81350-50120-B0iUCF3#200008-200307

TYPE A-*104,CHARCOAL,TRIM1#,2#

main81350-50120-B2iUCF31200307-200608

main81350-50130-B0iUCF31200008-200307

TYPE B-*104,CHARCOAL,TRIM2#

main81350-50130-B1iUCF31200307-200608

81340JLAMP ASSY, VANITY, LH

main81340-50130-A0iUCF3#200008-200307

IVORY,TRIM04

main81340-50130-A1iUCF3#200307-200608

main81340-50130-A2iUCF3#200307-200608

main81340-50130-B0iUCF3#200008-200307

TYPE A-*104,CHARCOAL,TRIM1#,2#

main81340-50130-B2iUCF31200307-200608

main81340-50140-B0iUCF31200008-200307

TYPE B-*104,CHARCOAL,TRIM2#

main81340-50140-B1iUCF31200307-200608

main81340-50150-B1iUCF31200307-200608

main81340-50160-A1iUCF3#200307-200608

main81340-50160-A2iUCF3#200307-200608

main81340-50160-B1iUCF31200307-200608

81341LENS, VANITY LAMP

main81341-30090×2iUCF3#200008-200307

main81341-50150×2iUCF3#200307

81360BBULB, STEP OR SPOT LAMP

main81090-50010×2iUCF3#200008-200307

8202

8715

9018904102

main90189-04102

9354013006

main93540-13006

9356054016

main93560-54016

24 parts on this diagram · 6 diagrams in section
