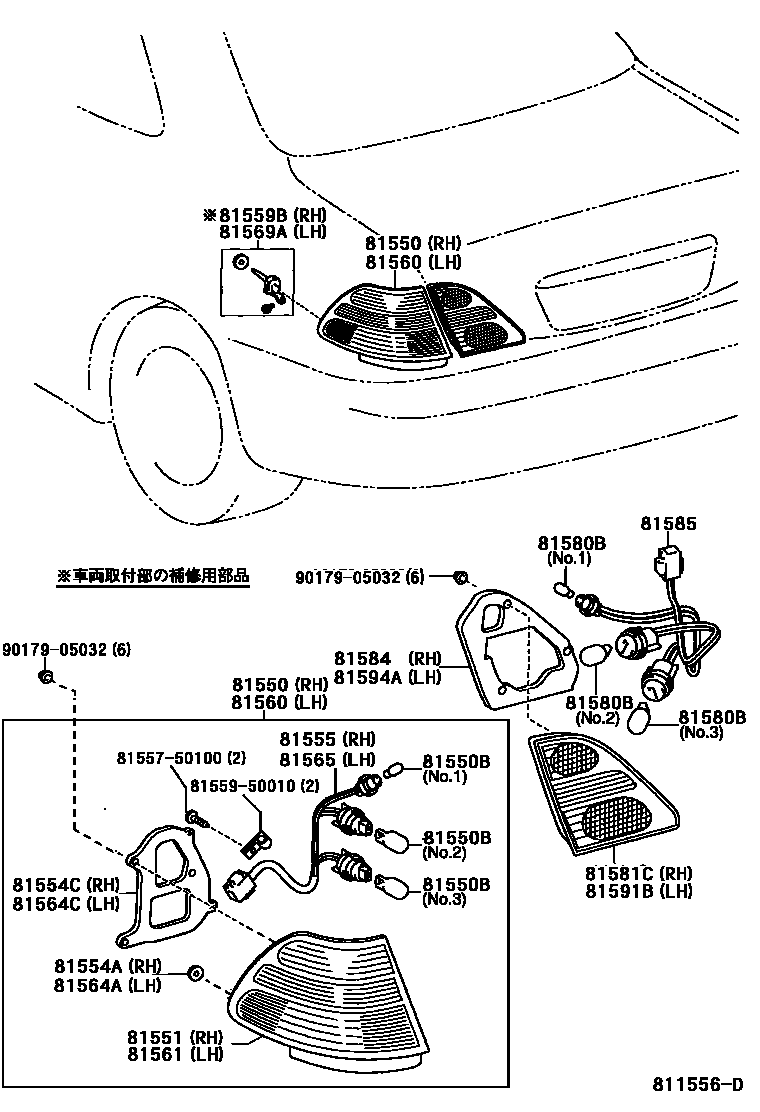

REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81551LENS, REAR COMBINATION LAMP, RH
81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81554CPACKING, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81559BBRACKET, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81564CPACKING, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81569ABRACKET, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
81585SOCKET & WIRE, REAR LAMP
81591BLENS AND BODY, REAR LAMP, LH
8155750100REFLECTOR, REAR COMBINATION LAMP REFLEX
main81557-50100
8155950010MOULDING, REAR COMBINATION LAMP, RH
main81559-50010
9017905032
main90179-05032
22 parts on this diagram · 3 diagrams in section
