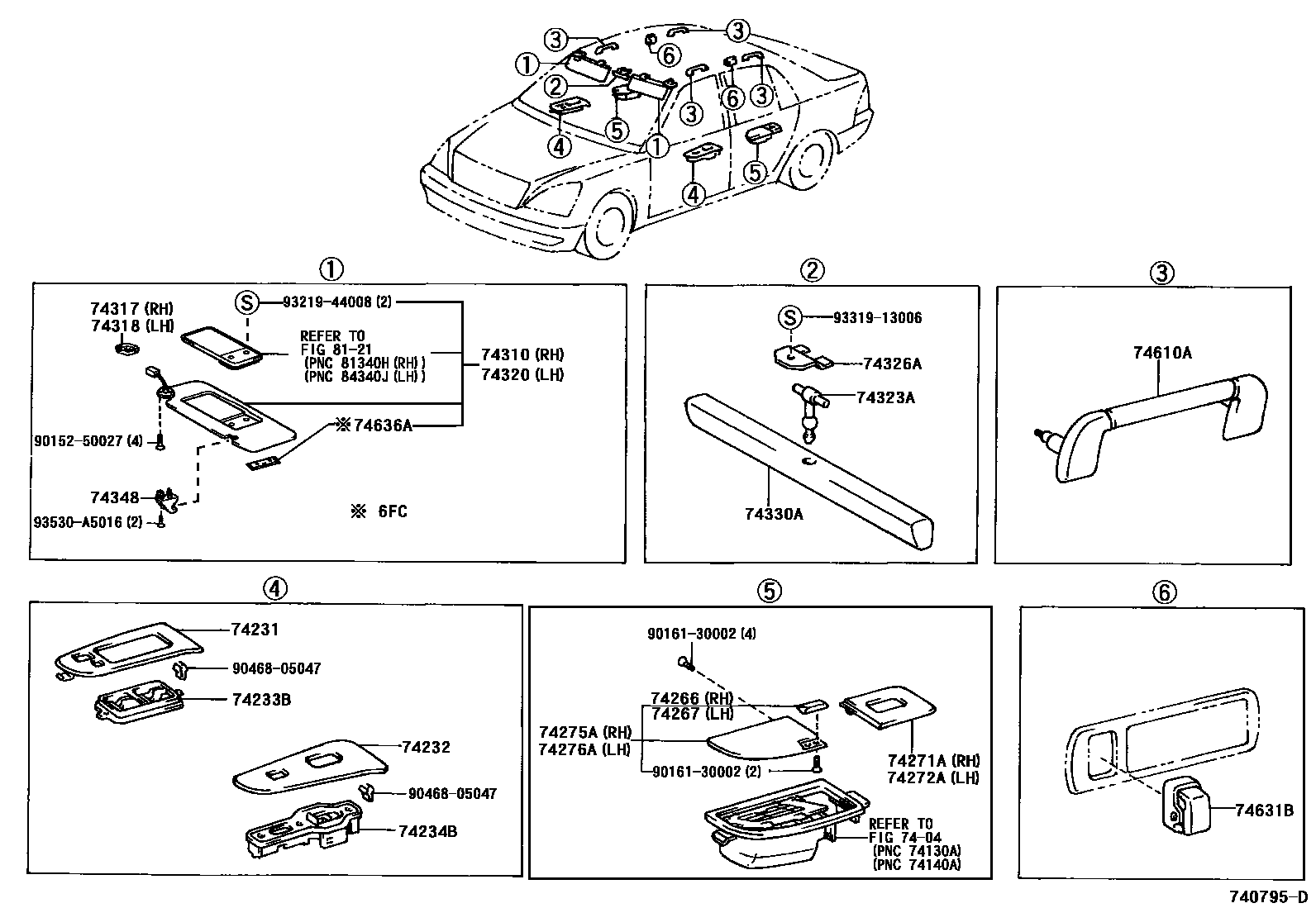

ARMREST & VISOR
7404
74231PANEL, FRONT ARMREST BASE, UPPER RH
MD.BROWN,TRIM04,1#
MD.BROWN,TRIM1#,21,24
MD.BROWN,TRIM1#,2#
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
74232PANEL, FRONT ARMREST BASE, UPPER LH
MD.BROWN,TRIM1#,21,24
MD.BROWN,TRIM04,1#
MD.BROWN,TRIM1#,2#
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH
74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH
74266CAP, DOOR ARMREST, RH
74267CAP, DOOR ARMREST, LH
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
MD.BROWN,TRIM1#,2#
MD.BROWN,TRIM1#,21,24
MD.BROWN,TRIM04,1#
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
MD.BROWN,TRIM1#,2#
MD.BROWN,TRIM04,1#
MD.BROWN,TRIM1#,21,24
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
74275APLATE, REAR DOOR ARMREST BASE FINISH,RH
MD.BROWN,TRIM1#,21,24
MD.BROWN,TRIM1#,2#
MD.BROWN,TRIM04,1#
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
MD.BROWN,TRIM1#,2#
MD.BROWN,TRIM1#,21,24
LIGHTBROWN,TRIM00,07
74276APLATE, REAR DOOR ARMREST BASE FINISH,LH
MD.BROWN,TRIM04,1#
MD.BROWN,TRIM1#,2#
MD.BROWN,TRIM1#,21,24
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
MD.BROWN,TRIM1#,2#
MD.BROWN,TRIM1#,21,24
LIGHTBROWN,TRIM00,07
74310VISOR ASSY, RH
IVORY,TRIM04
ECRU,TRIM03
74317COVER, VISOR BRACKET, RH
74318COVER, VISOR BRACKET, LH
74320VISOR ASSY, LH
IVORY,TRIM04
ECRU,TRIM03
74323ASTAY, FRONT VISOR, RH
74326ASUPPORT, FRONT VISOR, NO.2
74330AVISOR ASSY, CENTER
74348HOLDER, VISOR
74610AGRIP SUB-ASSY, ASSIST
74631BHOOK, COAT
74636ABEZEL, CARD HOLDER
ECRU,TRIM00
IVORY,TRIM07
GRAY,TRIM1#,2#
8121
9015250027
9016130002
9046805047
9321944008
9331913006
93530A5016
29 parts on this diagram · 3 diagrams in section
