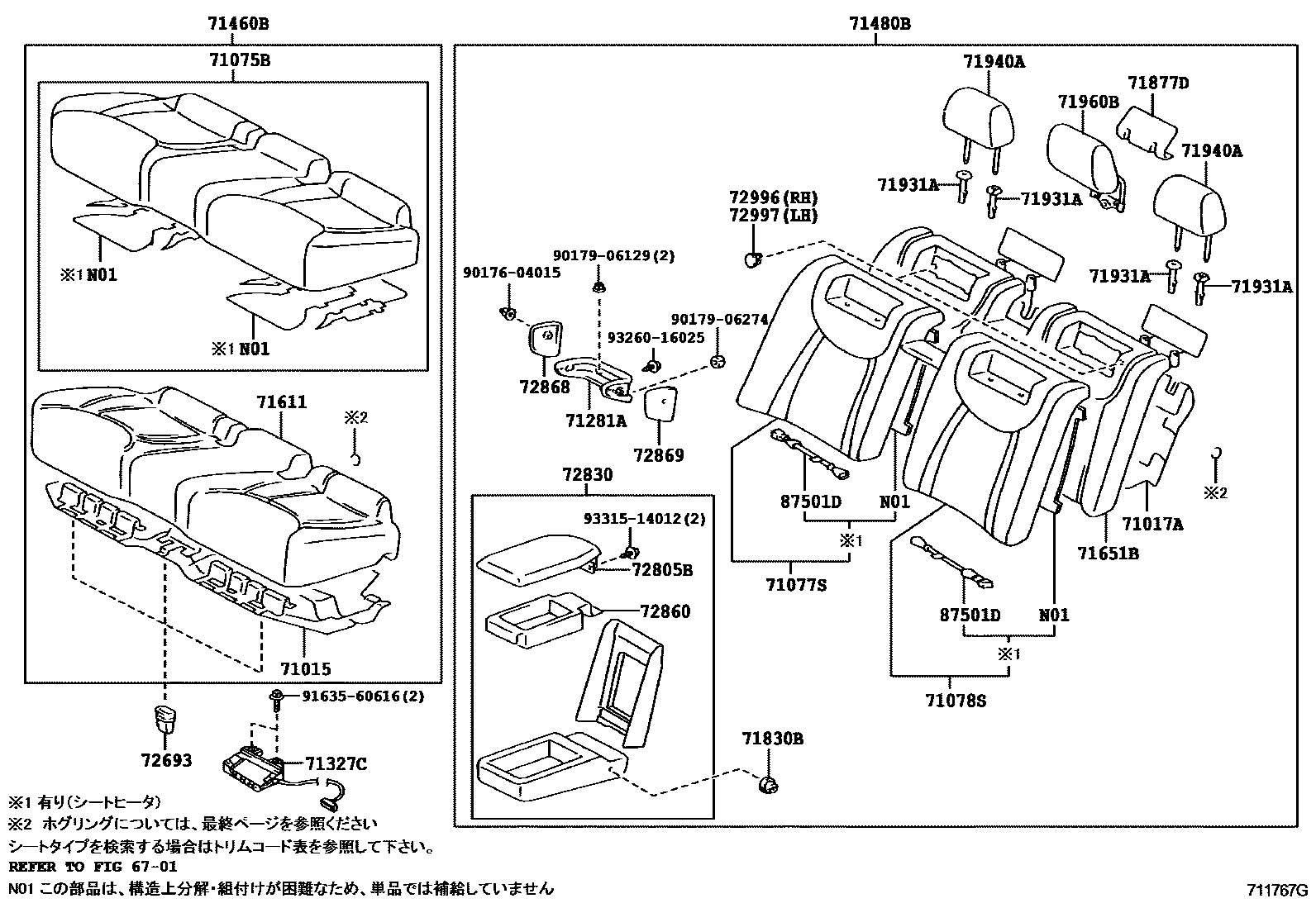

REAR SEAT & SEAT TRACK
6701
71015FRAME SUB-ASSY, REAR SEAT CUSHION
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71017AFRAME SUB-ASSY, REAR SEATBACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71281AHINGE, REAR SEAT CENTER ARMREST
71327CBRACKET, REAR SEAT CUSHION
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71830BBUSH(FOR REAR SEAT ARMREST)
71877DCOVER, REAR SEAT ARMREST HOLE
IVORY,TRIM04
ECRU,TRIM00
NEW IVORY,TRIM01,07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM20,24
71931ASUPPORT, REAR SEAT HEADREST
71960BHEADREST ASSY, REAR SEAT, CENTER
sub71960-50110
sub71960-50110
sub71960-50110
sub71960-50110
sub71960-50190
sub71960-50190
sub71960-50190
72693HOOK, REAR SEAT CUSHION LOCK
72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST
sub72805-50210
sub72805-50210
sub72805-50210
sub72805-50290
sub72805-50290
sub72805-50290
sub72805-50290
72830ARMREST ASSY, REAR SEAT, CENTER
IVORY,TRIM01,07
BLACK,TRIM20,24
72860BOX ASSY, REAR SEAT CENTER ARMREST
72868COVER, CENTER ARMREST HINGE, RH
IVORY,TRIM04
ECRU,TRIM03
NEW IVORY,TRIM01,07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM20,24
72869COVER, CENTER ARMREST HINGE, LH
IVORY,TRIM04
ECRU,TRIM00
NEW IVORY,TRIM01,07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM20,24
72996COVER, REAR SEATBACK, RH
IVORY,TRIM04
ECRU,TRIM03
NEW IVORY,TRIM01,07
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
BLACK,TRIM20,24
72997COVER, REAR SEATBACK, LH
IVORY,TRIM04
ECRU,TRIM03
NEW IVORY,TRIM01,07
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
BLACK,TRIM20,24
87501DCONTROL SUB-ASSY, SEAT HEATER
9017604015
main90176-04015
9017906129
main90179-06129
9017906274
main90179-06274
9163560616
main91635-60616
9326016025
main93260-16025
9331514012
main93315-14012
33 parts on this diagram · 8 diagrams in section
